Pipe flow and friction loss are central ideas in fluid systems, plumbing, HVAC, irrigation, and mechanical engineering design. This cheat sheet helps students connect fluid properties, pipe size, velocity, and pressure drop in one practical reference. It is useful for estimating how much energy a pump must add to move a liquid through a pipe.
Students need these tools to compare designs and understand why long, narrow, rough, or fast-flowing pipes lose more pressure.
The core relationships include Q = A v for flow rate, Re = rho v D / mu for flow regime, and h_f = f(L/D)(v^2/(2g)) for major head loss. Laminar flow has predictable friction, while turbulent flow depends on roughness and Reynolds number. Minor losses from valves, bends, entrances, and exits are often found with h_m = K v^2/(2g).
Total head loss is the sum of major and minor losses, and pressure drop can be found from Delta P = rho g h.
Key Facts
- Volumetric flow rate is Q = A v, where Q is flow rate, A is pipe cross-sectional area, and v is average fluid velocity.
- For a circular pipe, area is A = pi D^2 / 4, where D is the inside diameter of the pipe.
- Reynolds number is Re = rho v D / mu, and it predicts whether pipe flow is laminar, transitional, or turbulent.
- Laminar pipe flow usually occurs when Re < 2000, transitional flow occurs near 2000 to 4000, and turbulent flow usually occurs when Re > 4000.
- Darcy-Weisbach major head loss is h_f = f(L/D)(v^2/(2g)), where f is the Darcy friction factor and L is pipe length.
- For laminar flow in a round pipe, the Darcy friction factor is f = 64 / Re.
- Minor head loss is h_m = K v^2/(2g), where K is a loss coefficient for a fitting, valve, entrance, or exit.
- Pressure drop and head loss are related by Delta P = rho g h, where h is total head loss in meters or feet of fluid.
Vocabulary
- Volumetric flow rate
- The volume of fluid passing through a pipe per unit time, commonly measured in m^3/s, L/s, or gal/min.
- Reynolds number
- A dimensionless number that compares inertial forces to viscous forces and helps identify the flow regime.
- Friction factor
- A dimensionless value that represents resistance to flow caused by pipe wall shear and roughness.
- Head loss
- The loss of mechanical energy per unit weight of fluid, usually expressed as an equivalent height of fluid.
- Minor loss
- A head loss caused by local pipe components such as elbows, valves, tees, entrances, and exits.
- Hydraulic diameter
- An equivalent diameter used to analyze flow in non-circular channels, defined as D_h = 4A/P_w where P_w is wetted perimeter.
Common Mistakes to Avoid
- Using outside pipe diameter instead of inside diameter is wrong because flow area and velocity depend on the actual open space inside the pipe.
- Mixing Darcy and Fanning friction factors is wrong because the Darcy friction factor is four times the Fanning friction factor, which changes the calculated head loss.
- Forgetting to square velocity in v^2/(2g) is wrong because head loss increases with the square of velocity, not directly with velocity.
- Ignoring minor losses is wrong when a system has many fittings, valves, entrances, or exits because these can add a large part of the total head loss.
- Using inconsistent units is wrong because formulas such as Re = rho v D / mu and Delta P = rho g h require a consistent unit system.
Practice Questions
- 1 Water flows through a 0.050 m inside-diameter pipe at an average velocity of 2.0 m/s. Calculate the volumetric flow rate using Q = A v.
- 2 A fluid has rho = 1000 kg/m^3, mu = 0.001 Pa s, v = 1.5 m/s, and D = 0.040 m. Calculate Re and classify the flow as laminar, transitional, or turbulent.
- 3 A 30 m long pipe has D = 0.060 m, v = 2.2 m/s, f = 0.024, and g = 9.81 m/s^2. Calculate the Darcy-Weisbach major head loss.
- 4 Explain why doubling the pipe diameter can greatly reduce friction loss even if the same flow rate must pass through the pipe.

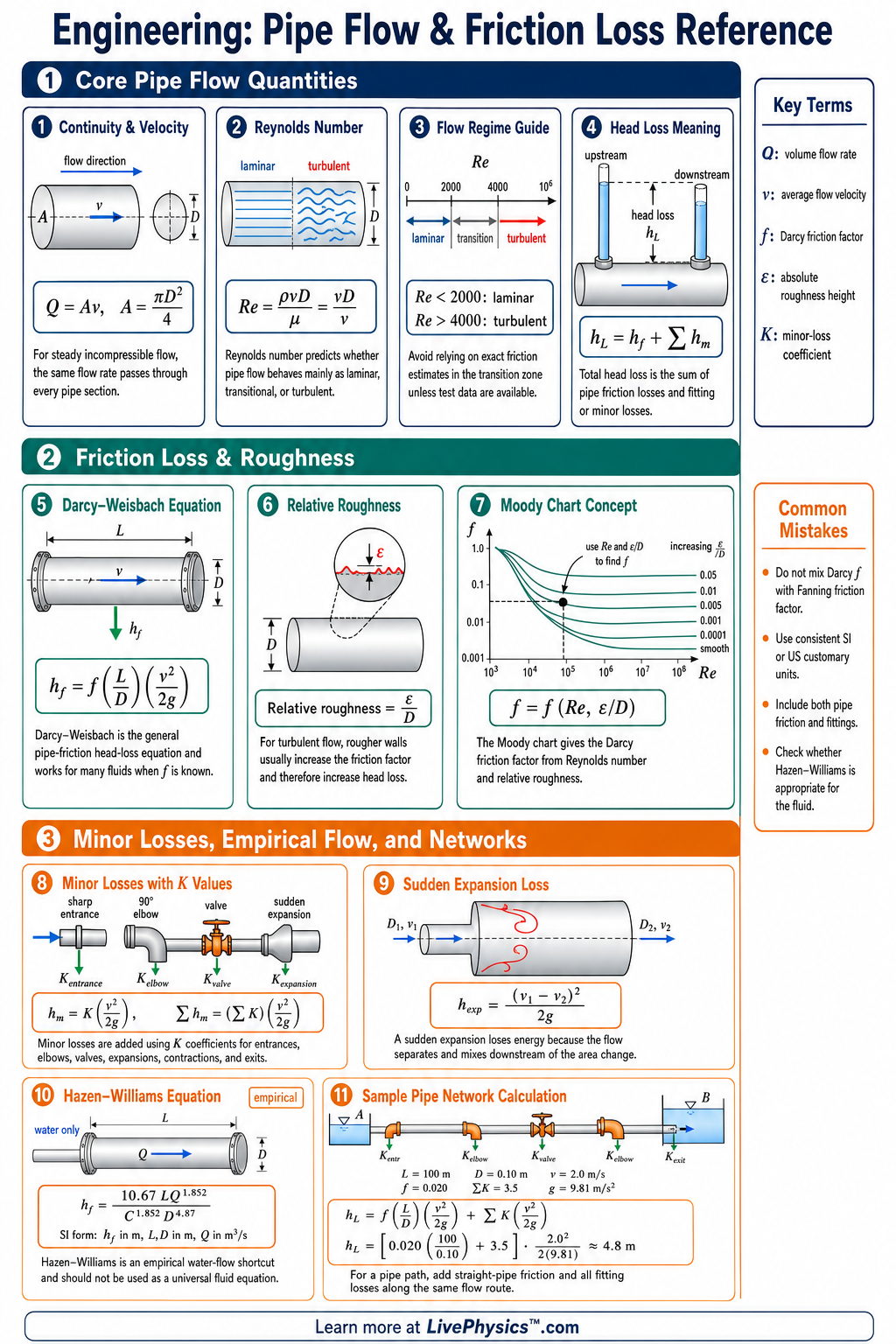

Understanding Pipe Flow & Friction Loss Reference
Head loss is best understood as energy being converted into internal motion and heat. Fluid near a pipe wall is slowed by sticking to the wall. Layers farther from the wall slide past slower layers.
This creates shear stress. In smooth, orderly laminar flow, the layers move in a stable pattern. In turbulent flow, swirls carry momentum across the pipe and increase the energy loss.
The lost energy does not mean the liquid disappears or stops moving. It means the fluid has less useful pressure energy available farther downstream. A pump, an elevated tank, or a municipal water supply must provide enough energy to overcome this loss.
Pipe diameter has an unusually strong effect because changing diameter changes velocity for the same required delivery rate. A smaller inside diameter forces fluid to move faster. Faster flow raises wall shear and makes fitting losses much larger because many losses grow with velocity squared.
This is why a pipe that seems only slightly smaller can need a much larger pump. The nominal size printed on a pipe is not always its true inside diameter. Wall thickness varies between pipe materials and pressure ratings.
Design calculations should use the actual inside diameter from a reliable table. Students should keep diameter, length, flow rate, density, and viscosity in one consistent unit system before calculating anything.
The friction factor is not a material constant. It changes with flow conditions. In turbulent flow, it depends on how rough the wall is compared with the pipe diameter.
A rough surface creates disturbances that reach into the moving fluid. The same roughness has a greater effect in a small pipe than in a large pipe because it occupies a larger fraction of the flow passage. Engineers commonly use a Moody chart or an equation based on it to estimate the Darcy friction factor.
It is important to identify whether a source uses the Darcy friction factor or the Fanning friction factor. The Darcy value is four times the Fanning value, so mixing them gives a serious error.
Fittings deserve careful attention in short systems. A long straight pipeline is often dominated by wall friction, but a compact pump room can contain elbows, valves, strainers, reducers, and meters that cause most of the loss. Each item disrupts the velocity pattern, then the flow needs distance to settle again.
Loss coefficients are estimates, not universal truths. Their values depend on fitting shape, valve position, and sometimes flow direction.
A practical calculation begins by tracing the full fluid path, listing every component, then finding total loss at the required flow rate. That total is used to choose a pump whose available head meets the system demand, with a sensible margin for aging, deposits, and changing operating conditions.
