Pumps and valves are essential parts of fluid systems in homes, factories, power plants, and water treatment facilities. A pump adds energy to a fluid so it can move through pipes, rise to higher elevations, or overcome pressure losses. Valves control where the fluid goes, how much flows, and whether the system is open or closed.
Understanding how these devices work helps students connect physics, engineering design, and real industrial systems.
In a typical pipeline network, the pump creates a pressure difference that drives flow from one location to another. As the fluid moves, friction in pipes and fittings causes head loss, so engineers must choose pumps that can provide enough energy. Different valve types serve different jobs, such as isolation, throttling, or preventing backflow.

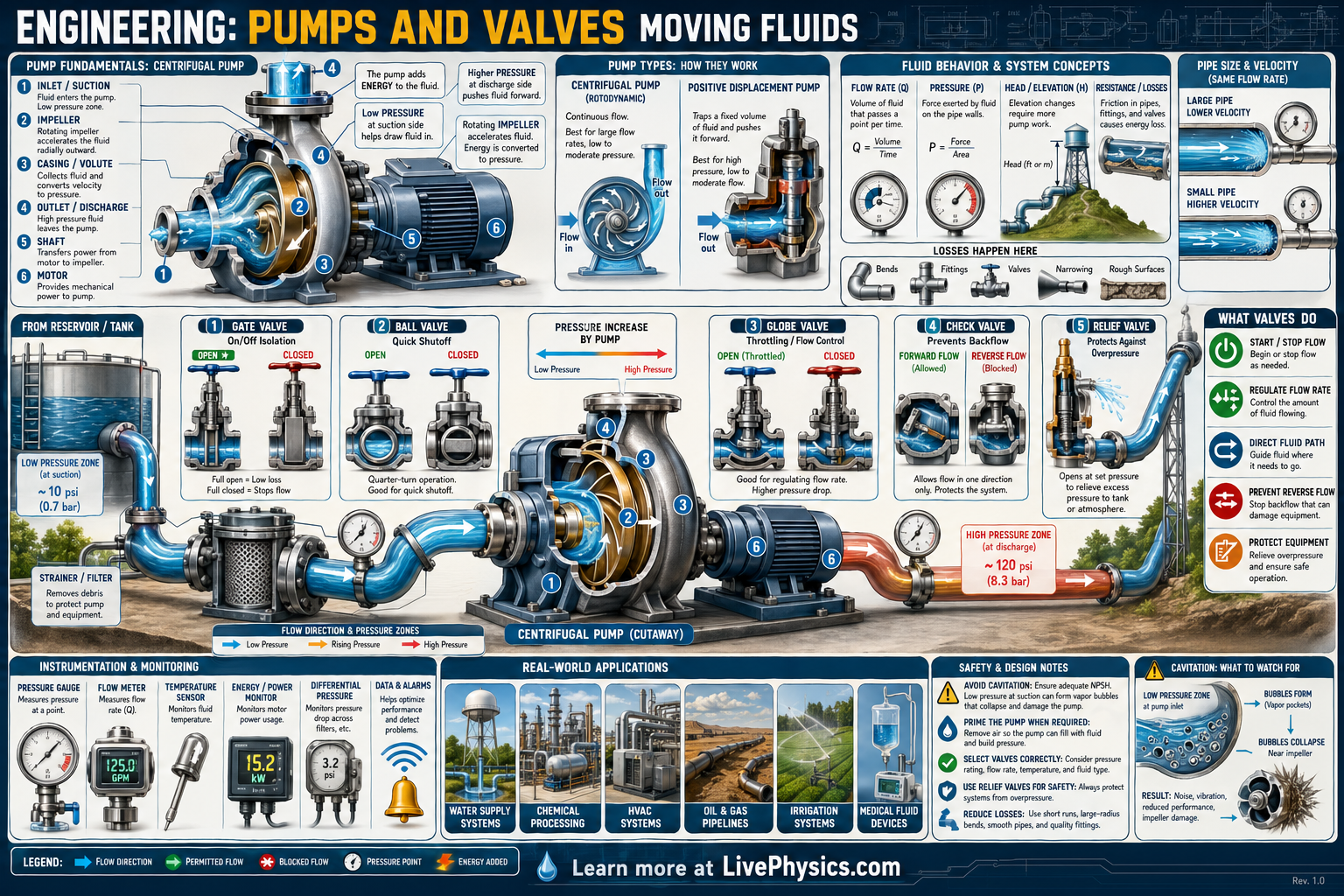

Gauges, flow arrows, and cutaway views help reveal how pressure, velocity, and mechanical motion interact inside the system.
Understanding Pumps and Valves: Moving Fluids Through Systems
Inside a centrifugal pump, an electric motor turns a wheel called an impeller. Curved blades on the impeller push liquid outward from its center. This outward motion gives the liquid speed.
The pump casing then guides the liquid through a widening passage called a volute or diffuser. In that passage, part of the liquid speed changes into pressure. The low pressure near the impeller center draws more liquid in through the suction pipe.
For this process to work well, the pump must be filled with liquid before starting. Air in the casing can prevent the pump from developing enough suction. This is why some pumps need priming.
A pump does not deliver one fixed flow rate in every installation. Its actual operating point depends on the whole pipe system. A high tank, a long narrow pipe, rough pipe walls, bends, filters, and partly closed valves all make flow harder.
Engineers compare the pump performance curve with the system curve. The point where those curves meet gives the likely flow rate and pressure rise. If resistance increases, the flow rate falls.
If a valve is opened or a cleaner pipe is installed, flow can increase. This is important because an oversized pump may waste energy or create excessive flow, while an undersized pump may fail to supply upper floors or distant equipment.
Check valves work without a motor or control signal. They open when liquid pressure on the inlet side becomes greater than pressure on the outlet side by enough to move the internal part. That part may be a swinging flap, a sliding disc, or a spring loaded ball.
When flow tries to reverse, the valve closes. Check valves are often placed after pumps because a stopped pump can allow liquid to run backward. Reverse flow can spin a pump backward and may damage its parts.
Valve closing must be considered carefully. A sudden stop in moving liquid can produce a pressure surge called water hammer.
Pipes may shake, fittings may leak, and gauges may jump. Slow closing valves, air chambers, and carefully chosen pipe routes can reduce this problem.
Pipe networks require more thought than one straight pipe. In a series path, the same flow rate passes through each section, while losses from every section add up. In parallel branches, the flow splits between routes.
The branch with lower resistance usually carries more liquid. Engineers use this idea in building water supplies, chemical plants, irrigation lines, and cooling systems. Students should trace the flow direction first, then mark pumps, tanks, valves, pipe sizes, and changes in height.
They should separate pressure from flow speed because they are related but not identical. A pressure gauge reading alone does not prove that a useful amount of liquid is moving. Measurements from pressure gauges and flow meters together give a clearer picture of what the system is doing.
Key Facts
- A pump increases fluid energy mainly by raising pressure and moving fluid through the system.
- Flow rate is Q = A v, where Q is volume flow rate, A is cross sectional area, and v is average fluid speed.
- Pressure force on an area is F = P A.
- Pump hydraulic power can be estimated by P = Delta p Q.
- Head loss in pipes often increases with speed, roughly following h_f proportional to v^2.
- Mechanical efficiency compares useful fluid power to input power: efficiency = output power / input power.
Vocabulary
- Centrifugal pump
- A pump that uses a rotating impeller to increase fluid speed and pressure.
- Valve
- A device placed in a pipe to start, stop, direct, or regulate fluid flow.
- Flow rate
- The volume of fluid passing a point each second, usually measured in m^3/s or L/s.
- Pressure
- The force per unit area exerted by a fluid on a surface.
- Head loss
- The reduction in fluid energy caused by friction and disturbances as fluid moves through a system.
Common Mistakes to Avoid
- Assuming a pump creates flow without creating pressure difference, which is wrong because flow in a real pipe system requires energy to overcome resistance and elevation changes.
- Treating all valves as interchangeable, which is wrong because gate, globe, ball, and check valves are designed for different control and safety functions.
- Ignoring head loss in long pipes, which is wrong because friction can significantly reduce pressure and change the required pump size.
- Thinking higher fluid speed always means higher pressure, which is wrong because pressure and speed trade off depending on the system and energy losses.
Practice Questions
- 1 Water flows through a pipe of cross sectional area 0.020 m^2 at an average speed of 3.0 m/s. Calculate the volume flow rate Q.
- 2 A pump raises fluid pressure by 150000 Pa while moving 0.040 m^3/s. Calculate the hydraulic power delivered to the fluid using P = Delta p Q.
- 3 A system includes a centrifugal pump, a gate valve, a globe valve, and a check valve. Explain which valve is best for stopping backflow and which valve is best for fine flow regulation, and state why.
