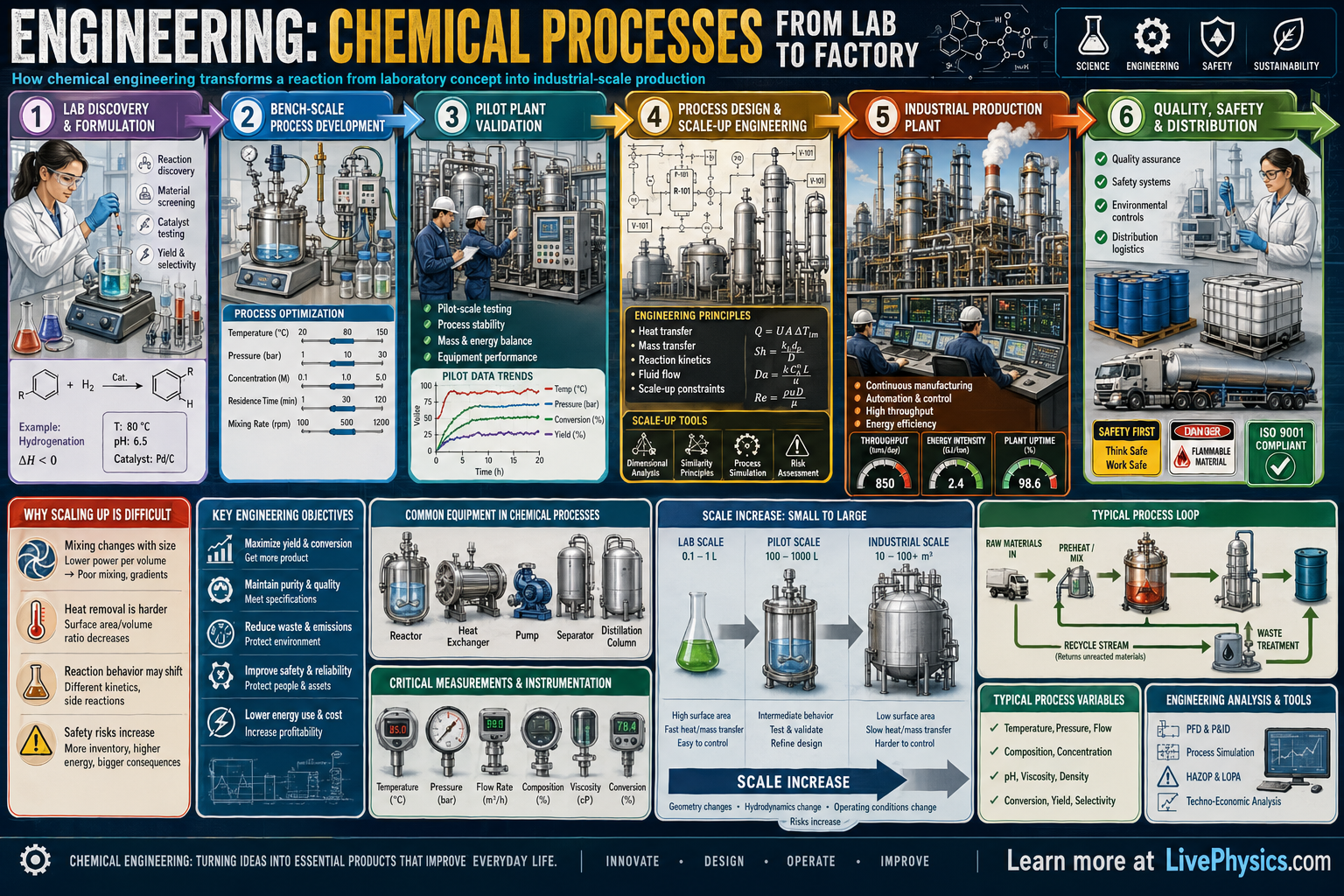

Chemical Engineering: From Lab Reaction to Factory Process
Reactors, Separation, Heat Exchange, and Safety
Related Tools
Related Labs
Related Worksheets
Chemical process engineering connects small laboratory discoveries to the large systems that make fuels, medicines, plastics, fertilizers, and clean water. A reaction that works in a beaker does not automatically work in a factory, because scale changes heat transfer, mixing, safety, cost, and waste handling. Engineers study each step so a process stays efficient, reliable, and safe as production increases. This matters because modern society depends on chemical products made at high volume with controlled quality.
The path from lab to factory usually begins with reaction testing and property measurement, then moves to pilot-scale equipment, detailed design, and full industrial operation. Engineers use mass balances, energy balances, reaction kinetics, and transport principles to predict how materials and energy move through reactors, separators, heat exchangers, and pipelines. They also choose sensors and control systems to keep temperature, pressure, and flow within safe limits. A successful scale-up produces the desired product consistently while minimizing raw material use, emissions, and operating cost.
Key Facts
- Mass is conserved in a process: mass in = mass out + accumulation
- For steady-state operation, accumulation = 0, so mass in = mass out
- Energy balance form: energy in - energy out + heat added - work done = accumulation
- Reaction rate often depends on concentration and temperature, for example rate = k[A]^n
- Residence time in a vessel can be estimated by tau = V/Q
- Conversion of a reactant can be written as X = (moles reacted)/(moles fed)
Vocabulary
- Scale-up
- Scale-up is the process of increasing a chemical operation from laboratory size to pilot or factory size while keeping performance acceptable.
- Reactor
- A reactor is a vessel or system where chemical reactions are carried out under controlled conditions.
- Pilot plant
- A pilot plant is a small industrial-style setup used to test process behavior before full commercial production.
- Heat exchanger
- A heat exchanger is equipment that transfers thermal energy between fluids without necessarily mixing them.
- Process control
- Process control is the use of sensors, feedback, and automated actions to keep variables like temperature, pressure, and flow near target values.
Common Mistakes to Avoid
- Assuming a lab reaction will behave the same way at factory scale, because larger equipment changes mixing, heat removal, and reaction time. This can lead to poor yield or unsafe temperature rise.
- Ignoring units in flow rate, concentration, or energy calculations, which causes balance equations to be inconsistent. Always convert values before solving.
- Treating steady-state and batch processes as if they use the same balance setup, which is wrong because accumulation is usually important in batch systems. Check whether material is entering and leaving continuously.
- Focusing only on product yield and forgetting separation, recycle, and waste streams, which gives an incomplete process picture. Real factories must handle purification, byproducts, and disposal.
Practice Questions
- 1 A continuous mixer receives 120 kg/h of solution A and 30 kg/h of solution B. If the system is at steady state and there is one outlet stream, what is the outlet mass flow rate?
- 2 A reactor has a volume of 2.5 m^3 and is fed at a volumetric flow rate of 0.50 m^3/min. Estimate the residence time tau in minutes.
- 3 A reaction gives excellent yield in a small flask, but when scaled up the reactor temperature rises too quickly and unwanted byproducts form. Explain which engineering factors likely changed and why a pilot plant can help.
