Heat exchangers are devices that transfer thermal energy from one fluid to another without necessarily mixing the fluids. They are essential in power plants, refrigeration systems, chemical processing, car radiators, and many other technologies. Good thermal design improves energy efficiency, lowers operating cost, and helps equipment stay safe and reliable.
Engineers use heat exchangers to control temperatures, recover waste heat, and support stable industrial operation.

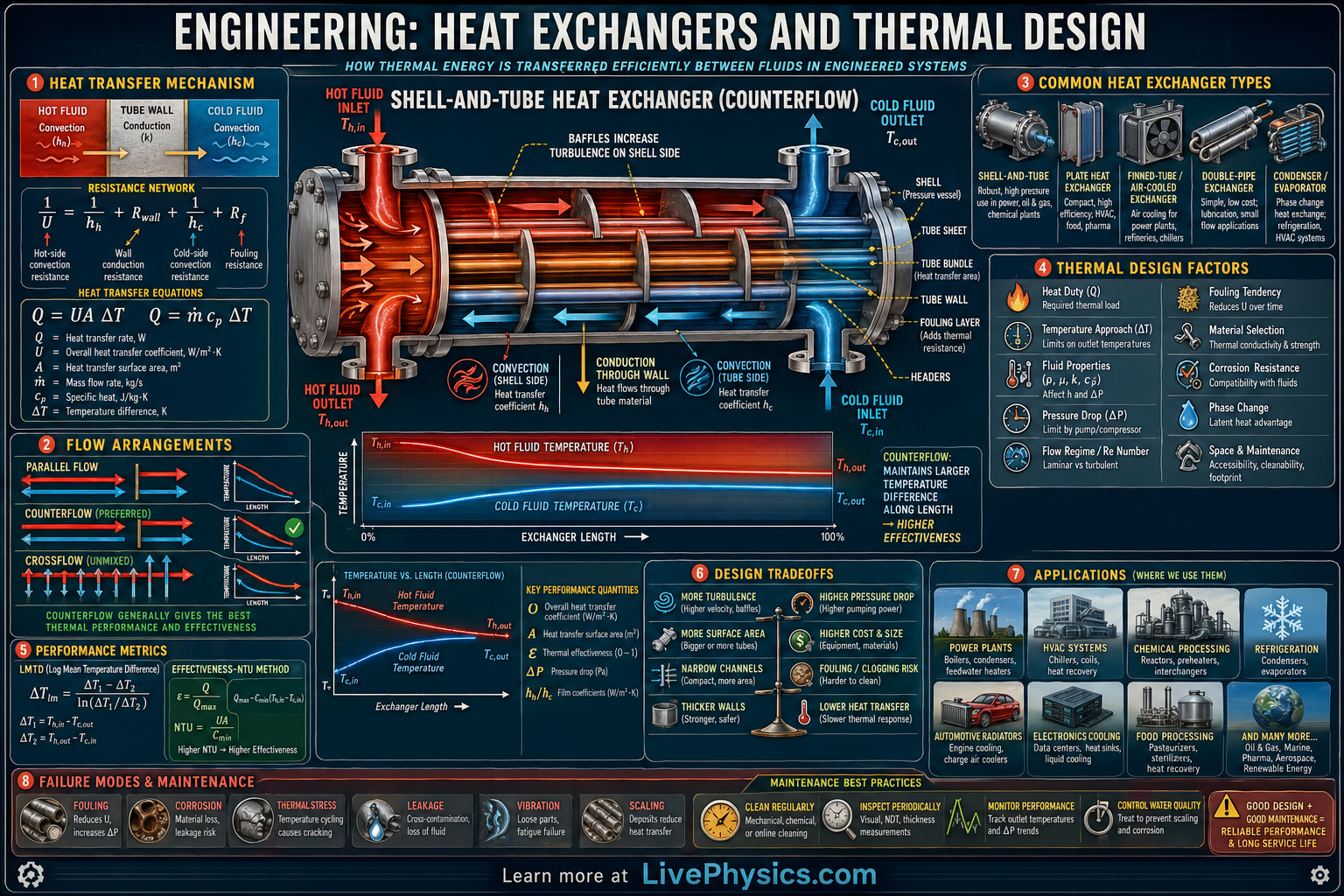

A shell-and-tube heat exchanger is one of the most common designs because it can handle high pressures and large heat loads. Hot fluid may flow through the tubes while cold fluid flows through the shell side, and heat moves through the tube walls by conduction while convection occurs on both fluid sides. Baffles inside the shell guide the flow, increase turbulence, and improve heat transfer.
Engineers evaluate performance using energy balance, temperature difference, overall heat transfer coefficient, pressure drop, and exchanger effectiveness.
Understanding Thermal Engineering: Heat Exchangers
At the surface of a tube, heat transfer is controlled by a thin layer of fluid moving slowly next to the metal. This layer acts like insulation. Faster, more disturbed flow makes the layer thinner, so heat crosses it more easily.
This is why fins, baffles, ridges, and carefully shaped channels are useful. They create turbulence or repeatedly redirect the fluid. The benefit has a limit.
Pumps and fans must work harder when passages are narrow or flow is highly turbulent. Their energy use can cancel some of the energy saved by better heat transfer. A useful design finds a practical balance between thermal performance and pumping power.
The direction of flow changes the temperature pattern through an exchanger. In parallel flow, both streams enter from the same end. The initial temperature gap is large, but it shrinks quickly as the fluids move together.
In counterflow, the streams travel in opposite directions. A useful temperature gap can remain along much more of the exchanger. This allows the outgoing cold stream to approach the incoming hot stream temperature more closely.
Counterflow is common when a large temperature change is needed, such as recovering heat from hot exhaust or preheating water for a boiler. Some real units use crossflow, where one fluid moves across the other. Car radiators and many air conditioning coils use this arrangement because air can pass through a bank of finned tubes.
The wall between the fluids must conduct heat well, resist corrosion, and survive pressure differences. Copper and aluminium transfer heat quickly, which is useful in compact radiators and electronics cooling. Stainless steel transfers heat less quickly but can be a better choice around corrosive chemicals or food products.
Wall thickness matters too. A thin wall reduces resistance to heat flow, yet it must remain strong enough for pressure, vibration, and long service.
Engineers may choose many small tubes instead of a few large ones because small tubes provide more surface area within the same volume. Fins extend surface area further, especially on the air side, where convection is usually much weaker than in flowing water.
Real exchangers gradually lose performance because of fouling. Scale from hard water, rust particles, biological growth, oil films, or soot can build up on surfaces. Even a thin deposit blocks heat much like an extra insulating layer.
It can narrow passages and raise pressure drop at the same time. Plants monitor inlet and outlet temperatures, flow rates, and pump power to spot this change early. Students should track energy using a control volume.
In steady operation, heat lost by the hot stream is approximately equal to heat gained by the cold stream, apart from losses to the surroundings. Check units carefully.
Mass flow rate is often given per second, specific heat describes energy needed for each kilogram per degree of temperature change, and the resulting heat transfer rate is power in watts. These ideas connect directly to household radiators, refrigerators, vehicle cooling systems, and heat pumps.
Key Facts
- Rate of heat transfer: Q = m_dot cp DeltaT
- Heat exchanger design equation: Q = U A DeltaT_lm
- Log mean temperature difference: DeltaT_lm = (DeltaT_1 - DeltaT_2) / ln(DeltaT_1 / DeltaT_2)
- Overall thermal resistance adds as 1 / U = 1 / h_hot + R_wall + 1 / h_cold + R_fouling
- Counterflow exchangers usually give a larger DeltaT_lm than parallel flow for the same inlet temperatures
- Increasing flow speed often increases heat transfer coefficient h, but it also increases pressure drop
Vocabulary
- Overall heat transfer coefficient
- The overall heat transfer coefficient, U, measures how easily heat passes through the combined fluid films, wall, and fouling layers.
- LMTD
- LMTD, or log mean temperature difference, is an average temperature driving force used in heat exchanger calculations.
- Fouling
- Fouling is the buildup of unwanted material on heat transfer surfaces that reduces performance.
- Baffle
- A baffle is a plate inside the shell that redirects fluid flow to improve mixing and heat transfer.
- Effectiveness
- Effectiveness is the ratio of actual heat transfer to the maximum possible heat transfer in a heat exchanger.
Common Mistakes to Avoid
- Using the simple temperature difference instead of DeltaT_lm, which is wrong because the temperature driving force changes along the exchanger length.
- Ignoring fouling resistance, which is wrong because deposits on surfaces can significantly lower U and reduce heat transfer over time.
- Assuming higher flow rate always improves design, which is wrong because pressure drop and pumping power can rise too much even if heat transfer improves.
- Mixing up parallel flow and counterflow temperature profiles, which is wrong because the arrangement changes DeltaT_lm, outlet temperatures, and overall performance.
Practice Questions
- 1 A hot water stream with m_dot = 2.0 kg/s and cp = 4180 J/kg K cools from 90 C to 70 C in a heat exchanger. Calculate the heat transfer rate Q.
- 2 A heat exchanger has U = 250 W/m^2 K, area A = 12 m^2, and DeltaT_lm = 18 K. Find the heat transfer rate Q.
- 3 Two exchangers have the same area and materials, but one uses parallel flow and the other uses counterflow. Explain which one usually transfers more heat and why.
