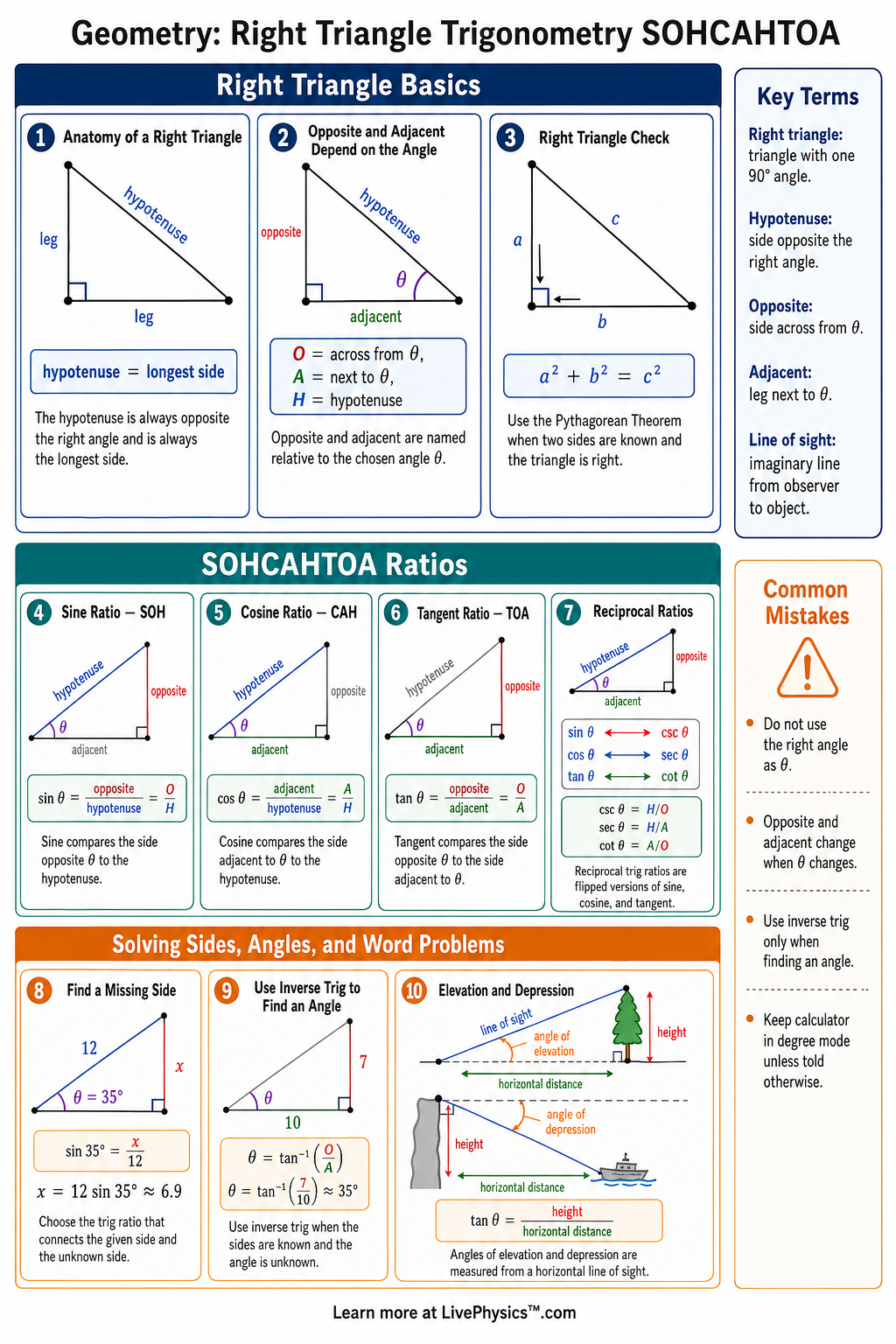

Right Triangle Trigonometry SOHCAHTOA cheat sheet - grade 8-10

Click image to open full size

Math Grade 8-10

Right Triangle Trigonometry SOHCAHTOA Cheat Sheet

A printable reference covering SOHCAHTOA, sine, cosine, tangent, angle ratios, inverse trig, and missing side lengths for grades 8-10.

TopicsTrigonometryFunctionsRatios and ProportionsShapesMathematicsStudy Guide
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Right triangle trigonometry connects angle measures to side lengths in triangles that contain a 90∘90^\circ angle. This cheat sheet helps students identify the opposite, adjacent, and hypotenuse sides before choosing a trig ratio. It is useful for solving missing sides, finding missing angles, and checking work on geometry problems.

SOHCAHTOA gives a quick memory tool for the three main right triangle ratios.

Key Facts

  • In a right triangle, the hypotenuse is always the side opposite the 90∘90^\circ angle and is the longest side.
  • For an acute angle θ\theta, sin⁡(θ)=oppositehypotenuse\sin(\theta)=\frac{\text{opposite}}{\text{hypotenuse}}.
  • For an acute angle θ\theta, cos⁡(θ)=adjacenthypotenuse\cos(\theta)=\frac{\text{adjacent}}{\text{hypotenuse}}.
  • For an acute angle θ\theta, tan⁡(θ)=oppositeadjacent\tan(\theta)=\frac{\text{opposite}}{\text{adjacent}}.
  • SOHCAHTOA means sin⁡=OH\sin=\frac{O}{H}, cos⁡=AH\cos=\frac{A}{H}, and tan⁡=OA\tan=\frac{O}{A}.
  • To solve for a missing side, set up the correct ratio, substitute known values, then use algebra to isolate the variable.
  • To solve for a missing angle, use inverse trig such as θ=sin⁡−1(OH)\theta=\sin^{-1}\left(\frac{O}{H}\right), θ=cos⁡−1(AH)\theta=\cos^{-1}\left(\frac{A}{H}\right), or θ=tan⁡−1(OA)\theta=\tan^{-1}\left(\frac{O}{A}\right).
  • Trigonometric ratios depend on the chosen angle, so the opposite and adjacent sides can change when a different acute angle is used.

Vocabulary

Right triangle
A triangle with one angle measuring exactly 90∘90^\circ.
Hypotenuse
The side opposite the 90∘90^\circ angle and the longest side of a right triangle.
Opposite side
The side across from the acute angle being used in a trigonometric ratio.
Adjacent side
The leg next to the acute angle being used, not including the hypotenuse.
Sine
A trig ratio defined by sin⁡(θ)=oppositehypotenuse\sin(\theta)=\frac{\text{opposite}}{\text{hypotenuse}} in a right triangle.
Inverse trigonometric function
A function such as sin⁡−1\sin^{-1}, cos⁡−1\cos^{-1}, or tan⁡−1\tan^{-1} used to find an angle from a side ratio.

Common Mistakes to Avoid

  • Using the wrong reference angle is wrong because opposite and adjacent are named relative to the angle θ\theta, not relative to the whole triangle.
  • Calling a leg the hypotenuse is wrong because the hypotenuse must be across from the 90∘90^\circ angle and is always the longest side.
  • Using tan⁡(θ)=adjacentopposite\tan(\theta)=\frac{\text{adjacent}}{\text{opposite}} is wrong because tangent is tan⁡(θ)=oppositeadjacent\tan(\theta)=\frac{\text{opposite}}{\text{adjacent}}.
  • Forgetting inverse trig when finding an angle is wrong because ratios like OH\frac{O}{H} give a trig value, while sin⁡−1(OH)\sin^{-1}\left(\frac{O}{H}\right) gives the angle.
  • Leaving the calculator in radian mode is wrong for degree problems because angles such as 30∘30^\circ, 45∘45^\circ, and 60∘60^\circ require degree mode.

Practice Questions

  1. 1 In a right triangle, an acute angle is 35∘35^\circ and the hypotenuse is 1212 cm. Find the side opposite the 35∘35^\circ angle using sin⁡(35∘)=x12\sin(35^\circ)=\frac{x}{12}.
  2. 2 A right triangle has an angle θ\theta with opposite side 99 and adjacent side 1212. Find θ\theta using θ=tan⁡−1(912)\theta=\tan^{-1}\left(\frac{9}{12}\right).
  3. 3 A ladder makes a 70∘70^\circ angle with the ground and reaches 1818 ft up a wall. Write the trig equation needed to find the ladder length LL.
  4. 4 Explain why the labels opposite and adjacent can change when you switch from one acute angle to the other in the same right triangle.

Understanding Right Triangle Trigonometry SOHCAHTOA

The useful idea behind trigonometry is similarity. Two right triangles can have different sizes but the same acute angle. Their matching sides grow by the same scale factor.

Because of this, the comparison between two side lengths stays constant. A certain angle always has the same sine, cosine, and tangent values, no matter how large the triangle is.

Tables and calculator buttons store these fixed comparisons. This is why one measured angle and one measured length can describe parts of a triangle that were not directly measured.

Start each problem by marking the angle you are using. The labels opposite and adjacent are not permanent names for the sides. They describe each side's position relative to that one selected angle.

If attention shifts to the other acute angle, those two labels switch places. The hypotenuse does not switch. A clear sketch prevents many errors.

Circle the selected angle, locate the right angle, label the hypotenuse first, then label the remaining sides. Next, list what is known and what must be found. This makes the correct ratio easier to choose than relying on memory alone.

When finding a missing side, the unknown may begin in a denominator. Use ordinary algebra to rearrange the equation before entering values in a calculator. For example, if a ratio says a known length divided by an unknown length equals a decimal, multiplication can move the unknown out of the denominator.

Keep extra calculator digits until the final answer, then round only as instructed. When finding an angle, inverse sine, inverse cosine, and inverse tangent undo the matching trig operation. The small negative one on a calculator means inverse here.

It does not mean a negative angle. Calculator mode matters too.

Most school geometry problems use degree mode. Radian mode can produce a number that looks reasonable but is wrong for the question.

Trigonometry models indirect measurement. A surveyor can estimate the height of a tree from a measured distance on the ground and an angle of elevation. Builders use slopes when planning ramps, roofs, and stairs.

Maps, video games, and engineering drawings use horizontal and vertical distances in similar ways. In real measurements, the ground may not be level and the measuring tool may be held above the ground, so the result needs careful interpretation. Check every answer for sense.

A side cannot be longer than the hypotenuse. An angle in a right triangle must be less than 90 degrees.

A steep angle should produce a larger vertical rise than a shallow angle over the same horizontal distance. The Pythagorean theorem gives another useful check when all three side lengths are available.
