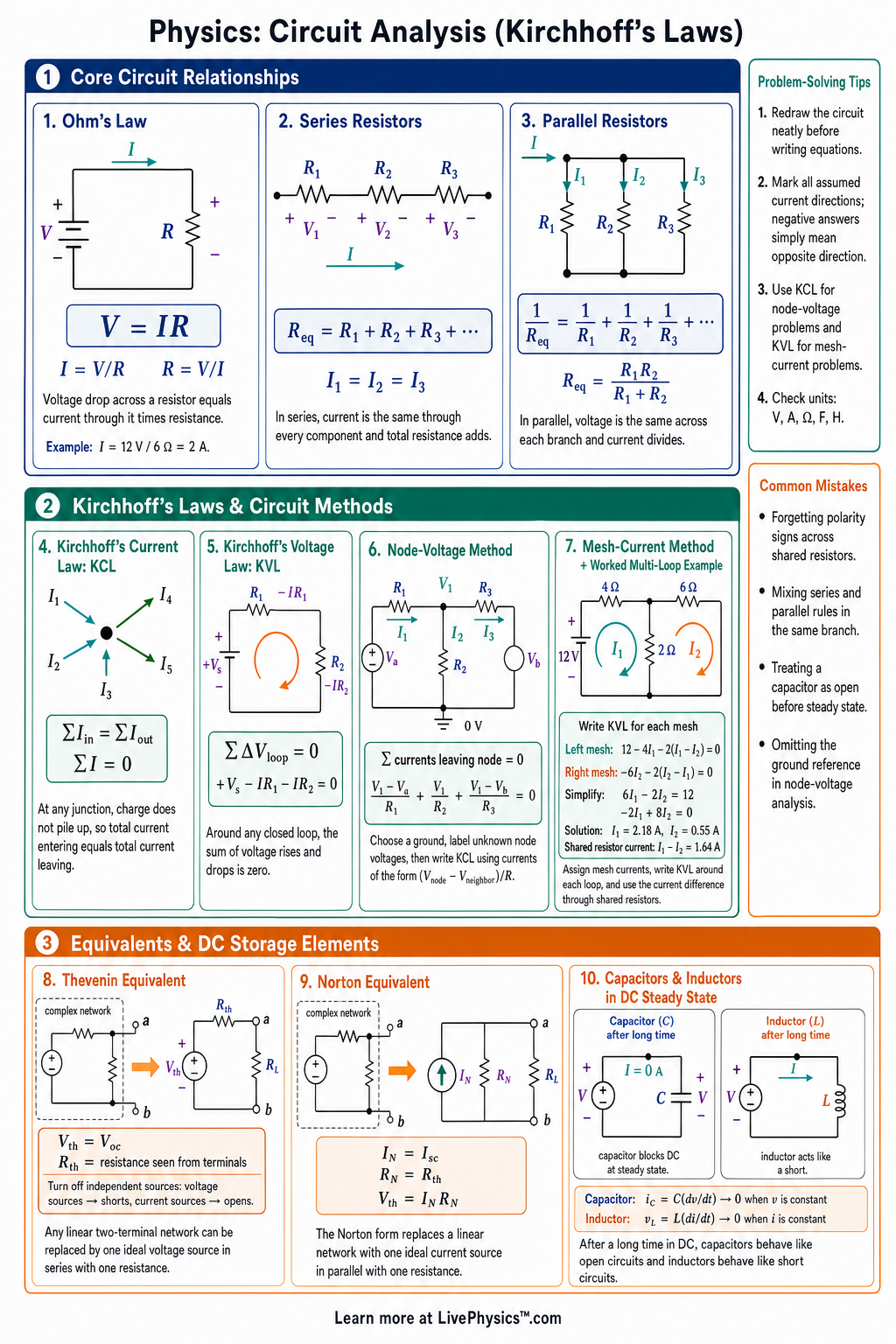

Kirchhoff's laws are used to analyze electric circuits with multiple loops and junctions. This cheat sheet helps students organize current, voltage, and resistance relationships in circuits that cannot be solved by simple series or parallel rules alone. It is especially useful for setting up equations clearly before solving for unknown currents or voltages.
The core ideas are conservation of charge and conservation of energy. Kirchhoff's current law says the total current entering a junction equals the total current leaving it. Kirchhoff's voltage law says the total potential difference around any closed loop is zero.
These laws are usually combined with Ohm's law, , and power formulas such as .
Key Facts
- Kirchhoff's current law states that the sum of currents entering a junction equals the sum of currents leaving it, so .
- Kirchhoff's voltage law states that the algebraic sum of voltage changes around any closed loop is zero, so .
- Ohm's law connects voltage, current, and resistance using .
- For a resistor, moving in the direction of conventional current gives a voltage drop of .
- For a resistor, moving opposite the direction of conventional current gives a voltage rise of .
- Moving through a battery from the negative terminal to the positive terminal gives a voltage rise of .
- Moving through a battery from the positive terminal to the negative terminal gives a voltage drop of .
- Electric power can be calculated using , , or .
Vocabulary
- Junction
- A junction is a point in a circuit where three or more conducting paths meet.
- Loop
- A loop is any closed path in a circuit that starts and ends at the same point.
- Conventional current
- Conventional current is the direction positive charge would move, from higher electric potential to lower electric potential through a resistor.
- Voltage drop
- A voltage drop is a decrease in electric potential, often written as across a resistor in the direction of current.
- Electromotive force
- Electromotive force, or emf, is the energy supplied per unit charge by a source such as a battery, represented by .
- Algebraic sum
- An algebraic sum includes positive and negative signs, so voltage rises and voltage drops must be added with their correct signs.
Common Mistakes to Avoid
- Ignoring current directions is wrong because Kirchhoff equations depend on chosen sign conventions. If a solved current is negative, it means the real current flows opposite your assumed direction.
- Writing without signs is confusing because currents entering and leaving a junction must be assigned opposite signs. A clear form is .
- Forgetting voltage signs across resistors is wrong because a resistor causes a drop only when traveling with the current. Use with current and against current.
- Treating every circuit as simple series or parallel is wrong because multi-loop circuits often need Kirchhoff's laws. Check whether components share the same current or the same voltage before combining them.
- Using power formulas with mismatched values is wrong because needs the current through that resistor and needs the voltage across that resistor.
Practice Questions
- 1 At a junction, currents of and enter, while one current of leaves. What is the other leaving current?
- 2 A loop contains a battery and two series resistors, and . Use Kirchhoff's voltage law to find the current.
- 3 A current of passes through a resistor. Find the voltage drop and the power dissipated by the resistor.
- 4 Why does Kirchhoff's voltage law follow from conservation of energy in a closed circuit loop?
Understanding Circuit Analysis (Kirchhoff's Laws)
A circuit diagram is a model, not a picture of every electron moving through a wire. The useful first step is to label each branch current with an arrow. The arrow is only a chosen reference direction.
It does not need to be correct at first. After solving the equations, a negative current value means the real current moves opposite to the arrow. This is normal and does not mean the calculation failed.
Keeping chosen directions visible prevents many sign mistakes. Label voltages across components too, especially when a circuit has more than one battery or a shared resistor.
For a multi-loop circuit, choose independent loops that cover the circuit without creating unnecessary duplicate equations. Walk around each loop in one chosen direction and record every potential change in the order encountered. A battery raises or lowers electric potential depending on the direction of travel.
A resistor changes potential according to the current through that particular resistor. Shared components need special care. If two loop currents pass through one shared resistor in opposite directions, the actual branch current is found from their difference.
If they pass in the same direction, their effects add. This is why writing a clear current label before substituting numbers matters.
A reliable solving routine is to count the unknown currents first. Then write one junction equation where it gives new information and enough loop equations to match the remaining unknowns. Simplify the simultaneous equations before reaching for a calculator.
Units provide a useful error check. Current is measured in amperes, resistance in ohms, voltage in volts, and power in watts. A result with an impossible unit usually shows that a formula was used in the wrong form.
It is worth checking the final answers by placing them back into every junction and loop equation. Each check should balance apart from small rounding differences.
Students meet these ideas in household wiring, car electrical systems, phone chargers, and electronics boards. Real circuits add details that ideal textbook diagrams often ignore. Batteries have internal resistance, wires have small resistance, and devices can heat up as current flows.
Power calculations explain why a thin wire can become hot when too much current passes through it. They also explain why resistors have power ratings.
A component may have the correct resistance yet still fail if it must dissipate more energy each second than it can safely release as heat. When learning circuit analysis, separate the physical circuit from the symbols on paper, follow one sign convention consistently, and treat every unexpected negative answer as information about direction.
