The Hertzsprung Russell diagram is one of the most important tools in astronomy because it organizes stars by luminosity and surface temperature. By plotting many stars on the same graph, astronomers can see clear patterns instead of a random scatter of points. These patterns reveal how stars differ in size, energy output, and stage of life.
The diagram helps connect simple observations like color and brightness to the physics happening inside a star.

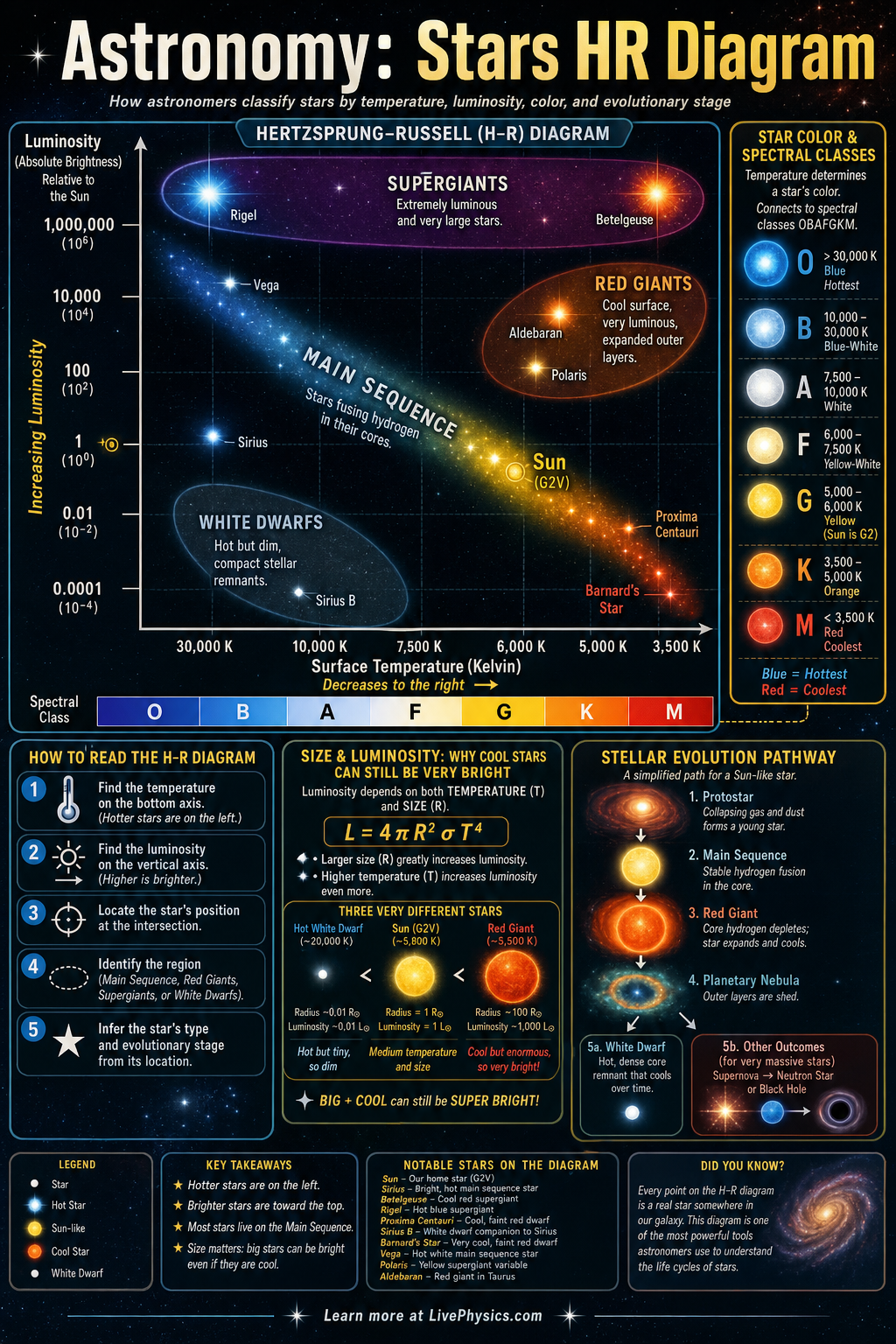

On an H R diagram, luminosity increases upward while surface temperature usually decreases from left to right, so the hottest stars are on the left. Most stars lie on the main sequence, where they spend most of their lives fusing hydrogen into helium in their cores. Giants and supergiants appear above the main sequence because they are very luminous, while white dwarfs sit below it because they are hot but small and dim.
A star's position on the diagram gives clues about its mass, radius, temperature, and evolutionary state.
Understanding Stars and the H-R Diagram
A star reaches its place on this diagram through measurements, not by direct inspection of its surface. Astronomers collect its spectrum by spreading starlight into colors. Dark absorption lines in that spectrum reveal surface temperature and chemical features.
The sequence of spectral classes O, B, A, F, G, K, and M runs from hotter to cooler stars. A star’s color gives a useful first estimate, though dust between Earth and the star can make it look redder and fainter than it really is. Distance is equally important.
A nearby faint star can appear brighter in the sky than a distant luminous star. Parallax measurements, which use Earth’s changing viewpoint during its orbit, help astronomers find distance and calculate true luminosity.
The graph follows a physical rule about glowing surfaces. A larger surface releases more light at the same temperature. A hotter surface releases much more light, because the energy output rises with the fourth power of temperature.
This explains some surprising positions. A red giant may have a cool surface but shine strongly because its radius has expanded enormously. A white dwarf can have a very hot surface while producing little total light because its radius is close to Earth’s radius.
When reading a plotted point, students should avoid treating color as a direct measure of brightness. Color mainly tracks temperature, while luminosity depends on both temperature and size.
A star does not stay fixed at one location forever. Its path is controlled mainly by mass. A low mass star burns fuel slowly and can remain stable for an extremely long time.
A high mass star has stronger gravity pressing its core inward. That creates a hotter core, so nuclear fusion occurs far faster. Such stars use their available fuel quickly despite beginning with much more of it.
When core hydrogen becomes scarce, the balance between gravity and outward pressure changes. The outer layers can expand, the surface cools, and the star moves toward the giant region.
The exact later path depends on mass. Sun-like stars eventually leave white dwarfs, while the most massive stars can end in supernova explosions and compact remnants.
Star clusters provide especially clear evidence for these life stages. The stars in a cluster formed from nearly the same cloud at nearly the same time and lie at roughly one distance from Earth. Their different positions therefore mostly reflect differences in mass and later evolution.
In a young cluster, massive bright stars still occupy the upper part of the main sequence. In an older cluster, those stars have already evolved away. The point where stars begin leaving the main sequence is called the turnoff.
Its location lets astronomers estimate a cluster’s age. This is a useful learning check. Read both axes carefully, remember that the temperature direction is reversed from many ordinary graphs, and connect every star position to a reason involving mass, radius, fuel use, or age.
Key Facts
- The main sequence is the diagonal band where stars spend most of their lifetimes fusing hydrogen in their cores.
- Luminosity, radius, and temperature are related by L = 4πR^2σT^4.
- Hot blue stars are found on the left side of the H R diagram, while cool red stars are on the right side.
- Absolute magnitude and luminosity are related by m1 - m2 = -2.5 log10(F1/F2) for flux, and a similar logarithmic scale is used for brightness comparisons.
- White dwarfs are hot but faint because they have very small radii, while giants are cool but bright because they have very large radii.
- A star's mass strongly affects its main sequence position, with more massive stars generally hotter, brighter, and shorter lived.
Vocabulary
- Luminosity
- Luminosity is the total energy a star emits each second.
- Surface temperature
- Surface temperature is the temperature of a star's outer visible layer, usually measured in kelvin.
- Main sequence
- The main sequence is the region of the H R diagram where stars spend most of their lives fusing hydrogen in their cores.
- White dwarf
- A white dwarf is a small, dense stellar remnant that is hot but has low luminosity because of its tiny size.
- Absolute magnitude
- Absolute magnitude is a measure of a star's true brightness at a standard distance.
Common Mistakes to Avoid
- Reading temperature left to right as increasing, which is wrong because the H R diagram usually places hotter stars on the left and cooler stars on the right.
- Assuming brighter stars must always be hotter, which is wrong because a cool giant can be very luminous if its radius is large.
- Confusing apparent brightness with luminosity, which is wrong because apparent brightness depends on distance while luminosity is the star's actual power output.
- Thinking stars move randomly on the diagram, which is wrong because their positions change in predictable ways as they evolve through stages like main sequence, giant, and white dwarf.
Practice Questions
- 1 Star A and Star B have the same surface temperature, but Star A has 100 times the luminosity of Star B. Using L = 4πR^2σT^4, how many times larger is the radius of Star A?
- 2 A star has a surface temperature of 10000 K and a radius 2 times the Sun's radius. Compared with the Sun, whose temperature is about 5800 K, what is the star's luminosity in solar units using L/Lsun = (R/Rsun)^2(T/Tsun)^4?
- 3 A white dwarf and a red giant can have very different positions on the H R diagram even if one is hotter than the other. Explain how radius helps account for their different luminosities.
