Astronomy Grade 7-9

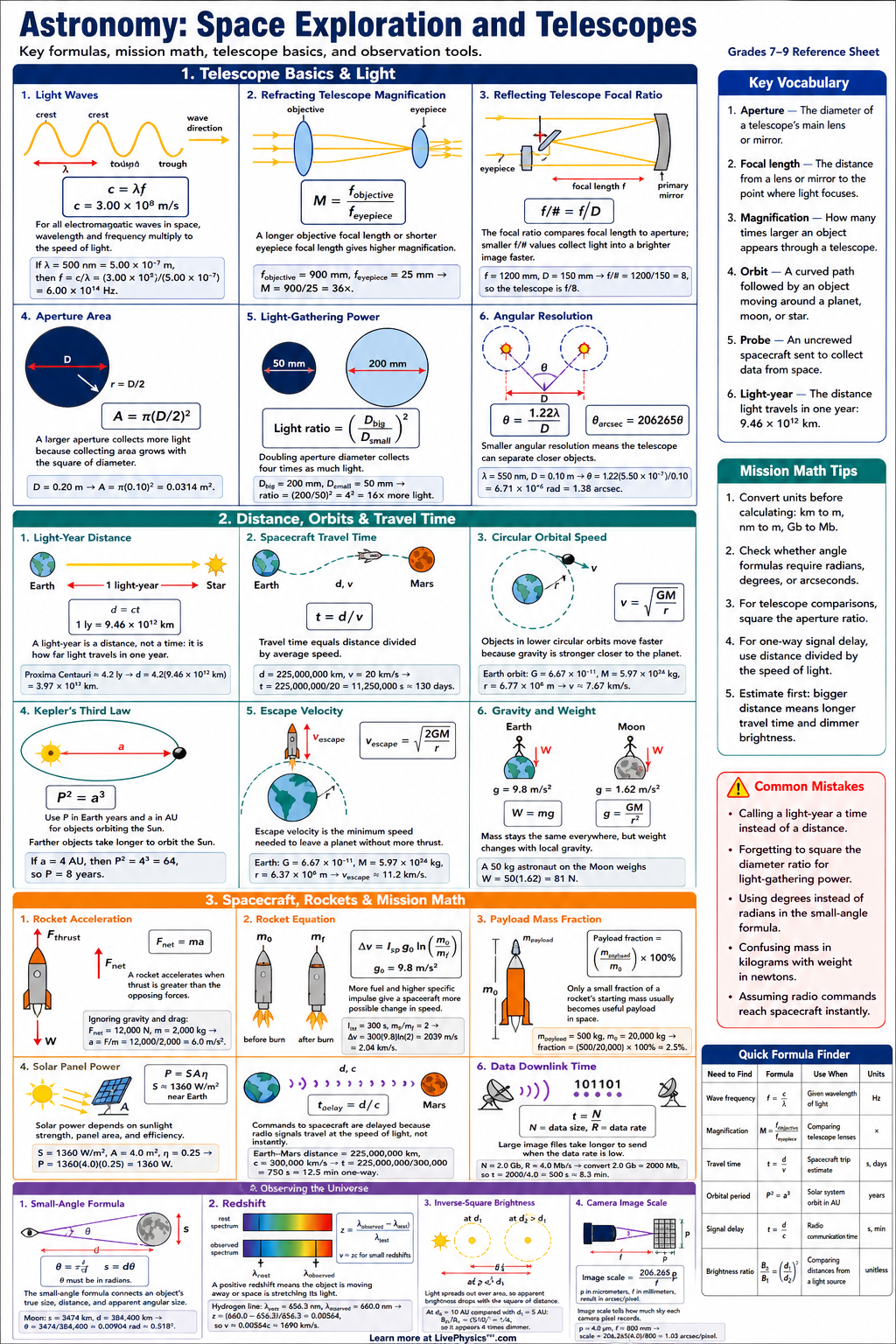

Space Exploration and Telescopes Cheat Sheet

A printable reference covering telescope types, light waves, magnification, resolution, orbits, probes, and space exploration tools for grades 7-9.

Download PNG

Space exploration and telescopes help scientists study objects that are too far away to visit directly. This cheat sheet covers how telescopes collect light, how spacecraft travel through space, and how astronomers use data from different kinds of missions. Students need these ideas to understand how we learn about planets, stars, galaxies, and the universe beyond Earth. It also connects astronomy to waves, motion, engineering, and measurement.

Key Facts

  • A telescope with a larger aperture collects more light, so it can show fainter objects than a telescope with a smaller aperture.
  • Telescope magnification is calculated by magnification = focal length of objective / focal length of eyepiece.
  • Angular resolution is the ability to separate two close objects, and better resolution means smaller details can be seen.
  • Light-year is a distance unit, and 1 light-year is the distance light travels in one year, about 9.46 trillion km.
  • Wave speed is calculated by v = f x wavelength, where v is wave speed, f is frequency, and wavelength is the distance between crests.
  • Escape velocity is the minimum speed needed to leave a planet or moon without more thrust.
  • A satellite stays in orbit because its forward motion and the pull of gravity combine to make it continuously fall around a body.
  • Robotic probes can fly by, orbit, land on, or rove across another world to collect images, chemical data, and environmental measurements.

Vocabulary

Aperture
The opening or main mirror diameter of a telescope that determines how much light it can collect.
Refracting Telescope
A telescope that uses lenses to bend and focus light into an image.
Reflecting Telescope
A telescope that uses mirrors to reflect and focus light into an image.
Electromagnetic Spectrum
The full range of light energy, including radio waves, infrared, visible light, ultraviolet, X-rays, and gamma rays.
Orbit
The curved path of an object moving around a planet, moon, star, or other body because of gravity.
Space Probe
An uncrewed spacecraft sent to collect data from space or from another planet, moon, asteroid, or comet.

Common Mistakes to Avoid

  • Confusing magnification with light gathering is wrong because high magnification does not make a dim telescope collect more light.
  • Thinking all telescopes use visible light is wrong because radio, infrared, ultraviolet, X-ray, and gamma-ray telescopes detect different parts of the electromagnetic spectrum.
  • Using diameter and radius interchangeably is wrong because aperture is usually given as diameter, while many area calculations require radius.
  • Assuming a spacecraft in orbit has no gravity is wrong because gravity is what keeps the spacecraft moving in a curved path.
  • Forgetting that a light-year is distance is wrong because it measures how far light travels, not how much time has passed.

Practice Questions

  1. 1 A telescope has an objective focal length of 900 mm and an eyepiece focal length of 15 mm. What is its magnification?
  2. 2 Light from a star takes 4.3 years to reach Earth. About how many light-years away is the star?
  3. 3 A radio wave has a frequency of 100,000,000 Hz and travels at 300,000,000 m/s. What is its wavelength using v = f x wavelength?
  4. 4 Why might astronomers put a telescope in space instead of using only telescopes on Earth's surface?
