How Video Calls Work
Video Calls
Related Tools
Related Labs
Related Worksheets

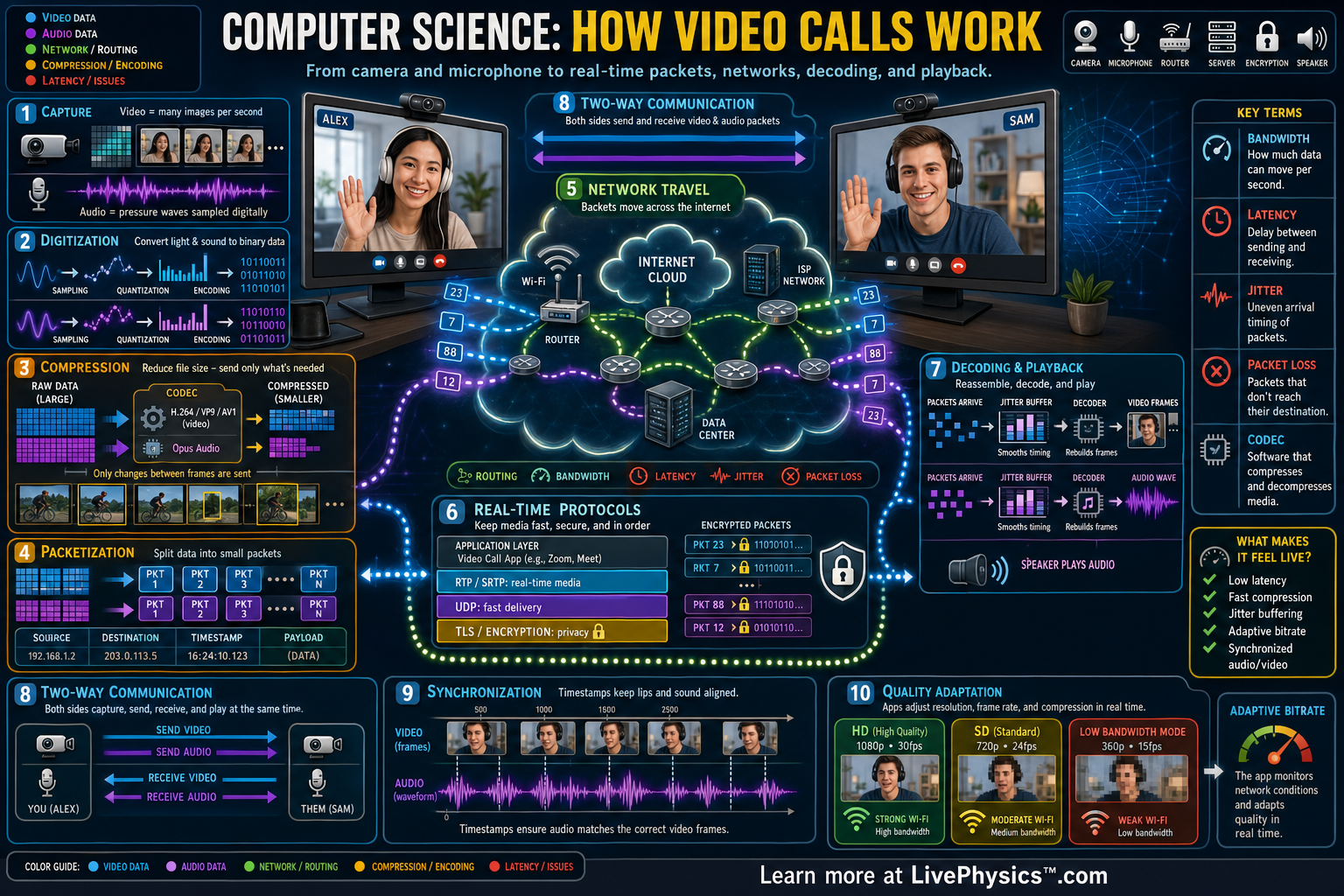

A video call turns light and sound from one person into digital data that can travel across the internet and be rebuilt on another person’s screen and speakers. It matters because the process must happen fast enough that conversation feels natural. Behind every smooth call are cameras, microphones, codecs, packets, routers, servers, and timing systems working together. The main challenge is sending a lot of information with low delay, even when networks are busy or unreliable.
The camera captures frames and the microphone samples sound, then software compresses both streams to reduce the number of bits that must be sent. The compressed data is split into packets, labeled with addressing and timing information, and routed across the network through many possible paths. At the receiver, packets are reordered, decoded, synchronized, and played back as video and audio. Good video call systems constantly adjust quality, bitrate, and buffering to balance clarity, delay, and stability.
Key Facts
- Video bitrate = file size or data sent / time, often measured in bits per second.
- Frame rate measures how many video images are shown each second, such as 30 fps.
- Audio sampling rate gives samples per second, such as 48,000 Hz for 48 kHz audio.
- Latency = capture time + encoding time + network delay + decoding time + playback buffer time.
- Packet loss rate = lost packets / total sent packets x 100%.
- Compression removes redundancy so fewer bits are needed, but too much compression can reduce quality.
Vocabulary
- Codec
- A codec is software or hardware that compresses and decompresses audio or video data.
- Packet
- A packet is a small labeled chunk of data sent across a network.
- Latency
- Latency is the time delay between sending information and receiving or seeing its effect.
- Bandwidth
- Bandwidth is the amount of data a network connection can carry per second.
- Jitter
- Jitter is variation in packet arrival times that can make audio or video uneven.
Common Mistakes to Avoid
- Confusing bandwidth with latency. A connection can carry many bits per second but still have a long delay.
- Assuming video calls send one continuous file. Calls usually split audio and video into many small packets that may take different paths.
- Ignoring compression when estimating data use. Raw camera data is far too large for most real time internet calls, so codecs are essential.
- Thinking packet loss always stops a call. Many systems can hide small losses using buffering, prediction, retransmission, or error correction.
Practice Questions
- 1 A video stream uses 2.5 megabits per second for 12 minutes. How many megabits of video data are sent?
- 2 A microphone samples audio at 48,000 samples per second. How many samples are captured in 5 seconds?
- 3 A call has enough bandwidth but the speakers keep talking over each other because responses arrive late. Explain which network property is most likely causing the problem and why increasing video resolution would not fix it.
