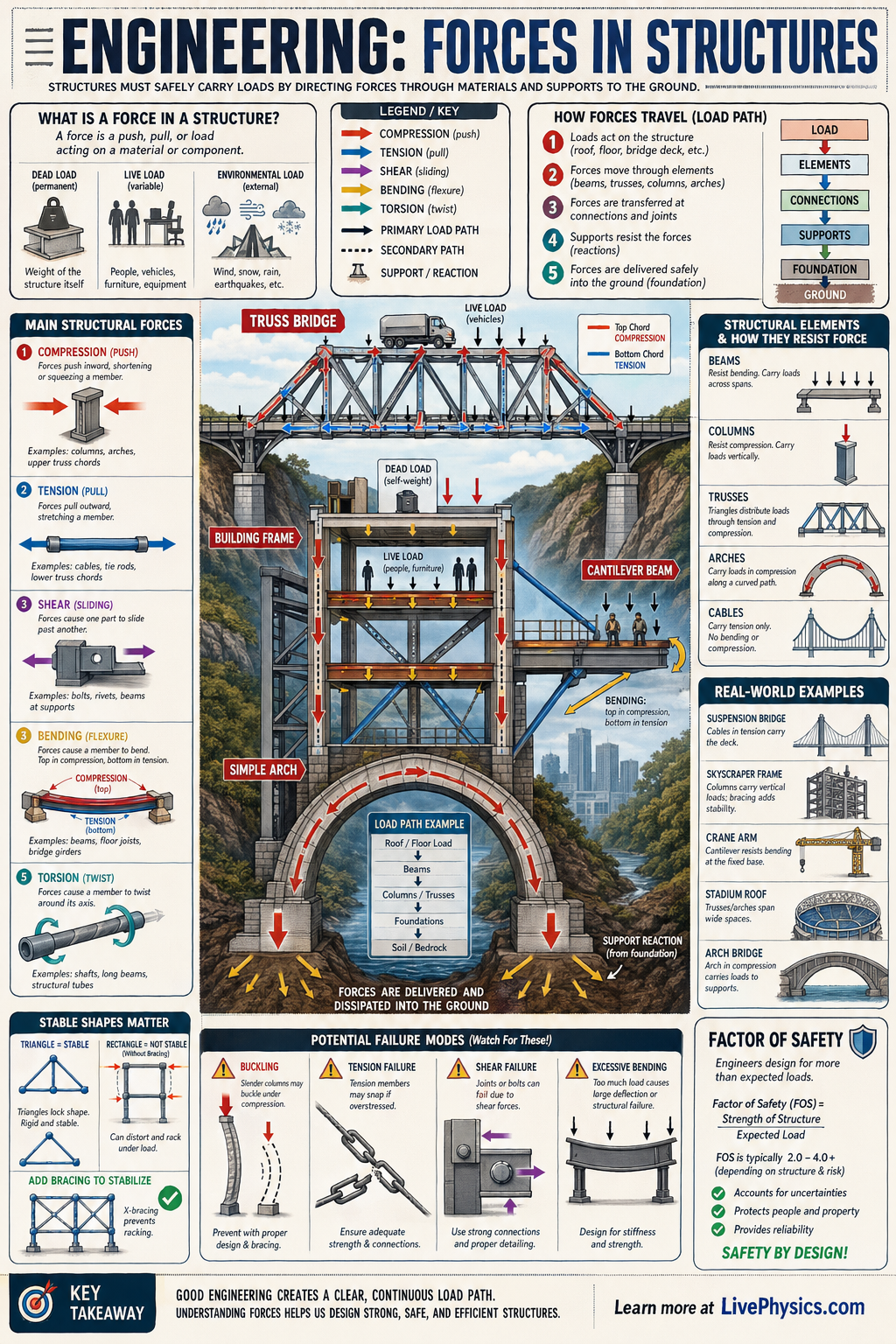

Structures stay standing because forces are directed, balanced, and transferred safely into the ground. Engineers study how loads move through beams, columns, arches, and trusses so that bridges and buildings can support weight without failing. Understanding these force paths helps explain why some shapes are strong even when they use less material.
It also shows why design choices affect safety, cost, and efficiency.
Different parts of a structure often carry different kinds of internal force, especially tension, compression, shear, and bending. A truss spreads loads through triangular members, an arch pushes forces outward and downward, and a cantilever resists rotation at its fixed end. In buildings, floors send loads into beams, beams into columns, and columns into foundations.
Engineers calculate these effects so materials stay below their stress limits and the structure remains stable under changing loads.
Understanding Forces in Structures
Internal forces are easier to understand by imagining that a structural part has been cut in half. The material on each side of the cut must pull, push, slide, or twist against the other side to keep the piece together. Tension pulls particles apart.
Compression squeezes them closer. Shear makes nearby layers try to slide past each other. Bending combines tension and compression in one member.
When a beam sags under a downward load, its top surface is shortened by compression while its bottom surface is stretched by tension. Between them is a neutral axis where the length changes very little.
This is why the shape of a beam matters so much. Material placed farther from the neutral axis does more to resist bending.
A ruler held flat over the edge of a desk gives a simple example. If it is pressed downward at the free end, it curves. It may return to its original shape when released if the material remains elastic.
If pushed too far, it can take a permanent bend or snap. Engineers care about deflection, which is the amount a structure moves under load. A floor can be strong enough not to break but still feel bouncy or develop cracked finishes if it bends too much.
Bridges must limit movement so that joints, road surfaces, and cables work properly. Stiffness is therefore important alongside strength. A deeper beam is usually much stiffer than a shallow beam made from the same material.
Columns show a different danger called buckling. A short, thick column can carry a large compressive load by direct squeezing. A long, slender column may suddenly bend sideways before the material itself is crushed.
This can happen with a drinking straw pressed between two hands. The result depends on the column length, its cross sectional shape, how firmly its ends are held, and the direction in which it is least stiff. Steel tubes and I shaped sections use their geometry efficiently to resist this sideways bending.
Designers must consider imperfections too. Real columns are never perfectly straight, and real loads are rarely placed exactly through the center.
Connections deserve close attention because forces must pass from one part to another. Bolts can be pulled in tension, sliced in shear, or both at once. A bolted plate may tear near a hole if too little material surrounds it.
Welds need enough length and thickness to transfer the load without cracking. In wooden structures, nails and screws can split the timber when they are too close to an edge. Loads also change over time.
Wind causes repeated movement, vehicles create cycles on bridges, and temperature changes make materials expand or contract. Repeated stress can cause fatigue cracks even when each individual load seems safe.
When studying structures, sketch the deformed shape first, mark where material is likely stretched or squeezed, then identify the connections and support points. These habits make force diagrams more meaningful and help reveal likely failure locations.
Key Facts
- Static equilibrium requires sum of forces = 0 and sum of torques = 0.
- Stress = force/area, or sigma = F/A.
- Strain = change in length/original length, or epsilon = delta L/L.
- Hooke's law for elastic materials: stress = E x strain.
- For a beam, bending moment and shear force both change along the span depending on the load.
- Triangles are widely used in trusses because their shape stays fixed unless member lengths change.
Vocabulary
- Tension
- Tension is a pulling force that stretches a structural member.
- Compression
- Compression is a pushing force that shortens or squeezes a structural member.
- Shear
- Shear is a force that causes one part of a material to slide past another part.
- Bending moment
- Bending moment is the turning effect of loads that makes a beam curve or bend.
- Load path
- Load path is the route by which forces travel through a structure to the supports and foundation.
Common Mistakes to Avoid
- Confusing mass with force, because mass is measured in kilograms while force is measured in newtons and depends on gravity. Always convert weight using W = mg when needed.
- Assuming every member in a structure carries the same type of force, which is wrong because some members are in tension while others are in compression. Check the geometry and support conditions before labeling forces.
- Ignoring support reactions, which is wrong because supports provide the forces and torques needed for equilibrium. Always include reaction forces in a free body diagram.
- Thinking a stronger structure always needs more material, which is wrong because shape and force distribution matter greatly. Triangles, arches, and deep beams can increase strength without simply adding mass.
Practice Questions
- 1 A 1200 N load rests on a horizontal beam supported equally at both ends. If the load is placed at the center, what upward reaction force acts at each support?
- 2 A steel column carries a compressive force of 50000 N and has a cross sectional area of 0.01 m^2. What is the compressive stress in the column?
- 3 A truss bridge uses many triangular sections instead of rectangular sections. Explain why triangles make the structure more stable and how they help control deformation.
