How Automatic Emergency Braking Works
Radar, cameras, and collision math
Related Tools
Related Worksheets

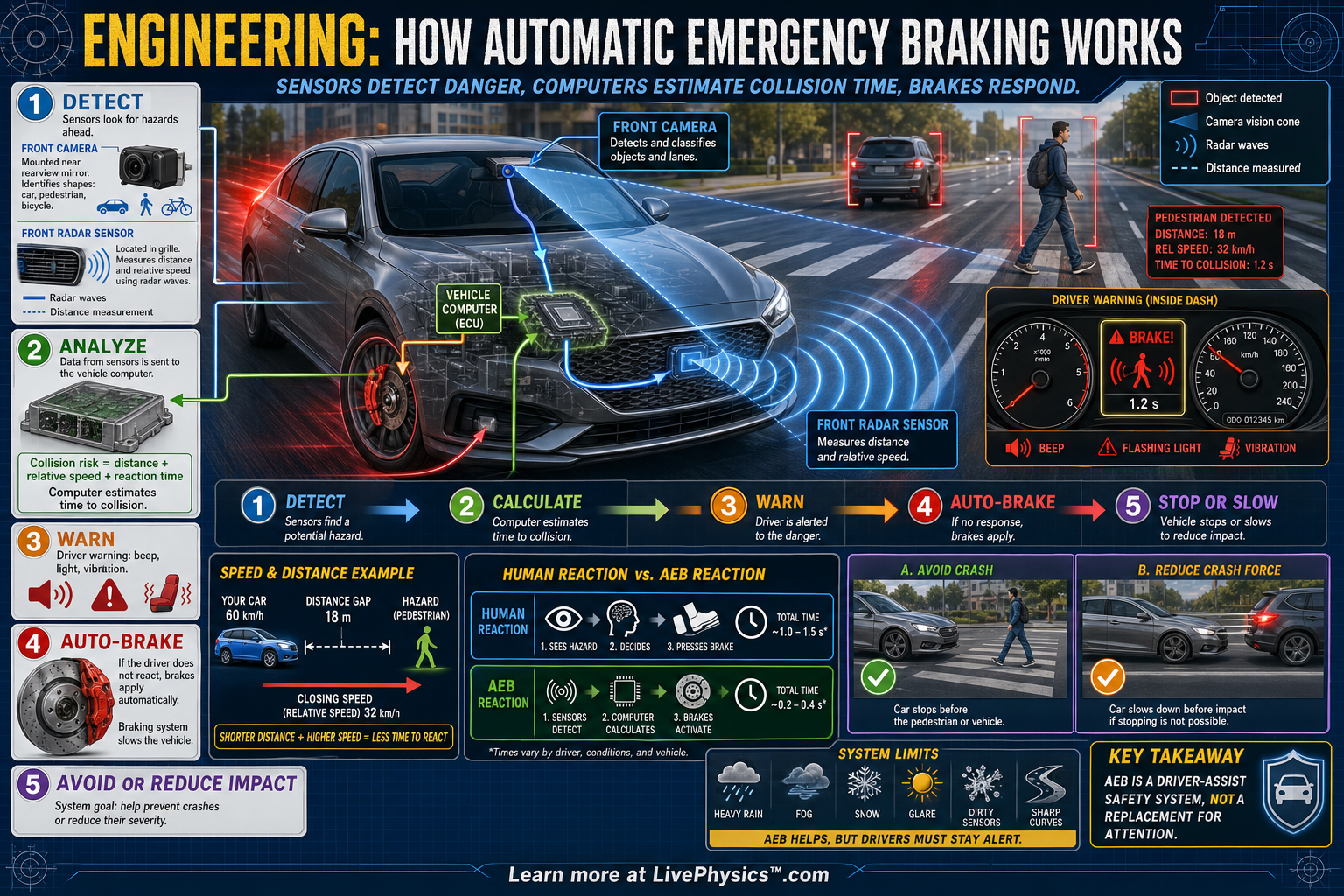

Automatic emergency braking, often called AEB, is a driver assistance system that helps a car slow down or stop when a crash may be about to happen. It matters because even a short delay in human reaction time can make the difference between a close call and a collision. AEB uses sensors such as radar and cameras to watch the road ahead while the car is moving. The system is designed to reduce crash speed or avoid some crashes entirely.
Key Facts
- AEB uses sensors, usually radar, cameras, or both, to detect vehicles, pedestrians, and other hazards ahead.
- Stopping distance is the sum of reaction distance and braking distance.
- Distance during reaction time can be estimated with d = vt.
- Braking distance under constant deceleration can be estimated with d = v^2/(2a).
- Time to collision can be estimated with TTC = distance/relative speed.
- If the driver does not respond to warnings, the control computer can command the brakes to create a large deceleration.
Vocabulary
- Automatic Emergency Braking
- Automatic emergency braking is a vehicle safety system that can apply the brakes when it predicts a possible collision.
- Radar
- Radar is a sensing method that sends out radio waves and measures their reflections to find the distance and speed of objects.
- Camera Sensor
- A camera sensor records visual information so the car's computer can identify lane markings, vehicles, pedestrians, and other objects.
- Time to Collision
- Time to collision is the estimated time before two objects meet if they continue moving at their current speeds.
- Deceleration
- Deceleration is acceleration opposite the direction of motion, causing an object to slow down.
Common Mistakes to Avoid
- Assuming AEB makes a car crash proof is wrong because sensors have limits and roads can be slippery, crowded, or hard to see in.
- Using only the car's speed to judge danger is wrong because the relative speed between the car and the hazard determines how quickly the gap is closing.
- Forgetting reaction distance is wrong because even before automatic braking begins, the car continues moving while the system detects, calculates, warns, and responds.
- Thinking cameras and radar do the same job is wrong because cameras are strong at recognizing shapes and markings, while radar is strong at measuring distance and speed.
Practice Questions
- 1 A car is moving at 20 m/s and its AEB system takes 0.5 s to begin braking after detecting a hazard. How far does the car travel during this time?
- 2 A car moving at 25 m/s detects a stopped vehicle 50 m ahead. If the car can decelerate at 6.25 m/s^2, what braking distance is needed using d = v^2/(2a), and is 50 m enough space?
- 3 Explain why an AEB system often uses both radar and a camera instead of relying on only one type of sensor.
