How Batteries Power Electric Grids
Batteries Power Electric Grids
Related Worksheets

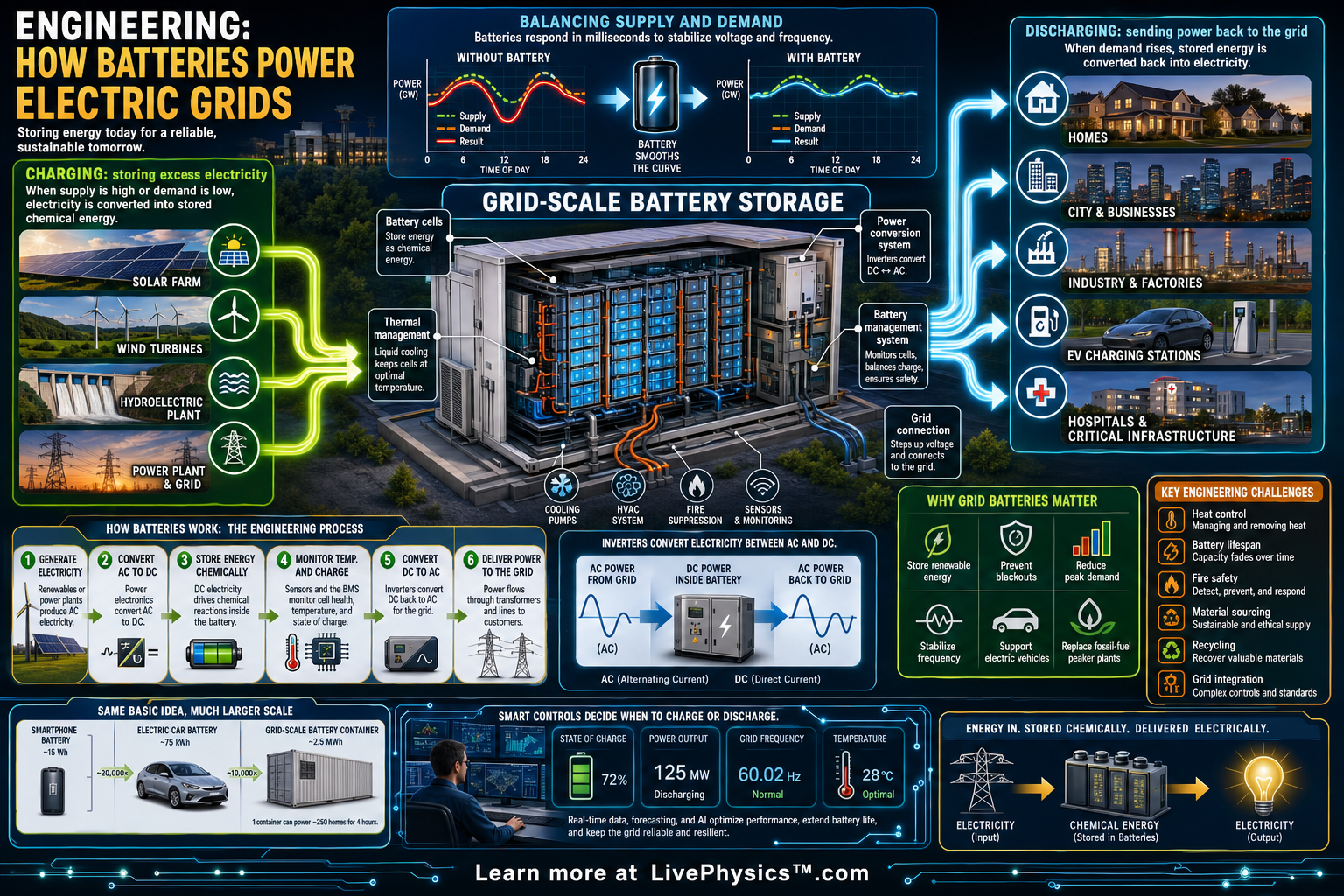

Electric grids must keep electricity supply and demand balanced every second, but solar and wind power change with weather and time of day. Grid-scale batteries help solve this problem by storing extra electrical energy when production is high and releasing it when demand rises or generation falls. They can respond much faster than most power plants, which makes them valuable for stabilizing voltage and frequency. This is why large battery storage facilities are becoming important parts of modern electric grids.
Key Facts
- Stored energy is measured in watt-hours: energy = power × time.
- Battery duration is found by time = energy capacity / power output.
- Round-trip efficiency = energy delivered / energy used to charge × 100%.
- Grid frequency must stay close to its target value, such as 60 Hz in the United States or 50 Hz in many other countries.
- Power electronics convert battery DC electricity to grid AC electricity using inverters.
- State of charge = energy currently stored / maximum battery energy capacity × 100%.
Vocabulary
- Grid-scale battery
- A large battery system designed to store and deliver electricity for the power grid.
- Inverter
- A power electronic device that converts direct current from batteries into alternating current used by the electric grid.
- State of charge
- The percentage of a battery's total usable energy that is currently stored.
- Frequency regulation
- The process of quickly adjusting power supply or demand to keep grid frequency near its required value.
- Round-trip efficiency
- The percentage of energy put into a storage system that can later be delivered back to the grid.
Common Mistakes to Avoid
- Confusing power with energy is wrong because power is the rate of delivering electricity, while energy is the total amount delivered over time.
- Assuming a battery creates electricity is wrong because a battery stores energy that was produced earlier by generators such as solar panels, wind turbines, or power plants.
- Ignoring efficiency losses is wrong because charging and discharging always waste some energy as heat in cells, wires, and power electronics.
- Thinking batteries only help during blackouts is wrong because they also provide daily services such as peak shaving, frequency regulation, and smoothing renewable energy output.
Practice Questions
- 1 A grid battery has an energy capacity of 200 MWh and delivers 50 MW to the grid. How many hours can it discharge at that power?
- 2 A battery takes in 120 MWh while charging and later delivers 108 MWh back to the grid. What is its round-trip efficiency?
- 3 Explain why a control center might charge a grid battery at noon on a sunny day and discharge it in the evening, even if no power lines have failed.
