Solar panels convert sunlight into electrical energy using semiconductor materials and carefully designed electrical circuits. This cheat sheet helps students connect engineering design choices to physics ideas such as energy conversion, voltage, current, and power. It also explains why panel angle, shading, temperature, and wiring affect real-world performance.
Students need these ideas to analyze renewable energy systems and compare solar power designs.
Key Facts
- The photovoltaic effect occurs when photons transfer energy to electrons in a semiconductor, allowing electric current to flow through an external circuit.
- A solar cell uses a p-n junction, where the built-in electric field separates electrons and holes to create voltage.
- Electrical power is calculated with P = V x I, where P is power in watts, V is voltage in volts, and I is current in amperes.
- Energy produced over time is calculated with E = P x t, where E is energy, P is power, and t is time.
- Solar panel efficiency is efficiency = useful electrical power output / solar power input x 100%.
- Solar power input on a panel is solar power input = irradiance x area, usually using irradiance in W/m^2 and area in m^2.
- Cells wired in series increase total voltage, while cells wired in parallel increase total current.
- Real solar panel output is reduced by shading, high temperature, dirt, wiring losses, inverter losses, and a panel angle that does not face the Sun well.
Vocabulary
- Photovoltaic effect
- The process in which light energy creates movable electric charges in a material, producing electrical energy.
- Semiconductor
- A material, such as silicon, whose electrical conductivity can be controlled for use in electronic devices.
- P-n junction
- The boundary between p-type and n-type semiconductor layers that creates an electric field inside a solar cell.
- Irradiance
- The solar power received per unit area, usually measured in watts per square meter.
- Efficiency
- The percentage of incoming solar energy that a panel converts into useful electrical energy.
- Inverter
- A device that converts direct current from solar panels into alternating current used by most homes and power grids.
Common Mistakes to Avoid
- Confusing energy and power is wrong because power is the rate of energy transfer, while energy is the total amount transferred over time.
- Assuming a panel always produces its rated power is wrong because rating tests use ideal conditions that often differ from outdoor conditions.
- Adding voltages and currents the same way in every circuit is wrong because series wiring adds voltage, while parallel wiring adds current.
- Ignoring shade on one part of a panel is wrong because shaded cells can reduce the current through a whole string of series-connected cells.
- Using efficiency without multiplying by panel area and irradiance is wrong because efficiency alone does not tell the total power output.
Practice Questions
- 1 A solar panel produces 32 V and 6 A in full sun. What electrical power does it produce?
- 2 A 1.6 m^2 panel receives irradiance of 900 W/m^2 and produces 260 W of electrical power. What is its efficiency?
- 3 Four identical solar cells each produce 0.6 V and 3 A. What are the total voltage and current if the cells are connected in series?
- 4 Explain why a solar panel on a hot, partly shaded roof may produce less power than the same panel on a cool, clear day, even if both receive sunlight.

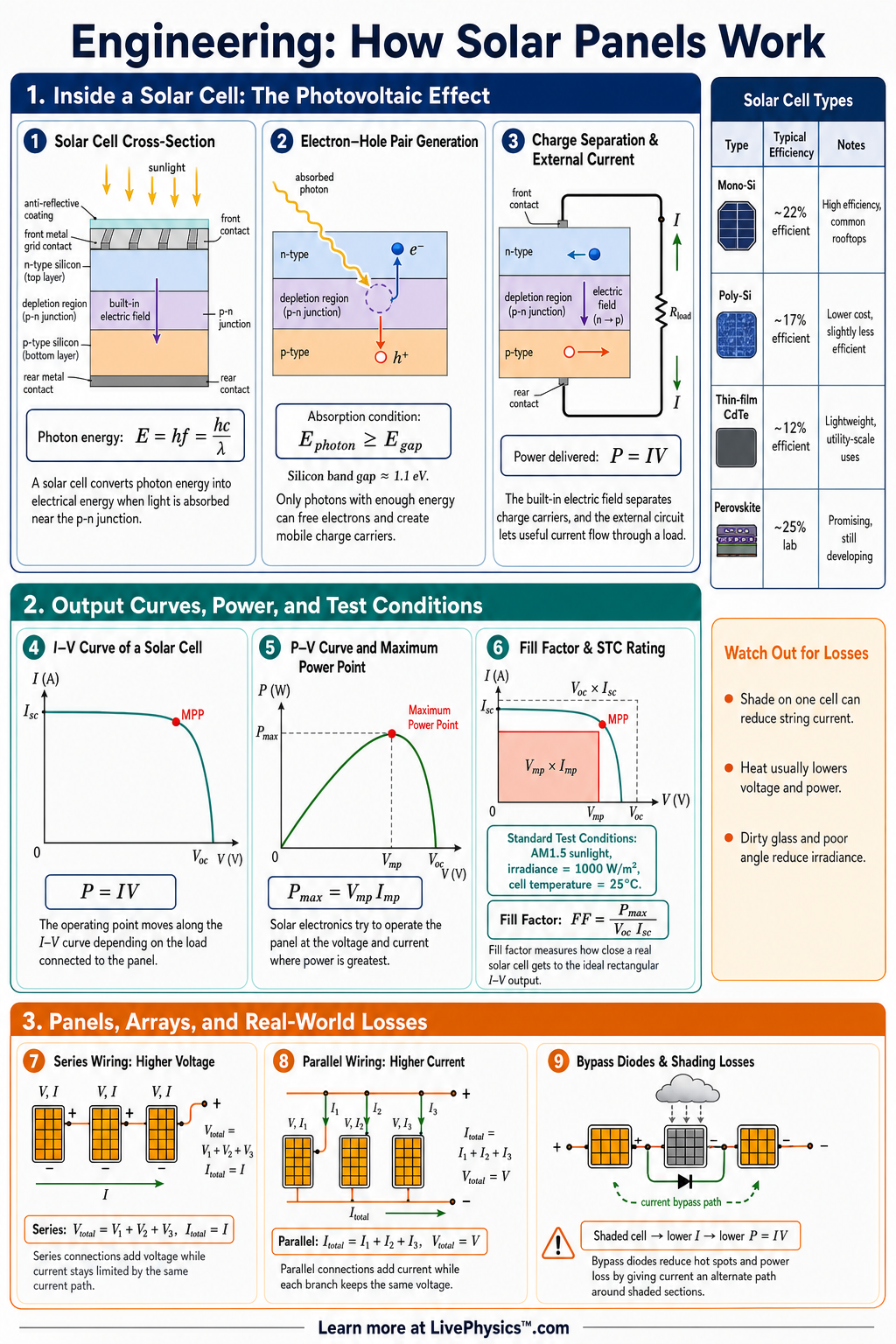

Understanding How Solar Panels Work
Inside a cell, silicon atoms form a crystal with electrons that are normally held in place. Small amounts of other elements are added during manufacturing. One side has extra electrons available for movement.
The other side has spaces where electrons are missing. These spaces behave like positive charge carriers. At their boundary, charges settle into a thin region that pushes newly freed charges in opposite directions.
Only light with enough energy can free useful electrons. Light with too little energy passes through or becomes heat.
Light with much more energy than needed loses its extra energy as heat. This limit helps explain why no ordinary silicon panel can convert all incoming sunlight into electricity.
A panel does not produce one fixed amount of power. Its voltage and current change with sunlight, temperature, and the electrical device connected to it. Engineers plot these possible combinations as a current and voltage curve.
Near one end of the curve, current is high but voltage is very low. Near the other end, voltage is high but current is nearly zero. Between them is a best operating point where the product of voltage and current is greatest.
A charge controller or inverter can use maximum power point tracking to keep the panel near this point as conditions change. This control matters because a panel connected to a battery does not naturally stay at its most productive setting.
Cells within a module are fragile electrical links. When cells are connected in a series path, the same current must pass through every cell. A partly shaded cell can therefore limit the output of many unshaded cells.
It may even heat up because it is forced to carry current while producing little. This is called a hot spot. Bypass diodes give current an alternate route around a shaded section.
They protect the module and reduce some lost output, though they cannot recover all of it. Parallel connections can provide more current, but they need properly sized wires and protective fuses. Wire resistance turns a small part of electrical energy into heat, especially when current is high or cable runs are long.
Most rooftop systems make direct current at the panels, then use an inverter to supply alternating current for buildings or the grid. The inverter has limits on voltage range and total input power. Its efficiency changes slightly with load, so a system must be designed as a whole rather than by reading one panel rating.
Panel ratings are measured under controlled test conditions with strong sunlight and a cool cell temperature. Real roofs rarely match those conditions. Students should separate power, which is the rate of energy transfer, from energy, which accumulates over hours or days.
A system may have a high power rating yet produce little energy during a cloudy winter week. When comparing designs, check orientation, tilt, shading at different times, local weather, equipment losses, and the electricity demand pattern.
