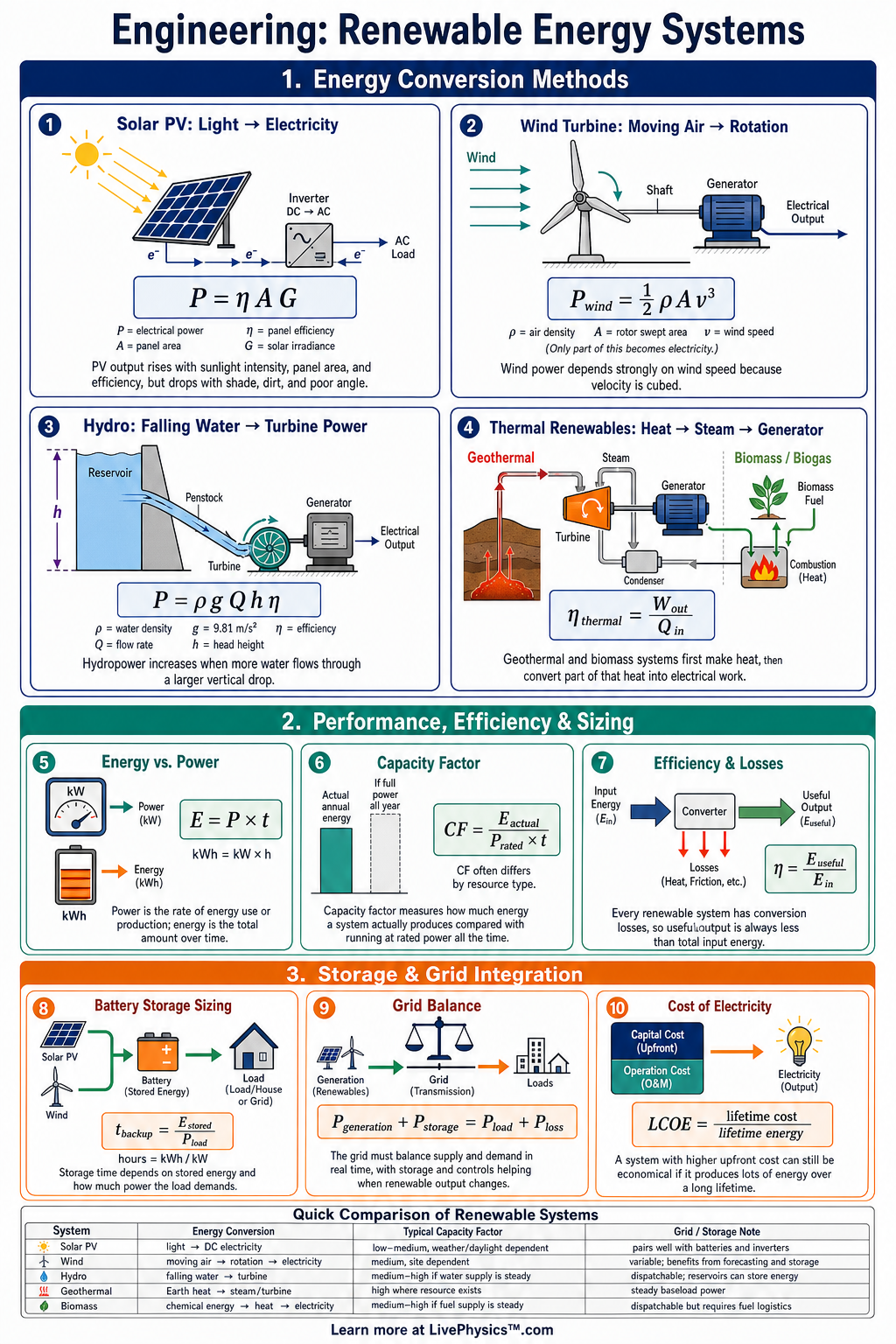

Renewable Energy Systems Cheat Sheet
A printable reference covering power, energy, efficiency, capacity factor, solar, wind, storage, and grid integration for grades 9-12.
Related Tools
Related Labs
Related Worksheets
Renewable energy systems use natural energy sources such as sunlight, wind, water, and heat from Earth to produce useful electricity or mechanical work. This cheat sheet helps engineering students compare technologies, estimate system output, and understand why design choices matter. It is useful for projects involving solar panels, wind turbines, batteries, microgrids, and sustainable energy planning.
Key Facts
- Power is the rate of energy transfer, so P = E / t, where P is power in watts, E is energy in joules, and t is time in seconds.
- Electrical power is calculated with P = V I, where V is voltage in volts and I is current in amperes.
- Energy from a steady power source is E = P t, so a 2 kW system running for 5 h produces 10 kWh.
- Efficiency is efficiency = useful output energy / input energy x 100%, and it is always less than 100% for real systems.
- Capacity factor is capacity factor = actual energy produced / maximum possible energy if running at rated power for the same time.
- Solar panel output can be estimated with P = solar irradiance x panel area x panel efficiency.
- Wind power depends strongly on wind speed because P = 0.5 x air density x swept area x wind speed^3 x efficiency.
- Battery energy capacity is often estimated with E = V Ah, where V is battery voltage and Ah is ampere-hours.
Vocabulary
- Renewable Energy
- Energy from sources that are naturally replenished on a human time scale, such as sunlight, wind, flowing water, and geothermal heat.
- Efficiency
- The percentage of input energy that becomes useful output energy in a device or system.
- Capacity Factor
- The ratio of actual energy produced to the energy that would be produced if a system ran at full rated power all the time.
- Intermittency
- The variation in energy output caused by changing natural conditions such as sunlight, wind speed, or water flow.
- Inverter
- A device that converts direct current from sources such as solar panels or batteries into alternating current used by most buildings and power grids.
- Energy Storage
- A system, such as a battery or pumped hydro plant, that stores energy for use at a later time.
Common Mistakes to Avoid
- Confusing power and energy is wrong because power is a rate while energy is the total amount delivered over time.
- Using watts and kilowatt-hours as if they are the same unit is wrong because watts measure power and kilowatt-hours measure energy.
- Assuming a renewable system always produces its rated power is wrong because output changes with sunlight, wind speed, water flow, temperature, and equipment limits.
- Ignoring efficiency losses is wrong because inverters, batteries, wires, generators, and turbines all reduce the useful energy delivered.
- Forgetting that wind power depends on wind speed cubed is wrong because a small increase in wind speed can cause a large increase in available power.
Practice Questions
- 1 A solar array produces 3.5 kW for 6 hours. How much energy does it produce in kWh?
- 2 A battery is rated at 48 V and 100 Ah. Estimate its stored energy in Wh and kWh.
- 3 A wind turbine has a rated power of 2 MW and produces 5,256 MWh in one year. What is its capacity factor?
- 4 Why might two solar farms with the same rated power produce different amounts of energy in one year?
