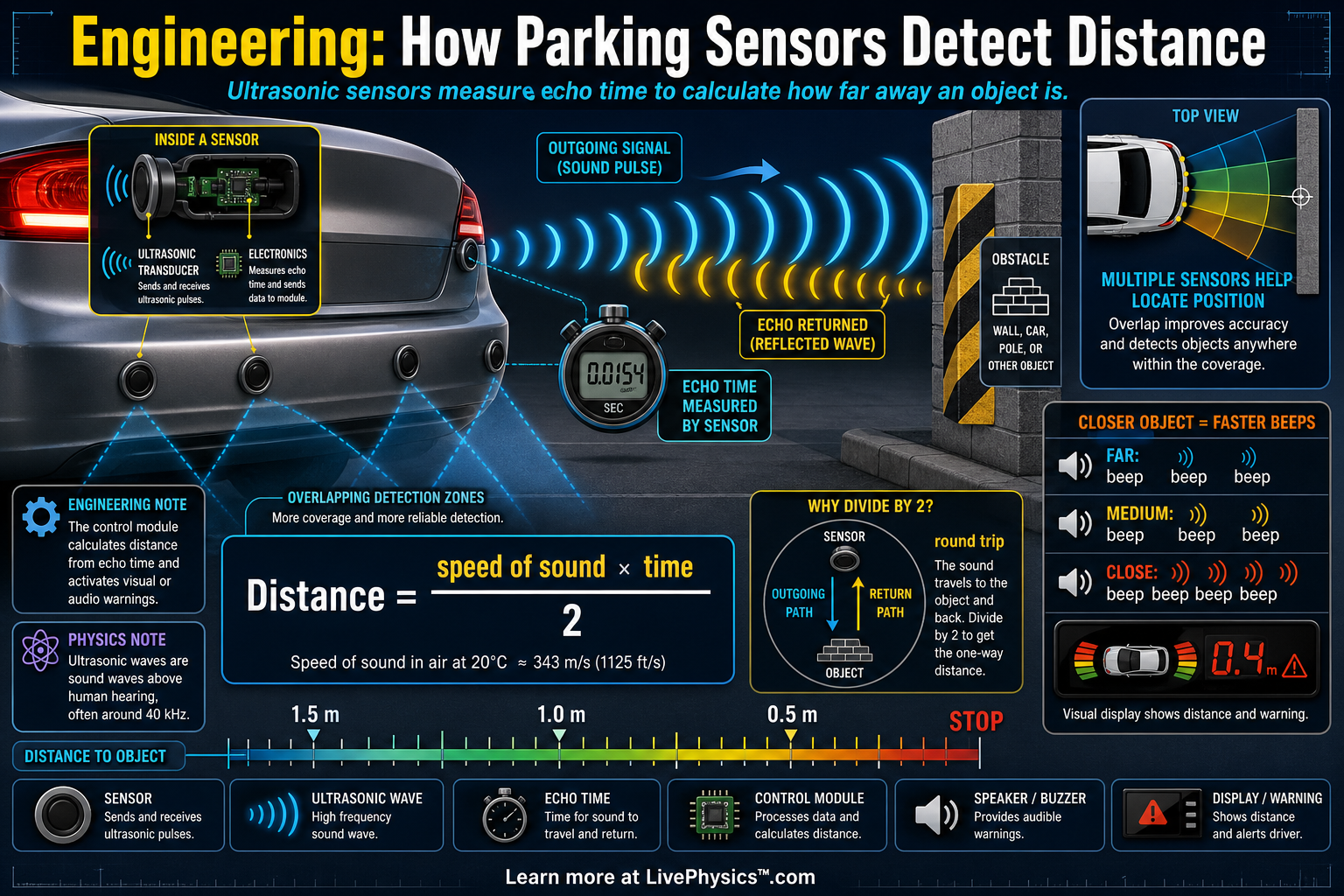

How Parking Sensors Detect Distance
Ultrasonic pings and echo timing
Related Tools
Related Labs
Related Worksheets
Parking sensors help drivers judge distance when the rear of a car is close to a wall, another car, or a person. Most common systems use ultrasonic sound, which is sound at a frequency too high for humans to hear. A small round sensor in the bumper sends out a short sound pulse and waits for the echo to return. By timing that echo, the car can estimate how far away the obstacle is.
The key idea is time of flight, which means measuring how long a wave takes to travel to an object and back. Since the pulse makes a round trip, the distance to the object is half of speed multiplied by time. Several sensors across the bumper compare echo times and strengths to estimate where the obstacle is, not just how far away it is. The warning beeps get faster as the distance gets smaller, giving the driver an easy signal without needing to look at a screen.
Key Facts
- Ultrasonic parking sensors use sound waves above human hearing, usually around 40 kHz.
- Distance = (speed of sound × echo time) / 2.
- The factor of 1/2 is needed because the sound travels to the obstacle and back.
- At room temperature, the speed of sound in air is about 343 m/s.
- Shorter echo time means the obstacle is closer to the sensor.
- Multiple sensors help estimate the obstacle location by comparing echo times from different positions.
Vocabulary
- Ultrasonic
- Ultrasonic describes sound waves with frequencies higher than humans can hear, usually above 20,000 Hz.
- Transducer
- A transducer is a device that converts one form of energy into another, such as electrical energy into sound and sound back into electrical signals.
- Echo
- An echo is a reflected sound wave that returns after bouncing off a surface.
- Time of flight
- Time of flight is the time a wave or signal takes to travel from a source to a target and back or to another receiver.
- Triangulation
- Triangulation is a method of finding position by using measurements from two or more known locations.
Common Mistakes to Avoid
- Forgetting to divide by 2 in the distance formula. The measured time is for the sound traveling to the object and back, so using speed × time gives the round trip distance.
- Using the speed of light instead of the speed of sound. Parking sensors use sound waves, so the correct speed is about 343 m/s in air, not 300,000,000 m/s.
- Assuming one sensor gives the full shape and position of an obstacle. A single sensor mainly measures distance in its detection zone, while multiple sensors are needed to estimate location across the bumper.
- Thinking faster beeps mean the car is moving faster. In a parking sensor system, faster beeps usually mean the obstacle is closer, not that the vehicle speed is higher.
Practice Questions
- 1 A parking sensor sends an ultrasonic pulse and receives the echo 0.020 s later. Using 343 m/s for the speed of sound, how far away is the wall?
- 2 An obstacle is 1.5 m behind a car. How long will it take for the ultrasonic pulse to travel to the obstacle and return to the sensor? Use 343 m/s.
- 3 Explain why parking sensors are less reliable for very soft, angled, or unusually shaped objects, even when the object is close to the bumper.
