Mechatronics system architecture explains how mechanical parts, electronics, software, sensors, actuators, and communication links work together in one engineered product. This cheat sheet helps students organize a system from inputs to outputs instead of studying each part separately. It is useful for designing robots, automated machines, smart devices, and control systems.
A clear architecture makes troubleshooting, testing, and improving a design much easier.
The core ideas include system flow, signal conversion, controller logic, sampling rate, feedback, and tradeoffs between speed, accuracy, cost, and reliability. A typical mechatronics system senses a physical condition, processes the signal, makes a decision, and drives an actuator. Engineers must choose sensors, processors, communication methods, and power components that work together safely.
Good designs use diagrams, requirements, and testing plans to connect every decision to system performance.
Key Facts

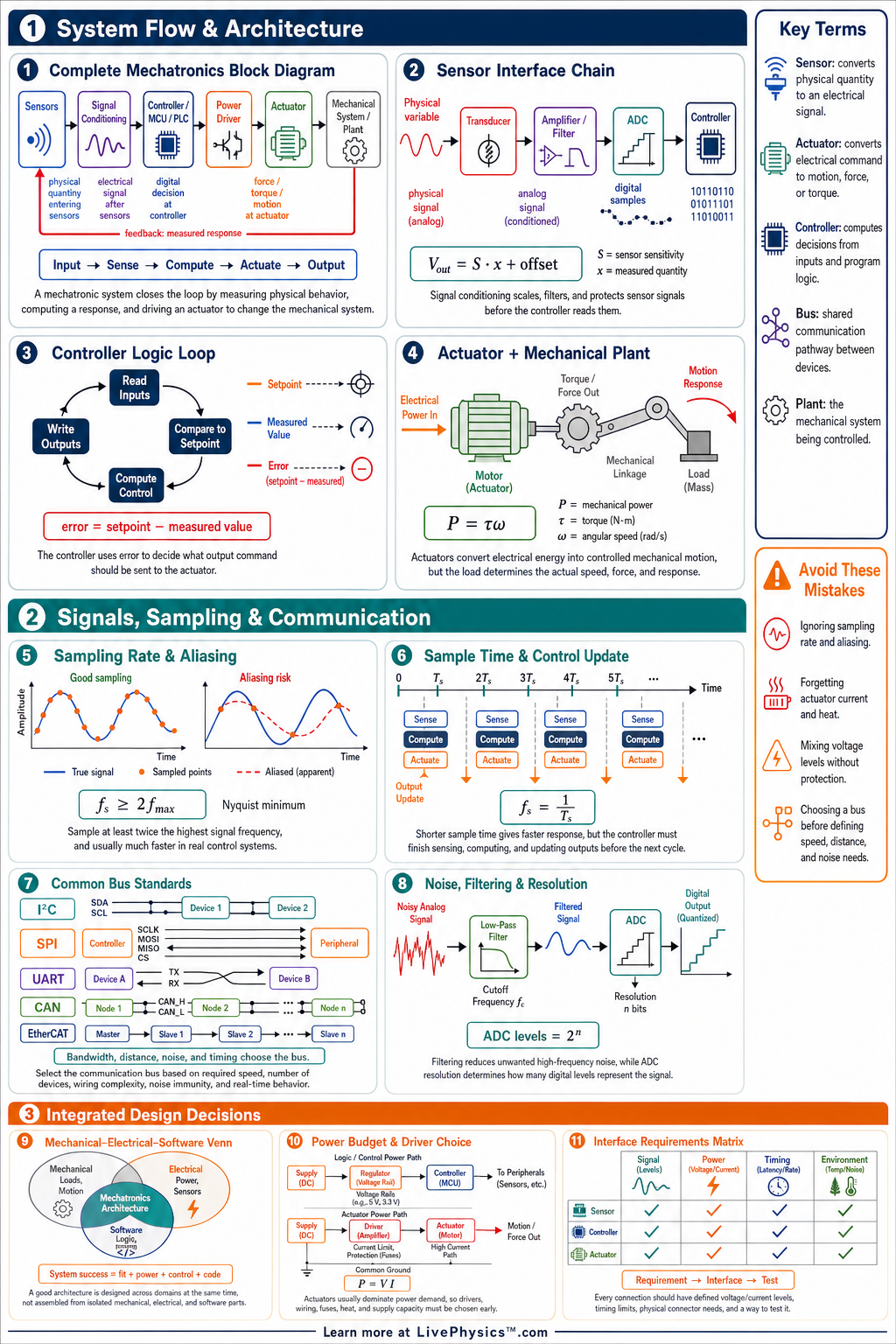

- A basic mechatronics flow is input or sensor -> signal conditioning -> controller -> driver -> actuator -> physical output.
- A feedback control loop compares the desired value to the measured value using error = setpoint - measured value.
- Sampling frequency must be high enough to capture changing signals, and a common rule is fs >= 2fmax for the minimum Nyquist rate.
- Sensor resolution is the smallest detectable change, often calculated as resolution = measurement range / number of digital counts.
- Analog-to-digital converter levels are calculated by counts = 2^n, where n is the number of ADC bits.
- Communication bus selection depends on data rate, distance, noise immunity, device count, and timing requirements.
- Actuator power can be estimated with P = V x I for electrical devices, where P is power, V is voltage, and I is current.
- Integrated design balances mechanical load, electrical power, controller speed, software complexity, safety, cost, and maintainability.
Vocabulary
- Mechatronics
- Mechatronics is the integration of mechanical systems, electronics, control, and software to create an automated or intelligent device.
- System Architecture
- System architecture is the organized layout of components, signals, energy flow, and information flow in an engineered system.
- Sensor
- A sensor is a device that detects a physical quantity such as position, force, temperature, or light and converts it into a signal.
- Actuator
- An actuator is a device that converts an electrical, hydraulic, or pneumatic command into physical motion or force.
- Controller
- A controller is the hardware or software unit that reads inputs, applies logic or control laws, and sends commands to outputs.
- Sampling Rate
- Sampling rate is the number of sensor measurements taken per second, usually measured in hertz.
Common Mistakes to Avoid
- Choosing components separately, without checking system compatibility, is wrong because voltage levels, signal types, timing, and power limits must match across the whole architecture.
- Using a sampling rate that is too low is wrong because fast changes can be missed or misread as false lower-frequency signals.
- Ignoring signal conditioning is wrong because raw sensor outputs may be noisy, too small, nonlinear, or outside the controller input range.
- Selecting an actuator only by speed is wrong because torque, force, current draw, duty cycle, heat, and mechanical load also determine whether it will work.
- Leaving feedback out of a system that needs accuracy is wrong because open-loop control cannot automatically correct for load changes, friction, wear, or disturbances.
Practice Questions
- 1 A 10-bit ADC reads a 0 to 5 V sensor. How many digital levels are available, and what voltage change does one count represent?
- 2 A position sensor signal can change at up to 40 Hz. Using the minimum Nyquist rule, what is the lowest acceptable sampling frequency?
- 3 A motor driver operates at 12 V and draws 2.5 A while running. Estimate the electrical power used by the motor driver load.
- 4 A robot arm overshoots its target when carrying a heavier object. Explain which part of the mechatronics architecture should be reviewed and why feedback or controller tuning may help.
Understanding Mechatronics System Architecture
Architecture begins with requirements that can be tested. A requirement might state that a conveyor must stop within a certain distance, a robot arm must lift a known load, or a temperature system must stay within a chosen range. Each requirement leads to design choices.
Stopping distance affects motor size, brake design, sensor placement, controller timing, and available power. Writing these links down prevents a common mistake. Students often select parts first, then discover that the parts cannot meet the real job.
Signals change form several times inside a system. A sensor may produce a tiny voltage that is easily disturbed by electrical noise. Signal conditioning can amplify it, filter unwanted changes, or shift it into a voltage range the controller can read.
The controller turns a measured value into digital data, runs its program, then sends a command to a driver. The driver provides the larger current needed by a motor, valve, heater, or solenoid.
A controller pin should not power a motor directly. The motor can draw far too much current and can produce voltage spikes when it stops.
Timing is a design issue, not just a programming detail. A fast spinning wheel needs frequent measurements because its position changes quickly. A room temperature sensor can be read much less often.
Reading too slowly can make a controller react late. Reading extremely fast can waste processor time and make noisy measurements seem important. Filters smooth noise, but heavy filtering adds delay.
That delay can make a feedback loop unstable, especially when a machine moves quickly. Students should track the time used for sensing, calculation, communication, and actuator response. These delays add together.
Mechanical behavior sets limits on the electronics. A motor that seems powerful enough on paper may still fail to start a loaded mechanism because starting torque is high. Friction, gear backlash, flexible belts, wheel slip, and moving mass affect how the machine responds.
A position sensor mounted after a flexible coupling may report a different motion from the motor shaft. This is why prototypes need physical tests.
Measure current while the machine starts, lifts, turns, and jams. Electrical power equals voltage times current, so current measurements help identify hot wires, overloaded drivers, and battery drain.
Communication and safety deserve their own place in the architecture. Devices sharing data need clear rules about message timing, lost messages, and incorrect values. In a noisy workshop, long wires can pick up interference, so grounding, shielding, cable routing, and suitable communication methods matter.
Safety functions should not depend only on normal software behavior. A limit switch, emergency stop, fuse, current limit, or watchdog timer can move the system to a safer state when something fails.
When studying a design, trace what happens if a sensor disconnects, a motor stalls, power drops, or data arrives late. Those failure paths often reveal the quality of the architecture.
