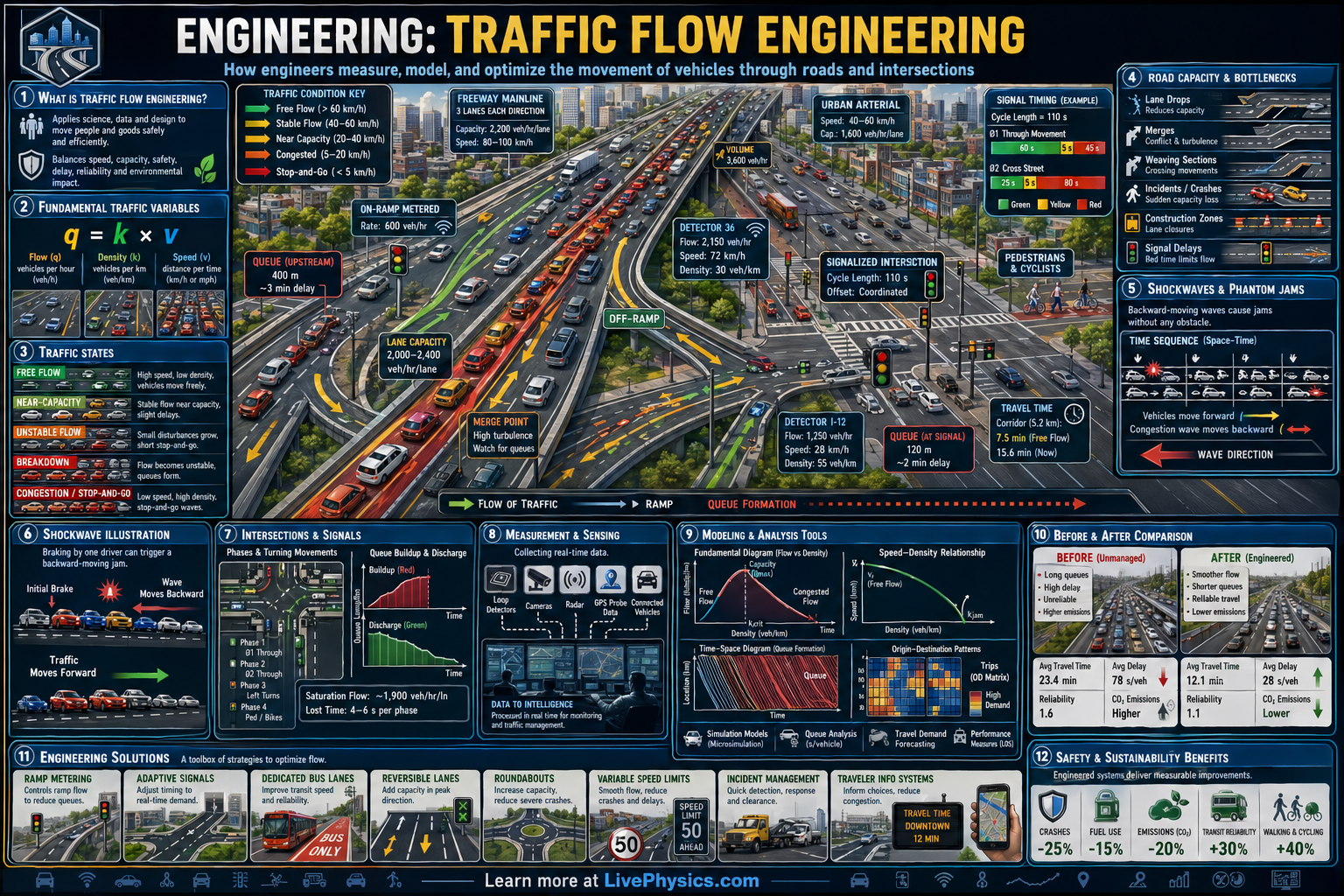

Click image to open full size
Traffic Flow Engineering
Density, Bottlenecks, and Signal Timing
Related Worksheets
Related Cheat Sheets
Traffic flow engineering studies how vehicles move on roads and how engineers can design streets, signals, and highways to reduce delay, improve safety, and increase capacity. It matters because congestion wastes time, fuel, and money while also increasing pollution and crash risk. By measuring speed, density, and flow, engineers can describe traffic with the same kind of quantitative tools used in physics and systems engineering. These ideas help cities decide how to time signals, set speed limits, and manage bottlenecks.
At the core of traffic flow engineering is the relationship between how many vehicles are on a road, how fast they travel, and how many pass a point each hour. Engineers often use the basic model q = k x v, where flow q depends on density k and average speed v. When density rises too much, drivers must slow down, and flow can collapse into stop and go traffic. Modern traffic engineering combines roadway geometry, signal control, sensors, and computer models to keep traffic near efficient operating conditions.
Key Facts
- Traffic flow is q = k x v, where q is flow, k is density, and v is average speed.
- Flow is often measured in vehicles per hour, density in vehicles per kilometer, and speed in kilometers per hour.
- Capacity is the maximum sustainable flow rate a road or lane can handle under given conditions.
- Headway is the time between two vehicles passing a point, and flow can be estimated by q = 3600 / h when headway h is in seconds.
- Jam density is the maximum possible density when vehicles are nearly stopped bumper to bumper.
- Signal timing, ramp metering, and lane management are common tools used to reduce congestion and smooth traffic flow.
Vocabulary
- Flow
- Flow is the number of vehicles that pass a point on a road during a certain amount of time.
- Density
- Density is the number of vehicles occupying a unit length of roadway at a given moment.
- Headway
- Headway is the time gap between consecutive vehicles passing the same point.
- Capacity
- Capacity is the greatest traffic flow rate that can be maintained on a road under specific conditions.
- Level of service
- Level of service is a rating that describes how well traffic operates, based on delay, speed, and driver comfort.
Common Mistakes to Avoid
- Confusing flow with speed, because a road can have high speed but low flow if very few vehicles are present. Flow depends on both speed and density.
- Assuming adding more cars always increases flow, because once density gets too high drivers slow down and total flow can decrease. Congestion often begins near bottlenecks when the road is pushed past efficient conditions.
- Using inconsistent units in q = k x v, because vehicles per hour, vehicles per kilometer, and kilometers per hour must match correctly. Mixed units lead to wrong answers even if the formula is correct.
- Ignoring signal timing at intersections, because road capacity is not determined only by lane count. Poorly timed signals can create queues and reduce the effective flow of an entire corridor.
Practice Questions
- 1 A highway lane has an average speed of 80 km/h and a density of 25 vehicles/km. Calculate the traffic flow in vehicles per hour.
- 2 Cars pass a point on a road with an average headway of 2.4 s. Use q = 3600 / h to find the flow rate in vehicles per hour.
- 3 Two roads each have three lanes, but one has frequent poorly timed traffic signals while the other has coordinated signals. Explain which road is likely to have better traffic flow and why.
