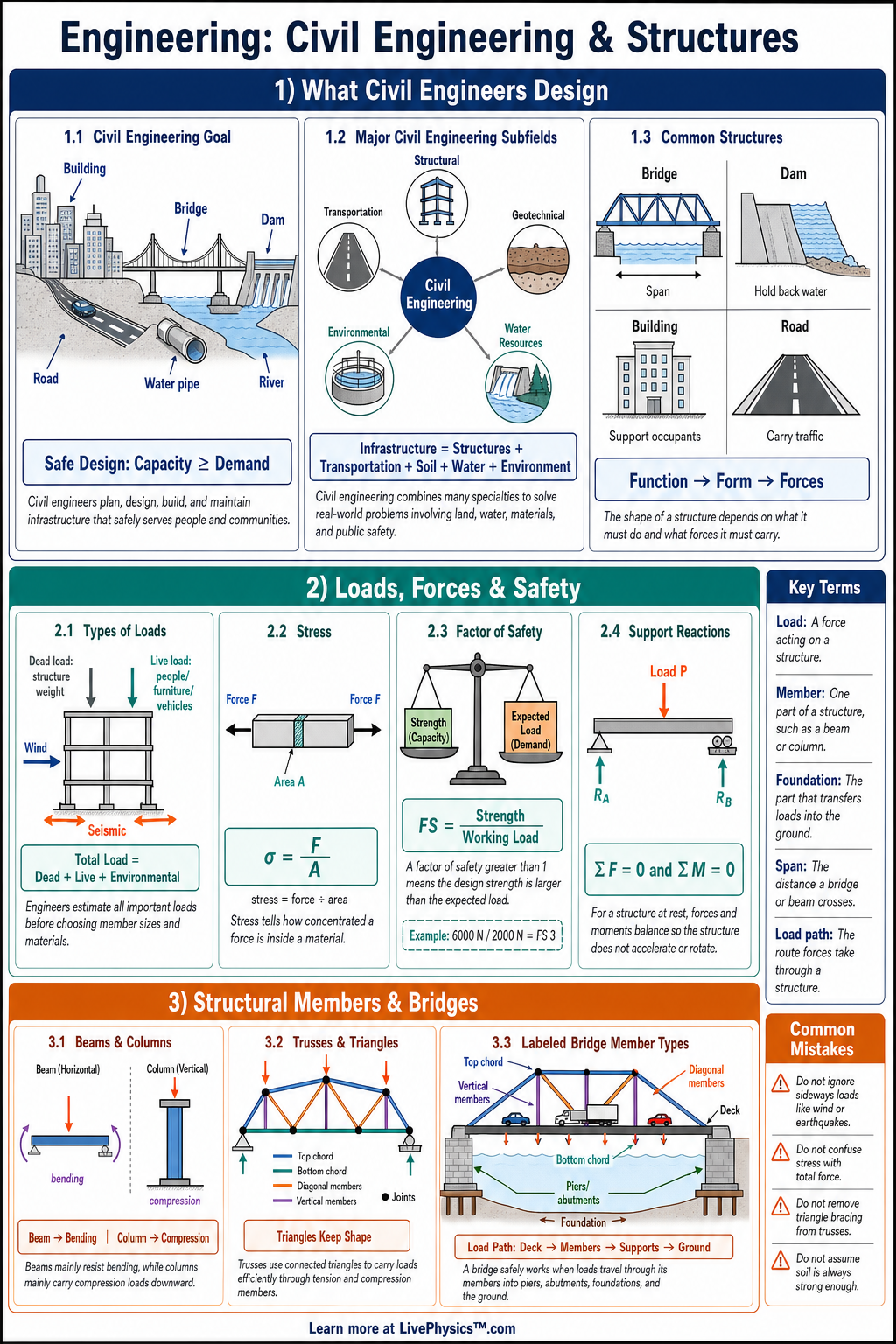

Civil engineering focuses on designing, building, and maintaining structures such as bridges, buildings, roads, dams, and towers. This cheat sheet helps students connect engineering ideas to the forces and materials that keep structures safe. It is useful for reviewing how loads move through a structure and how engineers choose shapes, supports, and materials.

Students need these ideas to understand why structures stand, bend, crack, or fail.

Key Facts

  • Stress measures internal force per area and is calculated as stress = force / area.
  • Strain measures deformation compared with original length and is calculated as strain = change in length / original length.
  • Hooke's law for an elastic material is stress = elastic modulus x strain.
  • A safety factor compares strength to expected load and is calculated as safety factor = maximum strength / working load.
  • A simply supported beam with a center point load has maximum bending moment M = P x L / 4, where P is the load and L is the span.
  • For a beam with a single center load, each support reaction is R = P / 2 when the load is exactly centered.
  • In a truss, members in tension are pulled apart, while members in compression are pushed together.
  • Triangular frames are stiff because a triangle cannot change shape without changing the length of one of its sides.

Vocabulary

Load
A load is any force acting on a structure, such as weight, wind, traffic, water pressure, or earthquakes.
Stress
Stress is the internal force in a material divided by the area carrying that force.
Strain
Strain is the amount a material stretches or compresses compared with its original length.
Beam
A beam is a structural member that mainly carries loads by bending between supports.
Truss
A truss is a framework of connected triangles that carries loads mostly through tension and compression in its members.
Factor of Safety
A factor of safety is a number showing how much stronger a structure is than the load it is expected to carry.

Common Mistakes to Avoid

  • Confusing mass with weight is wrong because structures respond to force, and weight is calculated as weight = mass x gravity.
  • Ignoring the direction of forces is wrong because a member may be safe in tension but buckle in compression.
  • Using total load without considering where it acts is wrong because load position changes support reactions and bending moments.
  • Assuming bigger always means safer is wrong because shape, material, connections, and load path can matter as much as size.
  • Forgetting units is wrong because formulas such as stress = force / area require consistent units, such as newtons and square meters.

Practice Questions

  1. 1 A steel rod carries a 1200 N tension force and has a cross-sectional area of 0.0003 m2. What is the stress in the rod?
  2. 2 A bridge beam has a span of 8 m and a 10,000 N point load at the center. What is the maximum bending moment using M = P x L / 4?
  3. 3 A structure can safely hold 45,000 N before failure and is expected to carry 15,000 N in use. What is its factor of safety?
  4. 4 Why do engineers often use triangles in bridge trusses instead of rectangles without diagonal bracing?

Understanding Civil Engineering & Structures

Every structure needs a continuous load path. A roof load may pass into rafters, then walls, then foundations, then soil. Wind can push sideways through the same chain in a different direction.

Engineers study each connection in that path because forces do not disappear at a joint. Bolts, welds, glue, reinforcing bars, and bearing surfaces must transfer the force safely. Foundations matter because even a strong building can settle or tilt if the ground beneath it is too weak or uneven.

Soil can compress, wash away, freeze, or shift during an earthquake. The structure and the ground must be designed as one system.

Beams carry loads mainly by bending. When a beam sags, material near the top is squeezed while material near the bottom is stretched. Between them is a layer that changes length very little.

This pattern explains why an I shaped steel beam places much of its material in the wide top and bottom flanges. Moving material farther from the middle makes the beam resist bending more effectively without making it solid and heavy. The way a beam is supported changes its behavior.

A beam fixed into a wall cannot rotate freely, while a beam resting on a support can rotate. These support details affect where bending is greatest and where cracks or yielding may begin.

Trusses are often used for roof frames and long bridges because their members mainly carry direct pulling or pushing forces. This works best when loads enter at the joints and the joints can rotate slightly. Real joints are not perfect, so engineers allow for some bending as well.

A member under compression needs special care. It may buckle sideways long before the material itself is crushed. Long, thin members buckle more easily than short, thick ones.

Cross bracing reduces this risk by shortening the unsupported length. Triangles keep the frame from changing shape, but the connections must be strong enough to keep the triangle complete.

Materials have different strengths and weaknesses. Steel is strong in tension and can bend a fair amount before breaking, which gives visible warning in many cases. Concrete is strong when squeezed but weak when pulled, so reinforced concrete contains steel bars where tension is expected.

Wood is light and useful, though moisture, knots, insects, and grain direction affect its strength. Structures can fail slowly through repeated loading. A paper clip bent back and forth shows the basic idea of fatigue.

Bridges, cranes, and machine parts experience millions of cycles. Engineers consider extreme loads, normal daily loads, wear, corrosion, temperature change, and construction errors.

A safety factor provides room for uncertainty, but it does not excuse poor design. When learning this topic, draw force arrows, identify supports, state assumptions, track units, and ask where each load finally reaches the ground.
