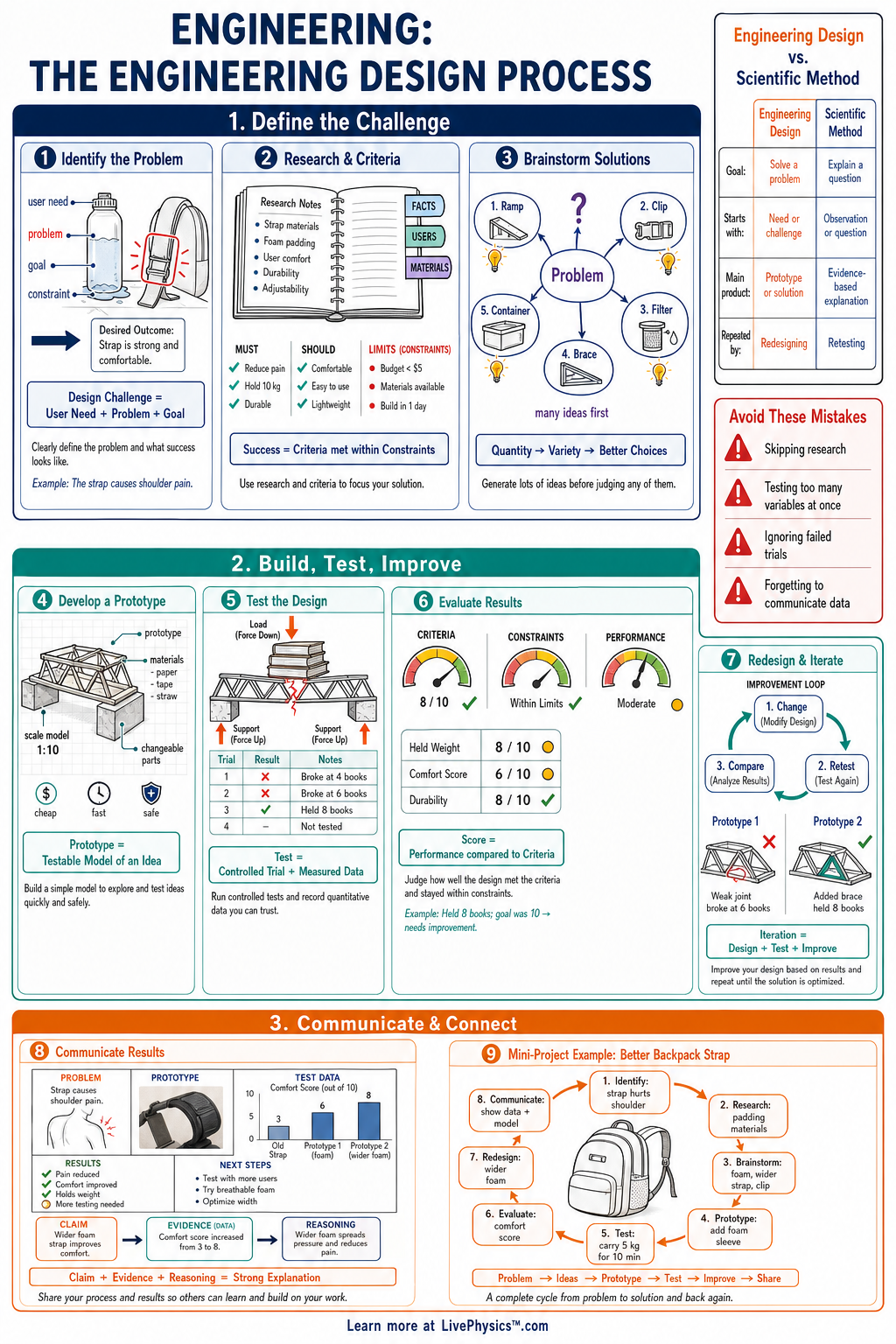

The engineering design process is a step-by-step method for solving real problems by creating, testing, and improving solutions. This cheat sheet helps students organize design work from the first question to the final redesign. It is useful for projects, labs, competitions, and classroom challenges because it shows what engineers do at each stage.
Students can use it as a quick reference when planning, building, testing, and explaining a design.
Key Facts
- The engineering design process usually follows these steps: ask, imagine, plan, create, test, improve, and communicate.
- A design problem should include the need, the user, the goal, the criteria for success, and the constraints on the solution.
- Criteria are the required features or performance goals a design must meet, such as holding 500 g or traveling 2 m.
- Constraints are limits on the design, such as time, cost, materials, size, safety rules, or environmental impact.
- A prototype is a testable model of a solution, and it can be simple, partial, full-size, or digital.
- A fair test changes only one important variable at a time while keeping other conditions the same.
- Test results should be recorded with measurements, observations, and units so the design can be judged with evidence.
- Iteration means improving a design through repeated cycles of testing, analyzing, redesigning, and retesting.
Vocabulary
- Engineering Design Process
- A structured process engineers use to define problems, develop solutions, test ideas, and improve designs.
- Criteria
- The required goals or features that a successful design must satisfy.
- Constraints
- The limits or restrictions a design must follow, such as budget, materials, time, or size.
- Prototype
- A model or early version of a design made so it can be tested and improved.
- Iteration
- The process of repeating design, testing, and improvement steps to make a solution better.
- Trade-off
- A decision where improving one feature of a design may make another feature less effective.
Common Mistakes to Avoid
- Starting to build before defining the problem is wrong because the design may not solve the actual need or meet the required criteria.
- Ignoring constraints is wrong because a solution that is too expensive, too large, unsafe, or made from unavailable materials may not be usable.
- Testing without measuring results is wrong because opinions alone do not provide strong evidence for choosing or improving a design.
- Changing many features at once during a test is wrong because it becomes difficult to know which change caused the result.
- Treating the first prototype as the final answer is wrong because engineering solutions usually improve through iteration and evidence-based redesign.
Practice Questions
- 1 A bridge design must hold at least 2 kg, use no more than 30 craft sticks, and span 40 cm. List one criterion and two constraints from this problem.
- 2 A prototype car travels 1.8 m in test 1, 2.4 m in test 2, and 2.1 m in test 3. What is the average distance traveled?
- 3 A team has a budget of 4 each, motors cost 3 per sheet. If the team buys 4 wheels, 1 motor, and 2 sheets of cardboard, how much money remains?
- 4 A design passes the strength test but is too heavy for the user to carry easily. Explain the trade-off and describe one possible improvement.
Understanding The Engineering Design Process
Engineering problems rarely have one perfect answer. A bridge made from paper, a water filter, or a phone case must balance competing needs. A stronger bridge may use more material.
A filter that removes more particles may let water pass more slowly. Good designers notice these tradeoffs early. They turn broad ideas such as strong, cheap, safe, or easy to use into measures that can be checked.
A useful goal states what will be measured, how it will be measured, and what result counts as acceptable. This prevents a team from choosing a design simply because it looks impressive. It keeps attention on the person who will use the product and the conditions where it must work.
Planning is more than drawing a neat final picture. Engineers often make several rough sketches before selecting an idea. Labels can show materials, dimensions, moving parts, forces, and possible weak points.
A prototype does not need to resemble the finished product. A cardboard model can reveal whether a shape fits in a space. A simple circuit can check whether a sensor responds.
A computer model can explore motion or airflow. Each version should answer a specific uncertainty.
Small models have limits because weight, friction, and material strength do not always scale up in the same way. Students should be careful when using results from a tiny model to make claims about a full-size design.
Testing produces evidence only when the procedure is consistent. If a vehicle travels farther on one trial, the reason might be its wheel size, the ramp angle, the floor surface, or a random push. Changing one planned feature while holding the rest steady makes the comparison more trustworthy.
Repeating trials helps reveal whether a result is reliable or just luck. Record raw results before calculating averages. Include units and describe unusual observations, such as a wheel slipping or a structure bending.
Tables make values easier to compare. Graphs can show patterns that are hard to see in a list. A design can meet one target yet fail another, so results should be checked against every important requirement rather than judged by a single number.
Improvement works best when it has a clear reason. After a test, identify the part of the design that caused the limitation and propose a change linked to the evidence. If a tower failed near its base, adding support there is more logical than changing its color or top shape.
Keep a design log with sketches, test conditions, results, decisions, and failed attempts. Failed attempts are useful when they show what did not work and why.
In school projects, communication matters because another person should be able to understand the reasoning and repeat the test. A strong final explanation describes the problem, the chosen solution, the evidence from testing, the remaining weakness, and the next change worth trying.
