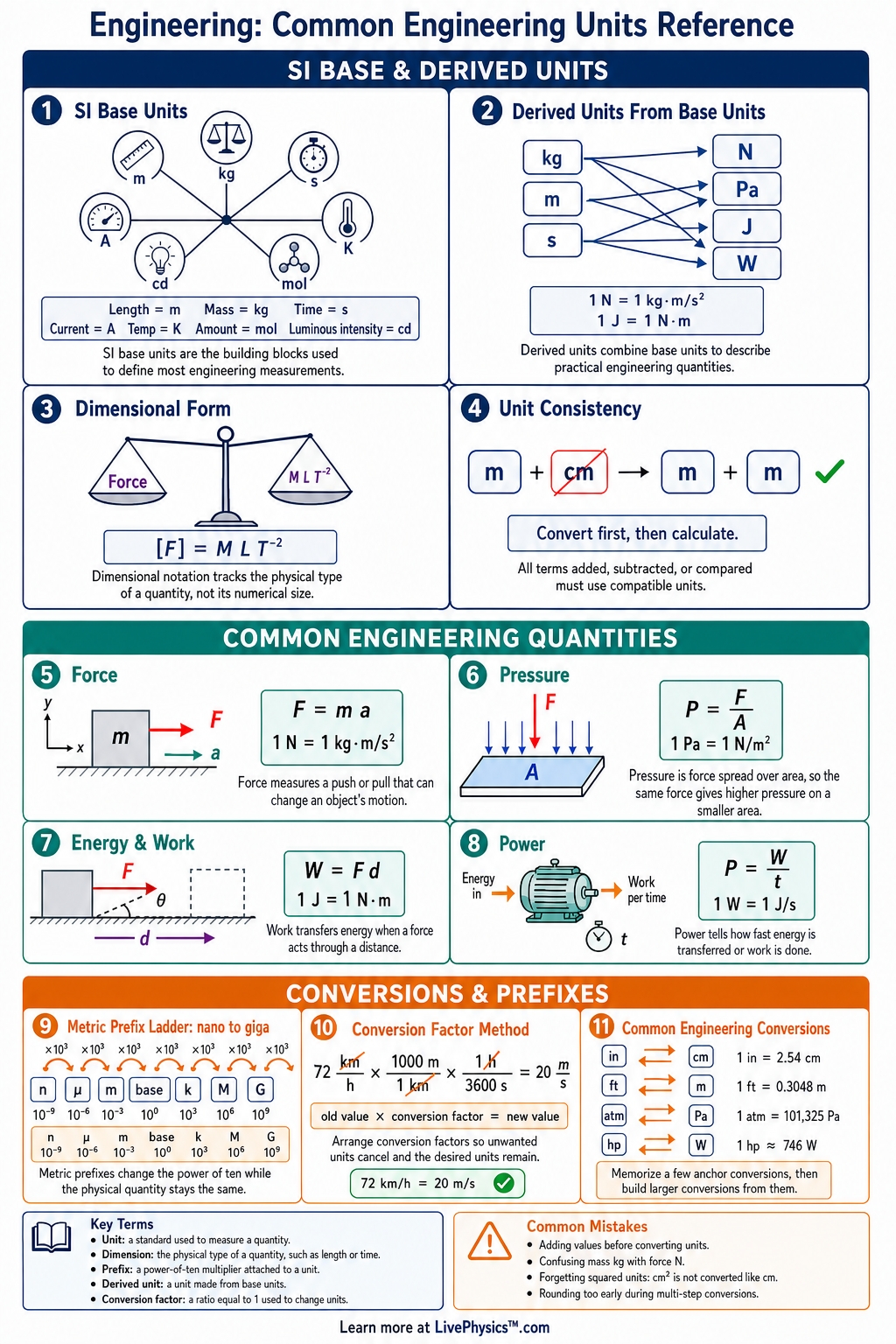

Click image to open full size
Common Engineering Units Reference Cheat Sheet
A printable reference covering SI base units, derived units, metric prefixes, unit conversions, and engineering notation for grades 9-12.
Related Tools
Related Labs
Related Worksheets
This cheat sheet covers the common units used in high school engineering, including SI base units, derived units, metric prefixes, and conversion factors. Students need it because engineering problems often combine measurements such as force, pressure, energy, power, and speed. A clear unit reference helps prevent calculation errors and makes answers easier to check. The most important ideas are using standard SI units, tracking dimensions, and converting prefixes correctly. Many engineering formulas only work if quantities are entered in compatible units, such as meters, seconds, kilograms, and newtons. Engineering notation uses powers of 10 in multiples of 3, which matches common prefixes like kilo, mega, milli, and micro.
Key Facts
- The SI base units most used in engineering are meter (m), kilogram (kg), second (s), ampere (A), kelvin (K), mole (mol), and candela (cd).
- Force is measured in newtons, and 1 N = 1 kg·m/s^2.
- Pressure or stress is measured in pascals, and 1 Pa = 1 N/m^2.
- Energy or work is measured in joules, and 1 J = 1 N·m.
- Power is measured in watts, and 1 W = 1 J/s.
- Metric prefixes change a unit by powers of 10, such as kilo = 10^3, centi = 10^-2, milli = 10^-3, and micro = 10^-6.
- Engineering notation writes numbers as a value from 1 to less than 1000 times 10^n, where n is a multiple of 3.
- To convert units, multiply by conversion factors that equal 1, such as 1000 mm/1 m or 1 m/1000 mm.
Vocabulary
- SI unit
- An SI unit is a standard measurement unit from the International System of Units, used for consistent scientific and engineering calculations.
- Derived unit
- A derived unit is a unit made by combining base units, such as newton, pascal, joule, or watt.
- Metric prefix
- A metric prefix is a symbol added before a unit to show a power of 10, such as k for kilo or m for milli.
- Conversion factor
- A conversion factor is a ratio equal to 1 that changes a measurement from one unit to another without changing its value.
- Engineering notation
- Engineering notation is a way to write numbers using powers of 10 with exponents that are multiples of 3.
- Dimensional analysis
- Dimensional analysis is the process of using units to check formulas, conversions, and final answers.
Common Mistakes to Avoid
- Mixing metric prefixes in the same formula is wrong because formulas often require consistent units, such as meters instead of millimeters or centimeters.
- Using grams instead of kilograms for mass is wrong in many SI engineering formulas because the newton is defined using kg, not g.
- Forgetting to square or cube conversion factors is wrong because area and volume conversions require powers, such as 1 m^2 = 1,000,000 mm^2.
- Treating mass and force as the same quantity is wrong because mass is measured in kilograms while force is measured in newtons.
- Rounding too early during conversions is wrong because it can create noticeable error in the final engineering result.
Practice Questions
- 1 Convert 2.5 kN to newtons.
- 2 A force of 600 N acts on an area of 0.030 m^2. What is the pressure in pascals?
- 3 Convert 75 mm to meters, then write the answer in engineering notation.
- 4 Explain why checking units can help you find a mistake before calculating the final answer.
