3D Nets and Folding Solids
Nets and Surface Area
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets

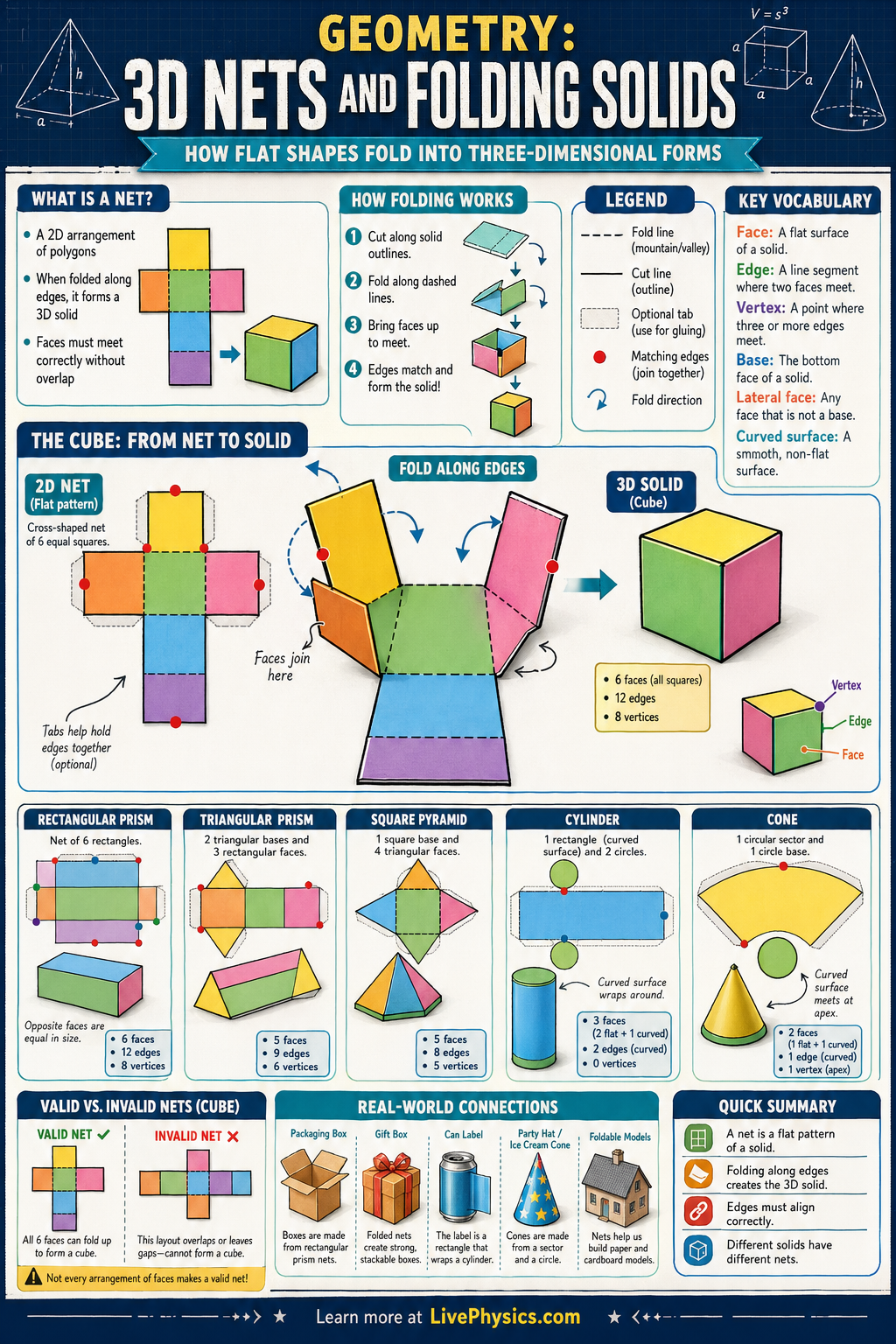

A net is a flat 2D pattern that can be folded along edges to make a 3D solid. Nets help students connect plane shapes like squares, rectangles, and triangles to solids like cubes, prisms, and pyramids. This idea matters in geometry, packaging, engineering, and design because many real objects are first planned as flat layouts. Learning nets also strengthens spatial reasoning, which is the ability to imagine how shapes move and fit together in space.
When a net folds correctly, each face meets the right neighboring faces without gaps or overlaps. The lengths of matching edges must be equal, and the arrangement of faces must allow the solid to close completely. Fold lines act like hinges, and tabs may be added in real construction to glue faces together, though tabs are not counted as faces. By studying nets, students can predict surface area, identify faces, edges, and vertices, and decide whether a flat pattern can actually form a given solid.
Key Facts
- A net is a 2D arrangement of polygons that folds to form a 3D solid.
- Surface area of a solid = of the areas of all faces in its net.
- For a cube with side length , surface area = .
- For a rectangular prism with length l, width w, and height h, surface area = 2(lw + lh + wh).
- A valid net must have matching edge lengths where faces meet when folded.
- Tabs help attach faces in models, but tabs are not part of the geometric surface area.
Vocabulary
- Net
- A flat pattern of faces that can be folded to make a three dimensional solid.
- Face
- A flat surface on a three dimensional solid.
- Edge
- A line segment where two faces of a solid meet.
- Vertex
- A point where edges meet on a solid.
- Surface area
- The total area of all the outer faces of a three dimensional solid.
Common Mistakes to Avoid
- Counting tabs as faces, which is wrong because tabs are only for attaching parts of a model and do not belong to the solid's surface.
- Assuming any arrangement of the correct faces makes a valid net, which is wrong because some layouts overlap or fail to close when folded.
- Ignoring edge lengths, which is wrong because faces can only join if the touching edges are equal in length.
- Finding surface area from only the visible faces of the folded solid, which is wrong because surface area includes every outside face shown in the full net.
Practice Questions
- 1 A cube has side length 4 cm. Draw or imagine its net and find its total surface area.
- 2 A rectangular prism has length 5 cm, width 3 cm, and height 2 cm. Using its net, calculate the total surface area.
- 3 A flat pattern has six congruent squares, but two of the squares are attached in a way that would overlap when folded. Explain why this pattern is not a valid cube net.
