When a guitar string, air column, or vocal cord vibrates, it usually does not produce just one frequency. The lowest frequency is the fundamental, which sets the perceived pitch, while higher frequencies called harmonics or overtones are produced at the same time. These extra frequencies give sounds their richness and help us tell one instrument from another even when they play the same note.
Understanding harmonics connects wave physics to music, acoustics, and instrument design.
In many systems, standing waves form so that only certain vibration patterns are allowed. For a string fixed at both ends, the allowed frequencies are whole-number multiples of the fundamental, so fn = n f1. The pattern of amplitudes across these frequencies is part of the sound spectrum, and it strongly affects timbre.
Musicians, engineers, and physicists use this idea to tune instruments, analyze sound, and design spaces and devices with better acoustic performance.

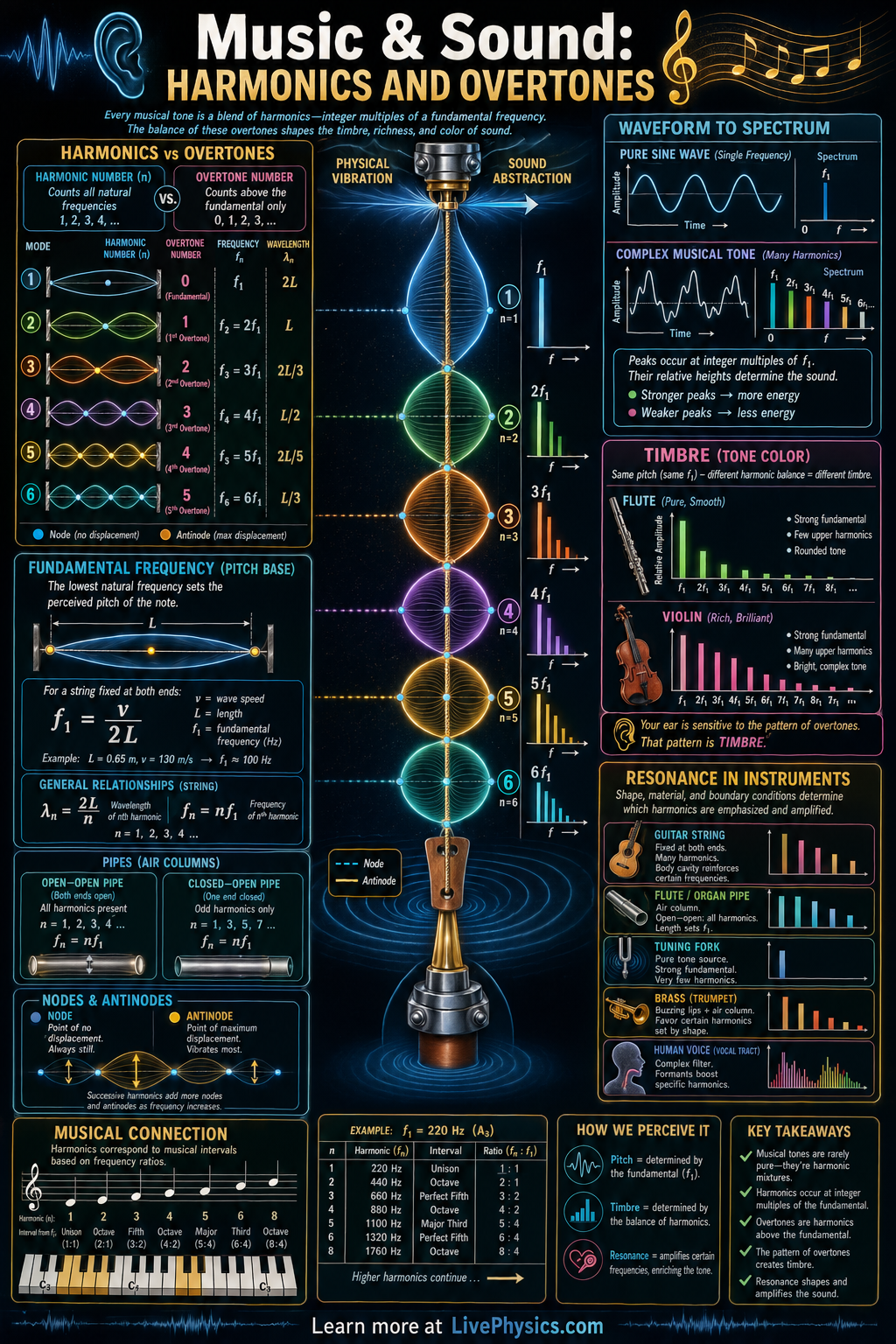

Understanding Harmonics and Overtones
A vibrating string can move in several shapes at once. In the simplest shape, the middle swings the most while the ends stay still. In higher shapes, extra still points appear along the string.
These still points are called nodes. The moving regions between them are called antinodes. A plucked string naturally contains a mixture of these shapes.
Where the player plucks matters. Plucking near the middle tends to weaken some higher patterns.
Plucking close to the bridge excites more high frequencies, giving a brighter and sharper sound. This is why the same guitar string can produce different tone colors before any electronic effects are used.
Real instruments are not ideal strings. A piano string is stiff, so its higher vibrations can be slightly sharper than exact whole-number multiples. This effect is called inharmonicity.
Piano tuners allow a small spread in the highest and lowest notes so octaves sound more pleasing to the ear. Wind instruments have their own limits. An open pipe supports a different set of standing wave patterns from a pipe closed at one end.
This helps explain why a clarinet has a strong odd-harmonic character, while a flute often has a smoother sound. The material, shape, holes, and mouthpiece all change which frequencies are strengthened.
The body of an instrument acts as a resonator. It does not create the original vibration, but it responds strongly to certain frequencies and transfers sound into the air. The wooden body of a violin, the hollow box of a guitar, and the metal tube of a trumpet each favor different frequency ranges.
These resonances form peaks in the spectrum. They help create the recognizable sound of the instrument.
A singer changes the shape of the mouth and throat to move resonances called formants. The vocal cords may keep the same pitch, yet the changed formants can make one vowel sound different from another.
Sound changes over time, not only across frequency. The first instant of a note is called the attack. A drumstick striking a cymbal, a bow catching a violin string, or air beginning to flow through a flute creates brief frequency patterns that help the brain identify the source.
Two sounds can have similar steady spectra but still seem different because their attacks differ. When learning this topic, separate pitch from timbre and separate the vibration source from the resonating body.
Listening with a spectrum analyzer can help, but careful listening matters first. Notice brightness, buzziness, warmth, and the way a note begins and fades.
Key Facts
- The fundamental frequency is the lowest natural frequency of vibration and usually determines pitch.
- For an ideal string fixed at both ends, fn = n f1 where n = 1, 2, 3, ...
- For a string, f1 = v/(2L), so shorter strings or faster wave speed give higher pitch.
- The nth harmonic has n antinodes and wavelength lambda_n = 2L/n for a fixed string.
- Overtones are frequencies above the fundamental; first overtone = second harmonic.
- Timbre depends on the relative amplitudes of the fundamental and higher harmonics in the spectrum.
Vocabulary
- Fundamental frequency
- The lowest frequency produced by a vibrating system and the one most responsible for the perceived pitch.
- Harmonic
- A frequency that is an integer multiple of the fundamental frequency.
- Overtone
- Any frequency above the fundamental that is present in the sound.
- Standing wave
- A vibration pattern with fixed nodes and antinodes formed by the interference of waves traveling in opposite directions.
- Timbre
- The quality or tone color of a sound that depends on the mix and strength of its harmonics.
Common Mistakes to Avoid
- Confusing harmonics with overtones, because the numbering is different. The second harmonic is the first overtone, so the labels do not increase in the same way.
- Assuming pitch depends on the loudest frequency only, which is wrong for many real sounds. The fundamental usually sets pitch even if some higher harmonic has greater amplitude.
- Forgetting that harmonics on an ideal string are integer multiples of the fundamental. Using noninteger multiples gives frequencies that do not match the allowed standing wave modes.
- Thinking timbre and pitch are the same thing, which mixes up two different ideas. Pitch is mainly linked to frequency, while timbre depends on the full harmonic content.
Practice Questions
- 1 A string has a fundamental frequency of 220 Hz. Find the frequencies of the second, third, and fourth harmonics.
- 2 A string fixed at both ends has length 0.80 m and wave speed 320 m/s. Calculate its fundamental frequency and its third harmonic.
- 3 A flute and a violin both play the same fundamental note, but they sound different. Explain how harmonics and their amplitudes cause this difference in timbre.
