Wind instruments turn moving air into organized vibrations that our ears hear as musical notes. Although flutes, clarinets, trumpets, and organ pipes look very different, they all rely on the same core physics of resonance, wave reflection, and energy transfer. The shape and length of the air column strongly affect pitch, while the way the player excites the air affects tone and loudness.
Studying these instruments connects music to waves, acoustics, and even fluid flow.
Inside a wind instrument, the player creates a disturbance that sets the air column into vibration. Reflections at open holes, closed ends, reeds, or mouthpieces produce standing waves, and only certain frequencies resonate strongly. Changing fingerings, valves, slide position, or embouchure changes the effective tube length or the boundary conditions, which changes the resonant frequencies.
The instrument body then radiates sound outward, and its material and shape help determine the final timbre that reaches the listener.

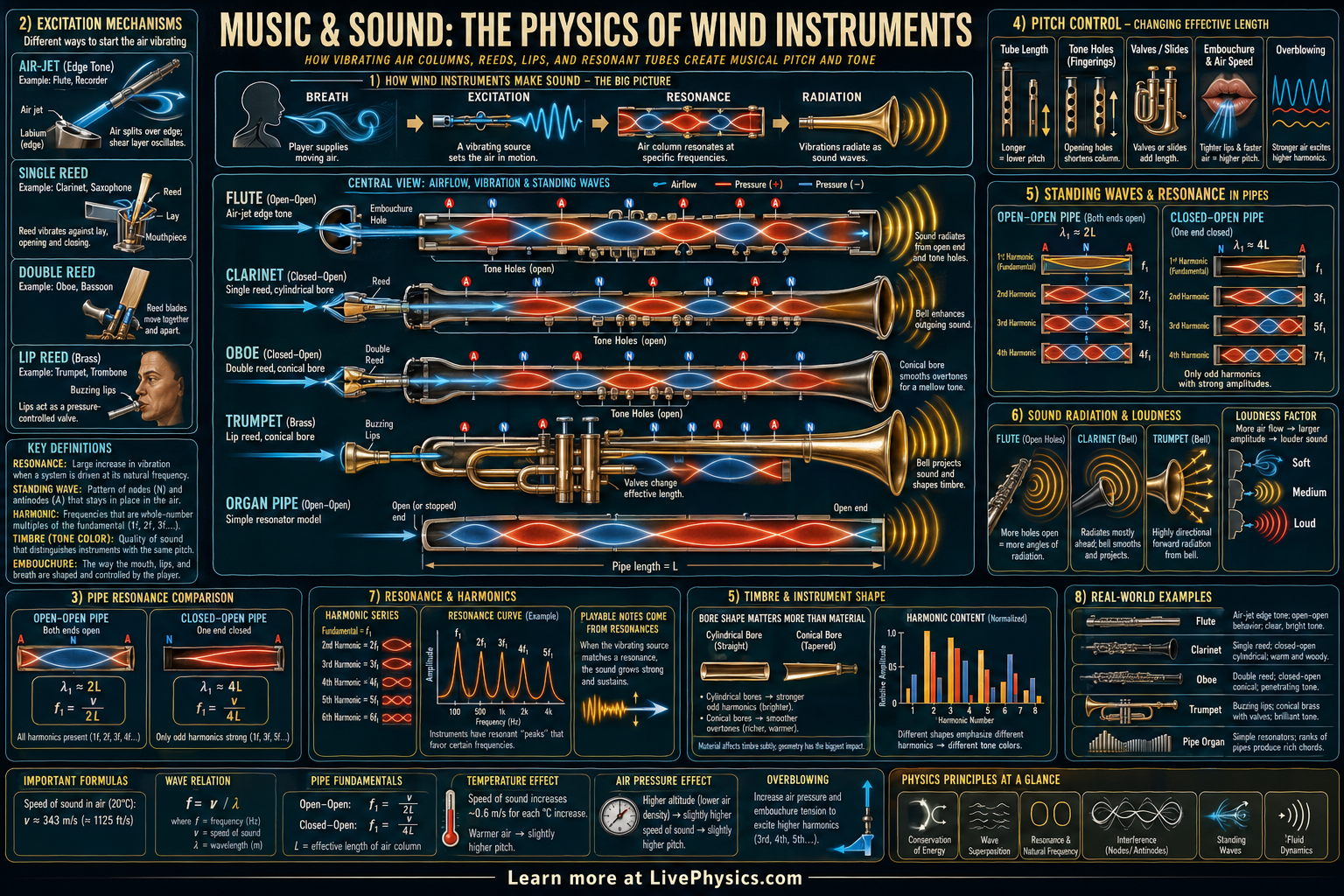

Understanding The Physics of Wind Instruments
A useful way to picture the sound inside a tube is to separate the motion of air from changes in air pressure. The air does not travel all the way from the mouthpiece to the bell on each note. Instead, tiny regions of air move back and forth while pressure rises and falls.
At an open end, the pressure must stay close to outside air pressure. This creates a pressure node. At a sealed end, air cannot move freely, so the pressure change is largest there.
This creates a pressure antinode. These limits decide which vibration patterns can fit inside the instrument.
The physical length of an instrument is not always its acoustic length. Sound slightly extends beyond an open hole or the bell before the pressure fully matches the outside air. This effect is called end correction.
It helps explain why a simple ruler measurement does not predict an exact pitch. Finger holes work because the first open hole usually acts like the new end of the air column. A larger open hole gives a stronger escape path for the pressure wave.
Leaks around poorly covered holes can make notes weak, breathy, or out of tune. This is why careful finger placement matters on recorders, flutes, clarinets, and saxophones.
Players can often produce more than one note with the same tube length. They do this by exciting a higher vibration pattern, often called a register or partial. On a flute, faster and more focused air can encourage a higher pattern.
On a clarinet, opening the register key changes the pressure conditions enough to favor a higher odd partial. Brass players change lip tension, lip opening, and air pressure to select different resonances of the tubing. Valves or a slide then adjust the tube length so that a useful set of notes becomes available.
The player does not force any frequency equally well. Some frequencies receive energy efficiently because they match a resonance, while others quickly die away.
The sound quality of an instrument depends on more than its lowest note. A reed does not move in a perfectly smooth way, so it creates many frequency components at once. The air column strengthens some of those components and weakens others.
That pattern gives a clarinet its woody sound and a saxophone its brighter, fuller sound. A trumpet bell helps sound escape into the room and affects how the upper resonances line up. Temperature matters in rehearsals and concerts because warmer air carries sound faster, making the pitch rise slightly.
Students should pay attention to the difference between pitch, loudness, and timbre. Pitch depends mainly on vibration frequency.
Loudness depends on vibration size. Timbre depends on the mixture of resonances that remains in the sound.
Key Facts
- For a tube open at both ends, the fundamental frequency is f1 = v/(2L).
- For a tube closed at one end, the fundamental frequency is f1 = v/(4L).
- Wave speed in air is approximately v = 343 m/s at room temperature.
- Frequency and wavelength are related by v = fλ.
- Open-open tubes support harmonics fn = nv/(2L), where n = 1, 2, 3, ...
- Open-closed tubes support only odd harmonics fn = nv/(4L), where n = 1, 3, 5, ...
Vocabulary
- Resonance
- Resonance is the strong vibration that occurs when a system is driven at one of its natural frequencies.
- Standing wave
- A standing wave is a vibration pattern with fixed nodes and antinodes formed by overlapping waves traveling in opposite directions.
- Embouchure
- Embouchure is the way a player shapes the lips and mouth to control airflow into a wind instrument.
- Harmonic
- A harmonic is a resonant frequency that is a whole number multiple of the fundamental frequency in an open tube.
- Timbre
- Timbre is the characteristic tone color of a sound determined by its harmonic content and sound envelope.
Common Mistakes to Avoid
- Assuming the physical length always equals the vibrating air-column length, because open holes and mouthpiece geometry can change the effective length that sets the pitch.
- Using f1 = v/(2L) for every instrument, because tubes closed at one end such as many reed or brass approximations follow different boundary conditions and often use f1 = v/(4L).
- Thinking louder playing always means higher pitch, because loudness mainly depends on amplitude while pitch depends primarily on frequency.
- Believing the instrument material alone determines the note, because pitch is set mostly by air-column resonance while material affects tone quality and sound radiation more than basic frequency.
Practice Questions
- 1 A flute can be approximated as an open-open tube of length 0.66 m. Using v = 343 m/s, find its fundamental frequency.
- 2 A clarinet can be approximated as a tube closed at one end with length 0.60 m. Using v = 343 m/s, calculate its fundamental frequency.
- 3 Two instruments play the same note, but one sounds bright and piercing while the other sounds warm and mellow. Explain in terms of harmonics, resonance, and sound radiation why their timbre can differ even when the fundamental frequency is the same.
