An electric generator converts mechanical energy into electrical energy using the physics of electromagnetic induction. This idea is central to power plants, wind turbines, hydroelectric dams, and many portable generators. When a coil of wire and a magnetic field move relative to each other, a voltage is produced across the wire.
That voltage can drive current through a circuit and deliver energy to devices such as lights, motors, and computers.

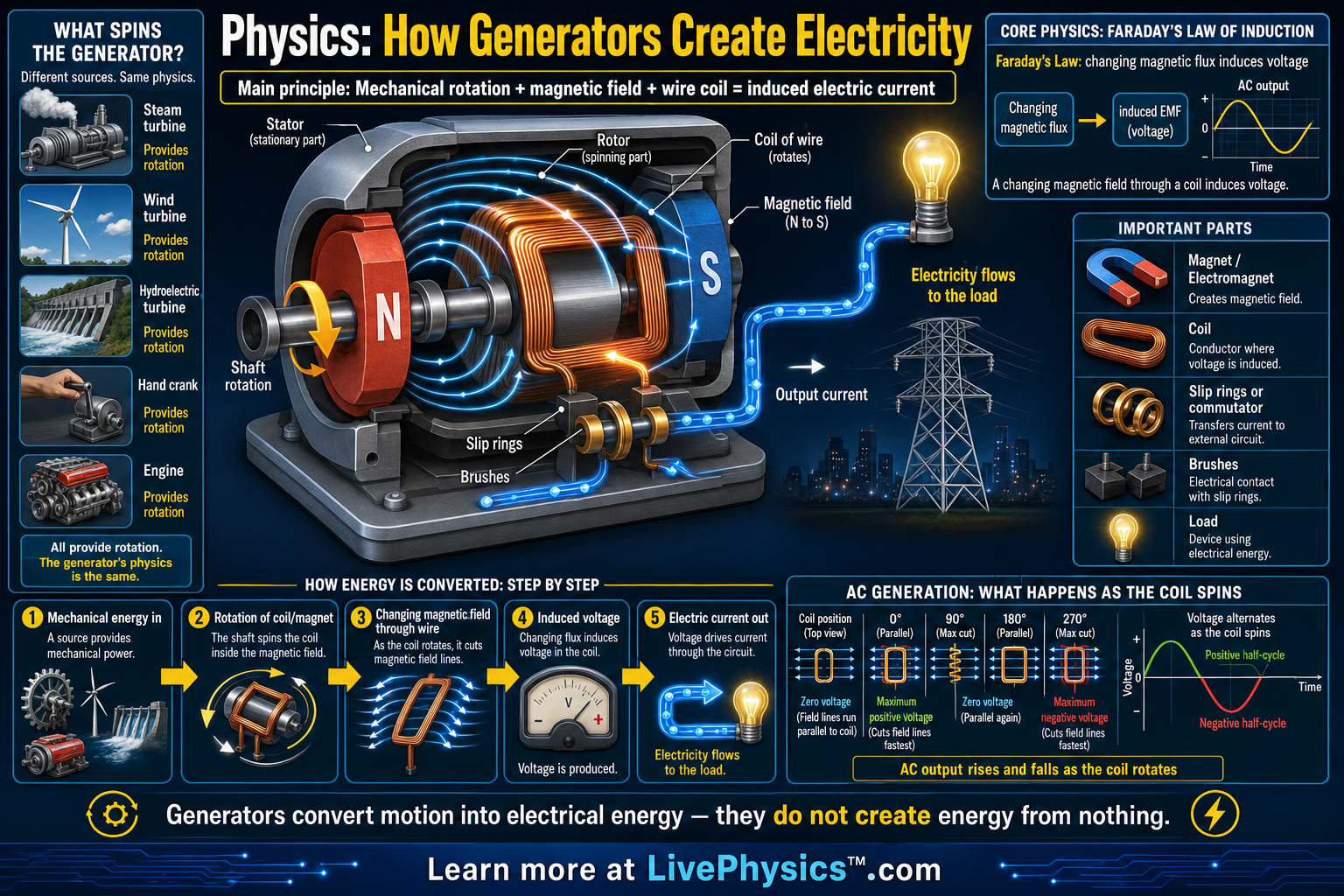

Inside a simple generator, a coil rotates between the north and south poles of a magnet, or a magnet spins inside a stationary coil. As the coil turns, the magnetic flux through it changes, and Faraday's law says this changing flux creates an induced emf. The direction of the induced current follows Lenz's law, meaning the current creates a magnetic effect that opposes the change that produced it.
Faster rotation, stronger magnets, more coil turns, and larger coil area all increase the generated voltage.
Understanding How Generators Create Electricity
At the level of charges, generation begins with a force on electrons in a moving conductor. Electrons in the wire are carried through a magnetic field as the rotor turns. The magnetic field deflects them toward one end of the wire.
This separation of charge produces a potential difference, which is another name for voltage. If the circuit is open, charges build up only until their electric push balances the magnetic effect. If the circuit is closed, charges can keep moving through the external circuit.
The generator then transfers energy to the circuit. The magnetic field guides this process, but the turning shaft supplies the energy.
The voltage from a basic rotating coil changes continuously during each turn. It is greatest when the wire cuts across magnetic field lines most effectively. It becomes zero briefly when the coil moves in a direction that produces no cutting effect.
The voltage then reverses because the two sides of the coil exchange their positions relative to the magnetic poles. This produces alternating current. A generator with two magnetic poles makes one electrical cycle for every mechanical turn.
More magnetic poles can produce more electrical cycles at the same shaft speed. This relationship helps power stations produce the standard grid frequencies of fifty or sixty cycles each second.
A useful detail is what happens when a generator is connected to a load. A small generator can spin freely when nothing is plugged in. Once a lamp, heater, or charger draws current, the rotor becomes harder to turn.
The current in the coil creates its own magnetic field. That field produces a turning effect that resists the motion of the rotor. More electrical power taken from the generator requires more mechanical power from the turbine, engine, hand crank, or other driver.
This resistance is not wasted energy by itself. It is evidence that energy is being transferred. Friction and electrical resistance do cause some energy to become thermal energy, so real generators are never perfectly efficient.
Different designs deliver electricity in different forms. Slip rings keep each rotating coil end connected to an external circuit and allow alternating current to leave the machine. A split ring commutator reverses the connection every half turn, giving a one-direction output with pulses.
Many modern machines instead make alternating current first, then use electronic rectifiers when direct current is needed. Students can see these ideas in bicycle dynamos, car alternators, hand-crank torches, wind turbines, and emergency generators. When studying generator problems, track the direction of motion, the field direction, and the circuit path separately.
Check whether the question asks for voltage, current, frequency, power, or efficiency. These quantities are connected, but they are not interchangeable.
Key Facts
- Faraday's law: emf = -N ΔΦ/Δt
- Magnetic flux: Φ = B A cosθ
- For a rotating coil: emf = N B A ω sin(ωt)
- Increasing the number of turns N increases the induced voltage.
- A generator converts mechanical energy into electrical energy, not magnetic energy into free energy.
- Lenz's law: the induced current opposes the change in magnetic flux that caused it.
Vocabulary
- Generator
- A device that converts mechanical energy into electrical energy by electromagnetic induction.
- Electromagnetic induction
- The production of an emf or current in a conductor due to a changing magnetic flux.
- Magnetic flux
- A measure of how much magnetic field passes through a surface, given by Φ = B A cosθ for a uniform field.
- Emf
- Electromotive force is the voltage produced by a source such as a generator or battery.
- Lenz's law
- A rule stating that an induced current flows in a direction that opposes the change in magnetic flux.
Common Mistakes to Avoid
- Thinking a generator creates energy from nothing. It is wrong because the electrical energy comes from mechanical work done to spin the coil or magnet.
- Using magnetic field strength B alone instead of magnetic flux Φ. It is wrong because induction depends on the changing amount of field passing through an area, not just the field value.
- Forgetting the number of coil turns N in Faraday's law. It is wrong because each loop adds to the total induced emf, so more turns can greatly increase voltage.
- Assuming current is induced whenever a wire is near a magnet. It is wrong because a changing magnetic flux is required, so there must be relative motion or a changing magnetic field.
Practice Questions
- 1 A coil has 200 turns, and the magnetic flux through each turn changes from 0.030 Wb to 0.005 Wb in 0.10 s. What is the magnitude of the average induced emf?
- 2 A rectangular coil with 150 turns has area 0.020 m² and rotates in a 0.40 T magnetic field at angular speed 60 rad/s. What is the maximum emf produced?
- 3 A generator becomes harder to turn when a light bulb is connected to it. Explain why this happens using energy conservation and Lenz's law.
