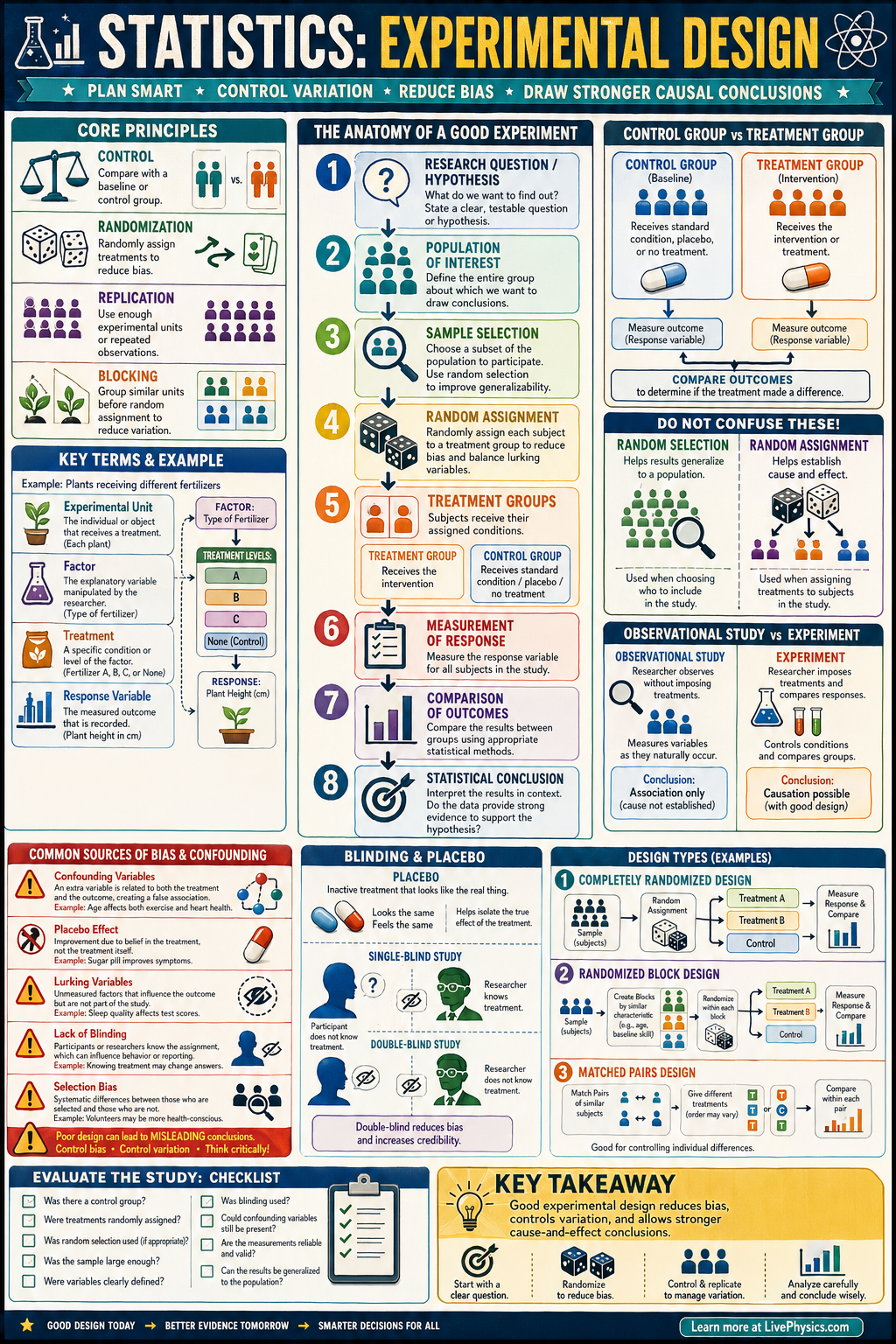

Experimental Design infographic - Controls, Treatment Groups & Random Assignment

Click image to open full size

Experimental design is the plan scientists use to collect data in a fair, organized, and meaningful way. A strong design helps researchers answer a question while reducing bias and random error. In statistics, the quality of the conclusions depends heavily on how the study was set up before any data were collected. Good experimental design matters in medicine, psychology, agriculture, engineering, and many other fields.

A well designed experiment begins with a clear research question and a defined population of interest. Researchers then choose subjects, assign treatments, control outside variables, and measure outcomes consistently. Random assignment, control groups, replication, and blinding all help separate real treatment effects from chance or bias. After data collection, statistical analysis is used to decide whether the evidence supports a conclusion about cause and effect.

Key Facts

  • An experiment imposes treatments on subjects to measure a response, while an observational study only records what happens.
  • Random assignment helps create comparable groups and reduces confounding.
  • Control group + treatment group allows researchers to compare outcomes under different conditions.
  • Replication means using enough subjects or repeated trials to estimate natural variation.
  • A completely randomized design assigns all subjects to treatments by chance alone.
  • Blocking groups similar subjects first, then randomizes within each block to reduce variability.

Vocabulary

Treatment
A treatment is a specific condition or intervention applied to subjects in an experiment.
Control group
A control group is the group that does not receive the main treatment and provides a baseline for comparison.
Random assignment
Random assignment is the use of chance to place subjects into treatment groups so the groups are similar on average.
Confounding variable
A confounding variable is an outside factor linked to both the treatment and the response that can distort the results.
Blinding
Blinding means keeping subjects, researchers, or both unaware of treatment assignments to reduce bias.

Common Mistakes to Avoid

  • Confusing random sampling with random assignment, because random sampling helps generalize to a population while random assignment supports cause and effect within the experiment.
  • Using treatment groups that differ in more than one major way, because then any difference in response could be caused by a confounding variable instead of the treatment.
  • Assuming a large sample automatically fixes bias, because a big biased sample can still produce misleading results.
  • Drawing cause and effect conclusions from an observational study, because without imposed treatments and random assignment the study cannot rule out confounding well enough.

Practice Questions

  1. 1 A school tests whether a new tutoring program improves algebra scores. Eighty students are randomly assigned so 40 use the tutoring program and 40 do not. Identify the treatment, the control group, and explain why random assignment is important.
  2. 2 A farmer wants to compare three fertilizers on 24 similar plants. She divides the plants into 3 groups of 8 and randomly assigns one fertilizer to each group. What is the number of treatments, how many experimental units are in each treatment group, and what feature of the design helps reduce bias?
  3. 3 A researcher finds that people who drink more coffee tend to score higher on an alertness test in an observational study. Explain why this result alone does not prove coffee causes higher alertness.
