CS: Animation and Simulation Concepts Worksheet

Question 1

In a computer animation, a ball moves 4 pixels to the right each frame. If the animation runs for 10 frames, how far to the right will the ball move?

Accepted Answer

The ball will move 40 pixels to the right because 4 pixels per frame multiplied by 10 frames equals 40 pixels.

Question 2

Explain the difference between an animation and a simulation.

Accepted Answer

An animation shows motion or change over time, while a simulation models a real or imagined system using rules so that users can test what might happen under different conditions.

Question 3

A sprite has an x-position of 20 and a y-position of 50. Each frame, its x-position increases by 5. What will its x-position be after 6 frames?

Accepted Answer

The sprite's x-position will be 50 because it starts at 20 and gains 5 pixels for 6 frames, which adds 30 pixels total.

Question 4

A game character should jump when the space bar is pressed. What type of programming concept is being used to detect the key press?

Accepted Answer

The program is using an event because it responds when the user presses the space bar.

Question 5

Look at this pseudocode: repeat forever: move sprite 3 steps; if sprite touches edge: turn around. What behavior will the sprite show?

Accepted Answer

The sprite will keep moving, and whenever it touches an edge of the screen, it will turn around and continue moving in the other direction.

Question 6

Why are loops useful in animation programs?

Accepted Answer

Loops are useful because animation needs repeated updates, such as changing position, checking collisions, and redrawing the screen many times per second.

Question 7

A simulation of plant growth uses sunlight, water, and soil quality as variables. Choose one of these variables and describe how changing it could affect the simulation.

Accepted Answer

Changing the water variable could affect how quickly the plant grows. For example, too little water might slow growth, while enough water might help the plant grow faster.

Question 8

A car simulation uses the rule: speed = speed + 2 each second. If the car starts at 0 meters per second, what is its speed after 5 seconds?

Accepted Answer

The car's speed will be 10 meters per second because it gains 2 meters per second each second for 5 seconds.

Question 9

In an animation, the frame rate is 30 frames per second. What does this mean?

Accepted Answer

A frame rate of 30 frames per second means the computer displays 30 separate images every second to create the appearance of motion.

Question 10

A bouncing ball simulation does not include air resistance. Explain why this is an assumption and how it might affect the simulation.

Accepted Answer

This is an assumption because the model leaves out a real force to make the simulation simpler. Without air resistance, the ball may bounce or move in a way that is less realistic than a real ball.

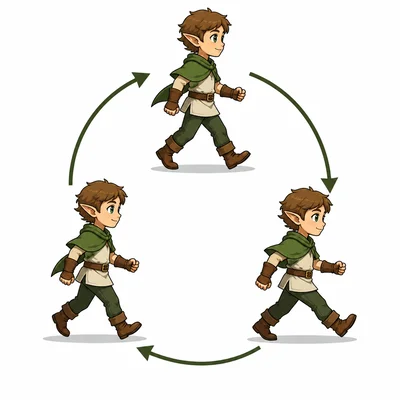

Question 11

A sprite changes costumes in this pattern: walk1, walk2, walk3, walk1, walk2, walk3. What animation idea does this demonstrate?

Accepted Answer

This demonstrates cycling through frames or costumes to create the illusion of walking motion.

Question 12

A fish simulation uses random numbers to choose each fish's starting location. Why might randomness make the simulation more realistic?

Accepted Answer

Randomness can make the simulation more realistic because real fish would not all start in the exact same place or move in exactly the same way.

Question 13

A student writes code for a sprite to move right, but the sprite moves left. Name one thing the student should check while debugging.

Accepted Answer

The student should check whether the x-position is being decreased instead of increased, because decreasing x usually moves a sprite left on the screen.

Question 14

In a simple collision detection system, two sprites are considered to collide when their shapes overlap. Give one example of what a program might do after detecting a collision.

Accepted Answer

After detecting a collision, the program might make a sound, increase the score, stop a character, remove an object, or make the sprites bounce apart.

Question 15

A simulation of a city traffic light uses three states: red, yellow, and green. Explain why states are useful in this type of program.

Accepted Answer

States are useful because they let the program keep track of the traffic light's current condition and decide what should happen next, such as changing from green to yellow and then to red.
