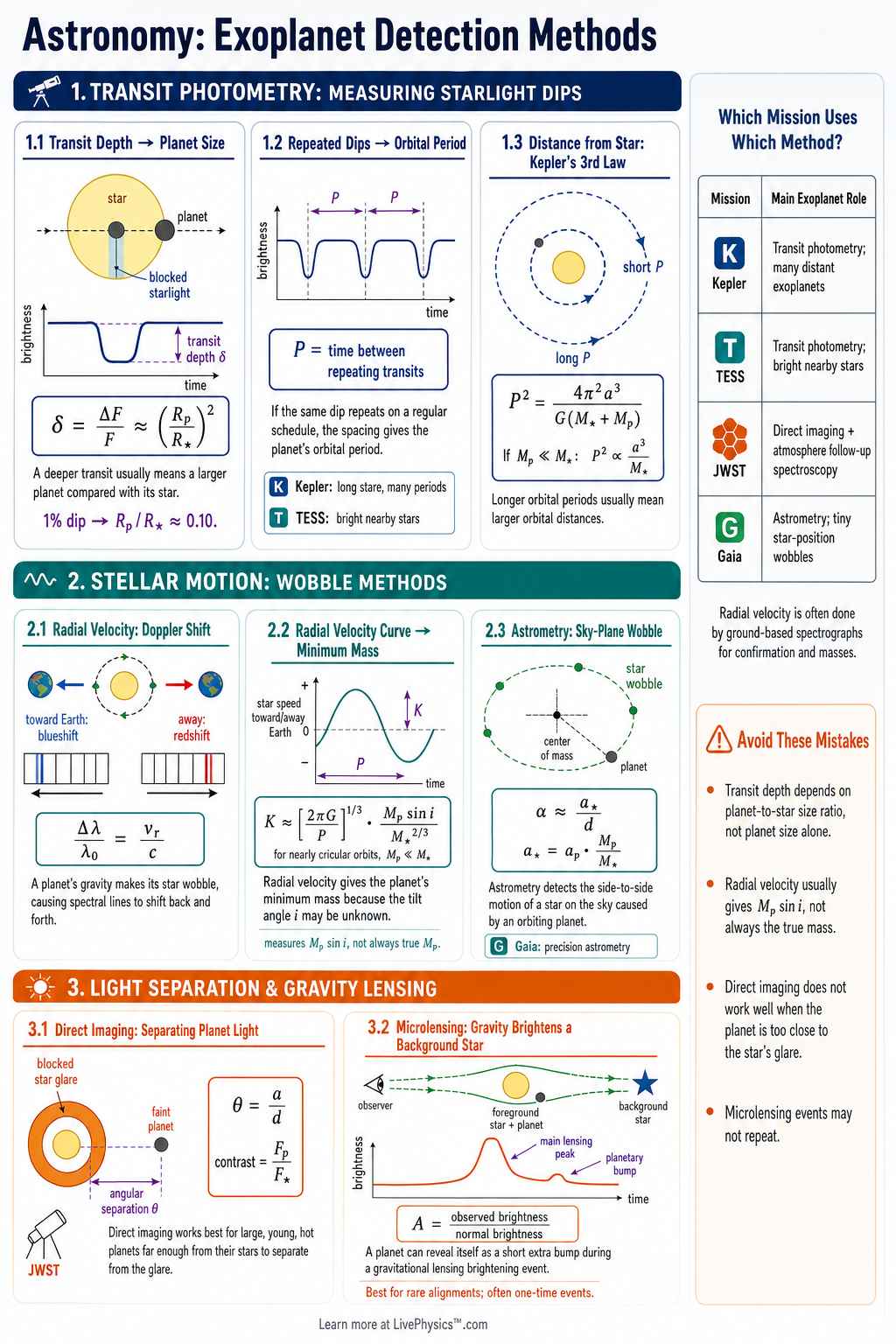

Click image to open full size
Exoplanet Detection Methods Cheat Sheet
A printable reference covering transits, radial velocity, direct imaging, microlensing, astrometry, and key detection formulas for grades 9-12.
Related Labs
Related Worksheets
Exoplanet detection methods are the tools astronomers use to find planets orbiting stars beyond our solar system. This cheat sheet helps students compare the main techniques, the measurements they use, and the kinds of planets each method finds best. It is useful because most exoplanets cannot be seen directly, so astronomers infer their presence from changes in starlight, motion, or gravity. Understanding these methods connects physics, light, motion, and data analysis in modern astronomy. Transit photometry measures a small dip in a star's brightness when a planet crosses in front of it. Radial velocity measures the back-and-forth motion of a star caused by an orbiting planet's gravity. Direct imaging tries to separate the faint light of a planet from the bright light of its star, while microlensing detects planets through gravity bending light from a distant background star. Key formulas include transit depth = (planet radius / star radius)^2 and orbital period relationships from Kepler's third law.
Key Facts
- Transit depth is approximately delta = (Rp / Rs)^2, where Rp is planet radius and Rs is star radius.
- A larger transit depth usually means a larger planet compared with its star.
- The orbital period is the time between repeated transits or repeated radial velocity cycles.
- Kepler's third law for a planet orbiting a star is P^2 = a^3 when P is in years, a is in AU, and the star has about one solar mass.
- Radial velocity detects Doppler shifts, where light shifts slightly toward blue as a star moves toward us and toward red as it moves away.
- The radial velocity method is most sensitive to massive planets close to their stars because they cause larger stellar wobbles.
- Direct imaging works best for young, hot, massive planets far from their stars because they are brighter and easier to separate from starlight.
- Microlensing can detect planets far from Earth by using the gravity of a star and planet to briefly magnify light from a background star.
Vocabulary
- Exoplanet
- An exoplanet is a planet that orbits a star outside our solar system.
- Transit
- A transit occurs when a planet passes in front of its star and blocks a small amount of the star's light.
- Radial Velocity
- Radial velocity is the motion of a star toward or away from Earth, measured using Doppler shifts in its spectrum.
- Doppler Shift
- A Doppler shift is a change in the observed wavelength of light caused by motion between the source and the observer.
- Direct Imaging
- Direct imaging is the method of detecting an exoplanet by capturing light from the planet itself.
- Microlensing
- Microlensing is a detection method in which gravity from a star and planet bends and magnifies light from a more distant star.
Common Mistakes to Avoid
- Confusing transit depth with planet size, because transit depth gives the planet's size only relative to the star using delta = (Rp / Rs)^2.
- Assuming every planet transits its star, because a transit is visible only when the orbit is lined up nearly edge-on from Earth's viewpoint.
- Thinking radial velocity measures a planet directly, because it actually measures the star's wobble caused by the planet's gravity.
- Ignoring the star's size and mass, because the same signal can mean different planet properties around different types of stars.
- Treating one dip in brightness as proof of a planet, because starspots, eclipsing binary stars, or instrument errors can create false positives.
Practice Questions
- 1 A planet has radius 1 Earth radius and its star has radius 10 Earth radii. What is the transit depth using delta = (Rp / Rs)^2?
- 2 A star's brightness drops by 0.01 during a transit. What is Rp / Rs?
- 3 A planet orbiting a Sun-like star has an orbital period of 8 years. Using P^2 = a^3, what is its orbital distance a in AU?
- 4 Why are transit and radial velocity surveys more likely to find large planets close to their stars than small planets far away?
