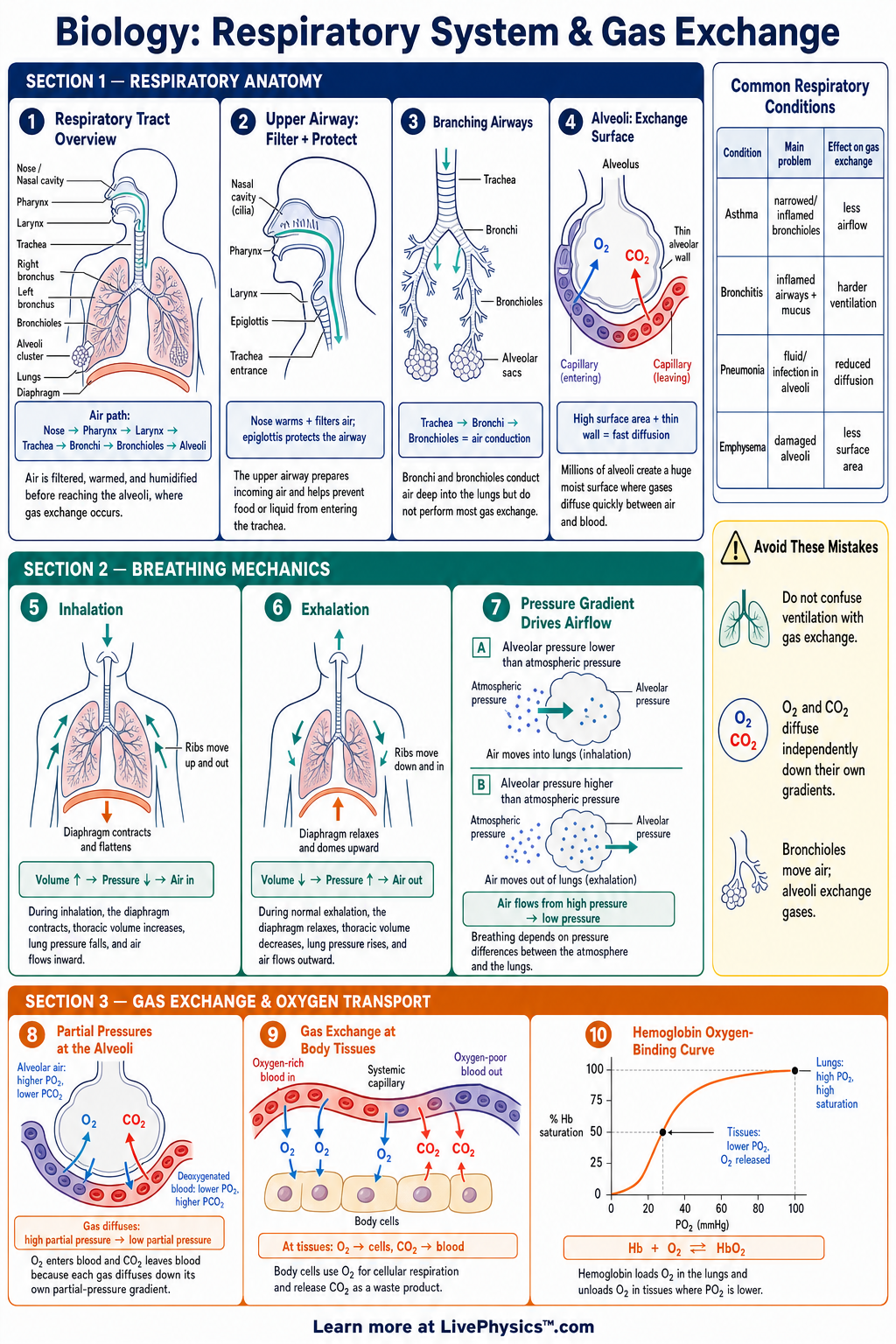

Respiratory System & Gas Exchange Cheat Sheet
A printable reference covering respiratory anatomy, breathing mechanics, alveolar gas exchange, diffusion, and oxygen transport for grades 8-12.
Related Labs
Related Worksheets
The respiratory system brings oxygen into the body and removes carbon dioxide made by cells. This cheat sheet helps students connect anatomy, breathing mechanics, and gas exchange in one clear reference. It is useful for reviewing how air moves, how gases diffuse, and how oxygen reaches body tissues. These ideas support topics in human biology, physiology, and health science.
Key Facts
- The main path of inhaled air is nose or mouth, pharynx, larynx, trachea, bronchi, bronchioles, and alveoli.
- Inhalation occurs when the diaphragm contracts and moves downward, increasing thoracic volume and lowering lung pressure below atmospheric pressure.
- Exhalation at rest occurs when the diaphragm relaxes, thoracic volume decreases, and lung pressure rises above atmospheric pressure.
- Boyle's law explains breathing mechanics: when volume increases, pressure decreases, and when volume decreases, pressure increases.
- Gas exchange occurs by diffusion from higher partial pressure to lower partial pressure across the thin alveolar-capillary membrane.
- Oxygen diffuses from alveoli into blood because PO2 is higher in alveoli than in deoxygenated blood.
- Carbon dioxide diffuses from blood into alveoli because PCO2 is higher in deoxygenated blood than in alveolar air.
- Most oxygen is transported by hemoglobin in red blood cells, and oxygen saturation estimates the percent of hemoglobin binding sites carrying oxygen.
Vocabulary
- Alveoli
- Tiny air sacs in the lungs where oxygen and carbon dioxide are exchanged with the blood.
- Diaphragm
- A dome-shaped muscle below the lungs that contracts to help draw air into the lungs.
- Bronchioles
- Small branching airways that carry air from the bronchi toward the alveoli.
- Diffusion
- The movement of particles from an area of higher concentration or partial pressure to an area of lower concentration or partial pressure.
- Partial Pressure
- The pressure contributed by one gas in a mixture of gases, such as oxygen or carbon dioxide in air or blood.
- Hemoglobin
- A protein in red blood cells that binds oxygen and helps transport it through the bloodstream.
Common Mistakes to Avoid
- Saying the lungs actively pull air in is inaccurate because the diaphragm and rib muscles change chest volume, which changes pressure and moves air.
- Reversing the pressure-volume relationship is wrong because Boyle's law states that increasing volume lowers pressure, while decreasing volume raises pressure.
- Thinking gas exchange happens mainly in the bronchi is wrong because bronchi conduct air, while alveoli provide the thin, moist surface for diffusion.
- Assuming oxygen and carbon dioxide move because the body chooses them to move is incorrect because both gases diffuse down their partial pressure gradients.
- Confusing ventilation with respiration is a common error because ventilation is air movement in and out of the lungs, while cellular respiration is energy release in cells.
Practice Questions
- 1 During inhalation, thoracic volume increases from 3.0 L to 3.6 L. If the starting lung pressure is 1.0 atm, what happens to pressure according to Boyle's law?
- 2 If alveolar PO2 is 100 mmHg and blood entering the lung capillaries has PO2 of 40 mmHg, in which direction will oxygen diffuse?
- 3 A patient has oxygen saturation of 92%. If fully saturated blood has 100 available hemoglobin binding sites in this model, about how many sites are carrying oxygen?
