Bridges let people, vehicles, and goods cross obstacles such as rivers, valleys, and roads. Their design matters because a bridge must safely carry loads for many years while resisting wind, weather, and repeated use. Engineers study how forces move through a structure so that each part of the bridge can do its job.
A good bridge balances strength, stiffness, cost, and safety.

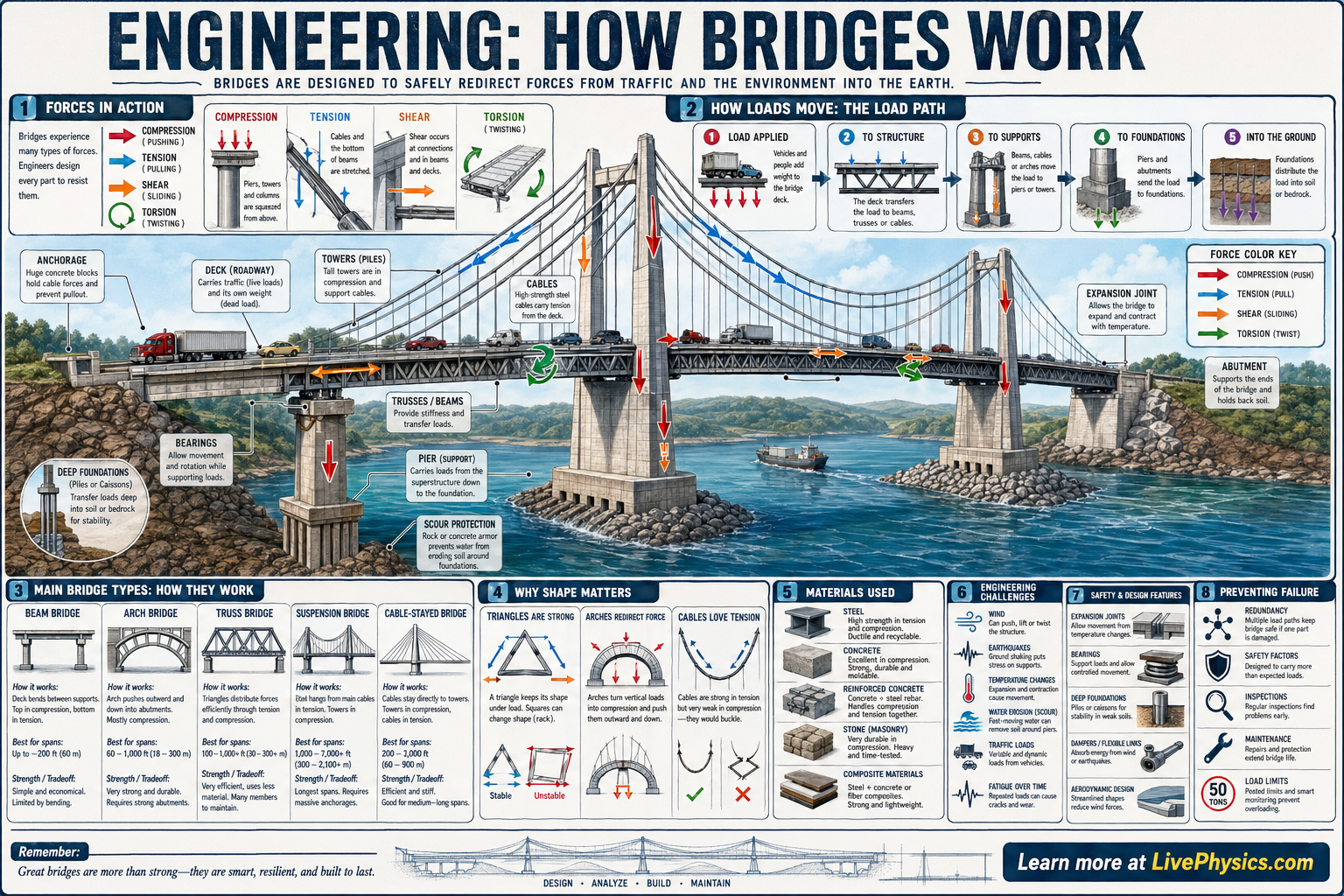

When a load such as a car or truck moves onto a bridge, its weight is transferred through the deck into beams, cables, arches, or trusses, and then into the supports and the ground. Different bridge types handle forces in different ways: beams bend, arches push outward in compression, and suspension cables carry tension. Engineers must also account for dynamic effects such as vibration, thermal expansion, and changing traffic patterns.
Understanding these load paths is the key to explaining how bridges work.
Understanding Civil Engineering: How Bridges Work
A beam bridge works because its shape creates a useful pattern of internal forces. When weight presses down between supports, the top part of the beam is squeezed and the bottom part is stretched. Near the middle is a neutral layer that changes length very little.
This is why steel beams often have an I shape. Much of the metal sits far above or below the neutral layer, where it resists bending most effectively.
The thinner central web mainly keeps those outer parts separated and carries shear force. Shear can cause one layer of material to slide past another, especially near supports.
An arch changes the direction of the load. Its curved form guides much of the force into compression along the arch ring. Stone and concrete are strong in compression, so arches can be made from these materials.
However, an arch pushes sideways at its ends. The ground, abutments, or a connecting tie must resist this outward thrust. Weak foundations can allow the supports to spread, which may crack or collapse the arch.
The shape matters greatly. A well-shaped arch follows the expected loading pattern and has less bending than a poorly shaped one. Historic masonry bridges show this principle clearly, though their safety still depends on drainage and sound mortar.
In suspension bridges, the main cables sag between tall towers. Vertical hangers connect these cables to the deck. Traffic loads pull on the hangers, then the main cables carry the force toward the towers and anchor blocks.
The cables are mainly in tension, while the towers are mainly in compression. Cable-stayed bridges use diagonal cables that run directly from towers to the deck. This gives a stiffer structure over many spans.
Truss bridges use straight members arranged as triangles. A triangle keeps its shape better than a four-sided frame because its members cannot change angle without changing length. Engineers identify which truss bars are in tension or compression, then choose member sizes that prevent stretching, crushing, or buckling.
Real bridges face loads that do not stay still. A heavy truck creates a moving pattern of bending and shear. Braking, turning, wind gusts, earthquakes, and waves can add sideways forces.
Repeated loading can start tiny cracks, especially around welds, bolts, and joints. This process is called fatigue. Long bridges expand in heat and contract in cold weather, so they need bearings and expansion joints that allow controlled movement.
Vibration needs attention too. If repeated forces match a bridge's natural motion, the movement can grow. When studying bridge diagrams, trace every load all the way to the ground.
Notice the support types, the members that are stretched or squeezed, and the places where bending is likely to be greatest. These details explain why a bridge needs inspection throughout its working life.
Key Facts
- Weight is a force: W = mg
- For a bridge in static equilibrium, sum of forces = 0 and sum of torques = 0
- Stress = force/area
- Strain = change in length/original length
- Tension pulls materials apart, while compression pushes materials together
- A larger moment from a load farther from a support increases bending: torque = rF
Vocabulary
- Load path
- The load path is the route that forces take from the bridge deck through the structure to the supports and ground.
- Tension
- Tension is a pulling force that stretches a material such as a cable or rod.
- Compression
- Compression is a pushing force that squeezes a material such as a column, arch, or concrete support.
- Truss
- A truss is a framework of connected triangles that spreads loads efficiently through tension and compression.
- Support reaction
- A support reaction is the force provided by a pier or abutment that helps hold the bridge in equilibrium.
Common Mistakes to Avoid
- Thinking the deck alone holds all the weight, which is wrong because the load must be transferred through beams, cables, arches, or trusses into supports and then the ground.
- Confusing tension with compression, which is wrong because tension pulls members apart while compression squeezes them together and different materials handle these forces differently.
- Ignoring the distance from the support, which is wrong because the same force creates more turning effect and bending when it acts farther from a support.
- Assuming a stronger bridge is always just a heavier bridge, which is wrong because efficient design depends on shape, material placement, and force distribution, not only on adding more material.
Practice Questions
- 1 A 1200 kg car is parked on a bridge. Calculate its weight using g = 9.8 m/s^2.
- 2 A horizontal beam has a 500 N load acting 4 m from a support. Calculate the torque about the support.
- 3 A suspension bridge uses main cables while an arch bridge uses a curved arch. Explain which main structural parts are mostly in tension and which are mostly in compression, and describe how each bridge transfers load to the ground.
