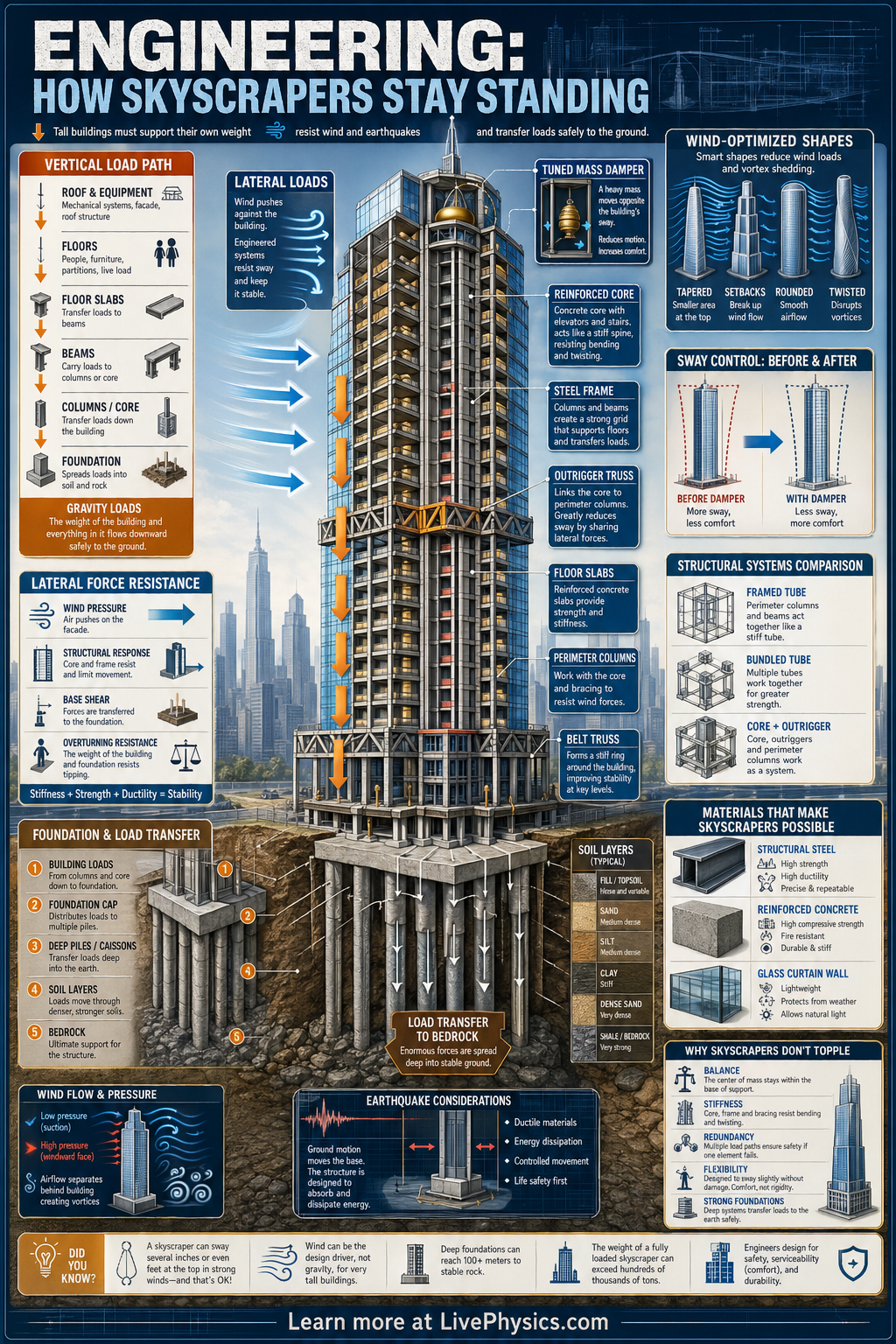

How Skyscrapers Stay Standing
Foundations, Steel Frames, and Load Paths
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
Skyscrapers stay standing because engineers carefully control how forces move through the building and into the ground. A tall building must support its own weight, the weight of people and equipment, and outside forces like wind and earthquakes. If these forces are not managed, the structure can bend, sway too much, or even fail. Good skyscraper design combines strength, stiffness, flexibility, and safety margins.
The main idea is load path, which means every force must have a continuous route from the top of the building down to the foundation. Floors transfer loads to beams, beams transfer them to columns or a central core, and the foundation spreads them into the soil or rock below. Engineers also use systems like bracing, shear walls, tuned mass dampers, and deep foundations to resist side-to-side motion and ground movement. Modern skyscrapers work because many structural parts act together as one coordinated system.
Key Facts
- Dead load is the weight of the structure itself, and live load is the weight of people, furniture, and movable equipment.
- A basic force balance idea is sum of forces = 0 and sum of torques = 0 for a structure in static equilibrium.
- Stress = Force / Area
- Pressure on the ground can be estimated by P = F / A
- Wind force generally increases with height, so upper floors often experience larger lateral loads than lower floors.
- A wider base, a stiff core, and lateral systems like bracing or shear walls help reduce bending and sway.
Vocabulary
- Load path
- The load path is the continuous route that forces follow from the building through structural members to the foundation and ground.
- Foundation
- A foundation is the lower part of a building that transfers its loads safely into soil or bedrock.
- Shear wall
- A shear wall is a stiff vertical wall that resists sideways forces from wind or earthquakes.
- Core
- The core is the strong central section of a skyscraper, often around elevators and stairs, that helps support gravity and lateral loads.
- Tuned mass damper
- A tuned mass damper is a large moving mass placed in a building to reduce vibrations and sway.
Common Mistakes to Avoid
- Thinking strength alone keeps a skyscraper stable, which is wrong because stiffness and controlled flexibility are also needed to limit sway and prevent discomfort or damage.
- Assuming all loads act straight downward, which is wrong because wind and earthquakes create important sideways forces that can control the design.
- Ignoring the foundation, which is wrong because even a strong tower can fail if the soil cannot safely carry and distribute the load.
- Believing the tallest part of the building carries the greatest stress by itself, which is wrong because lower columns and the foundation usually support the accumulated load from everything above.
Practice Questions
- 1 A skyscraper section has a total downward load of 8.0 x 10^7 N on a foundation area of 400 m^2. Calculate the average pressure on the ground.
- 2 A column carries a force of 2.4 x 10^6 N and has a cross-sectional area of 0.30 m^2. Calculate the stress in the column.
- 3 Explain why a skyscraper may be designed to sway slightly in strong wind instead of being made perfectly rigid.
