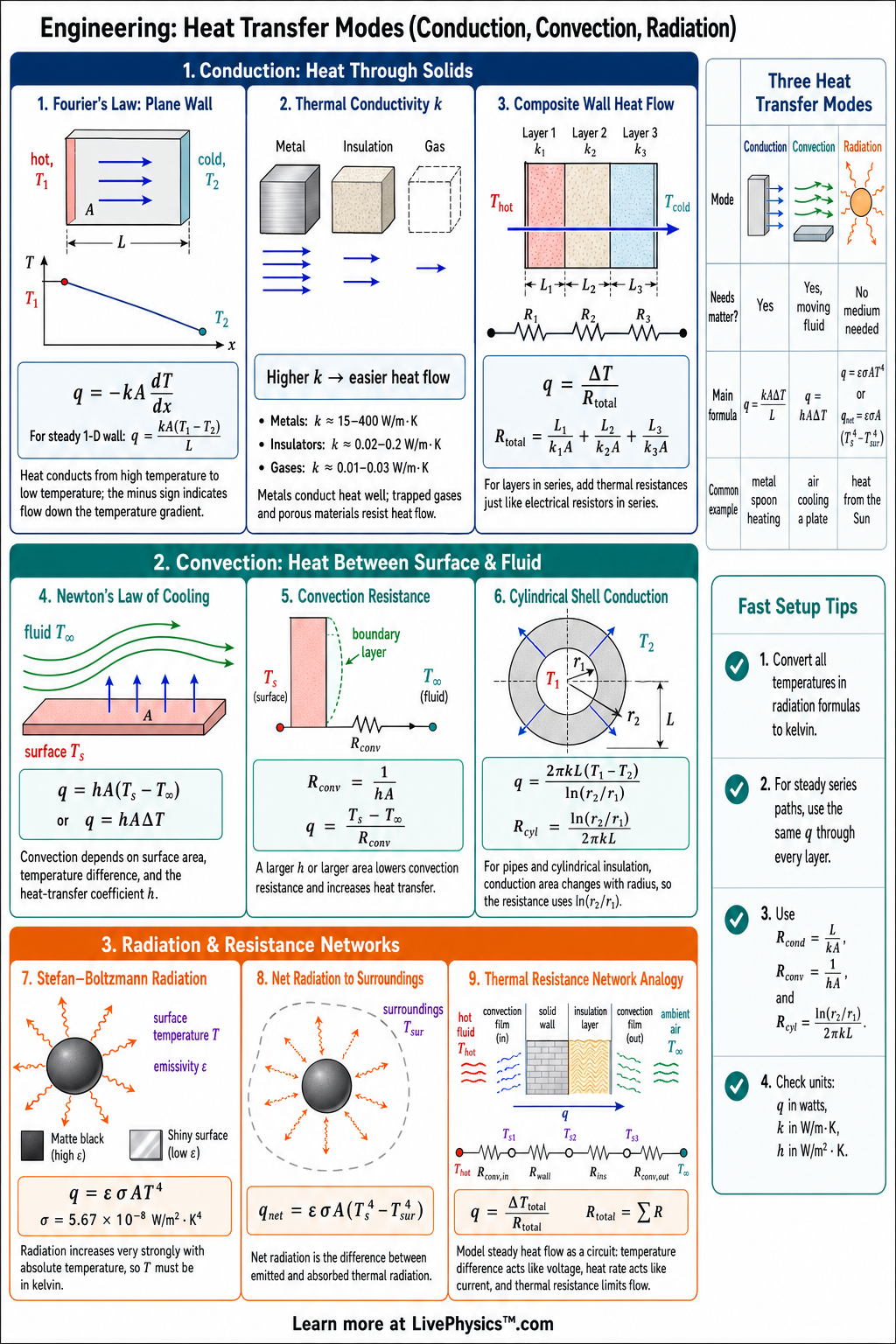

Heat transfer is the movement of thermal energy from a hotter region to a cooler region. This cheat sheet covers the three main engineering modes of heat transfer: conduction, convection, and radiation. Students need these ideas to analyze insulation, heat exchangers, electronics cooling, engines, buildings, and many energy systems.
The reference helps connect physical situations to the correct heat transfer model.
Conduction occurs through direct molecular interaction and is modeled by Fourier's law. Convection combines fluid motion with thermal diffusion and is often modeled by Newton's law of cooling. Radiation transfers energy by electromagnetic waves and is modeled using the Stefan-Boltzmann law.
In real engineering problems, more than one heat transfer mode often happens at the same time.
Key Facts
- Heat transfer rate is measured in watts, where 1 W = 1 J/s.
- Conduction through a flat wall is modeled by q = kA(T_hot - T_cold)/L.
- Thermal resistance for plane-wall conduction is R_cond = L/(kA).
- Convection is modeled by Newton's law of cooling: q = hA(T_surface - T_fluid).
- Thermal resistance for convection is R_conv = 1/(hA).
- Thermal radiation from a real surface is modeled by q = epsilon sigma A(T_surface^4 - T_surroundings^4).
- The Stefan-Boltzmann constant is sigma = 5.67 x 10^-8 W/(m^2 K^4).
- Temperatures in radiation equations must be in kelvin, not degrees Celsius.
Vocabulary
- Conduction
- Heat transfer through a solid or stationary material caused by particle collisions and energy diffusion.
- Convection
- Heat transfer between a surface and a moving fluid, caused by both fluid motion and thermal diffusion.
- Radiation
- Heat transfer by electromagnetic waves that can occur even through empty space.
- Thermal Conductivity
- A material property, represented by k, that measures how easily heat conducts through a material.
- Heat Transfer Coefficient
- A convection parameter, represented by h, that describes how strongly a fluid transfers heat to or from a surface.
- Emissivity
- A surface property, represented by epsilon, that compares how well a real surface emits radiation compared with an ideal blackbody.
Common Mistakes to Avoid
- Using Celsius in the radiation equation is wrong because T^4 radiation calculations require absolute temperature in kelvin.
- Mixing up k and h is wrong because k is a material property for conduction, while h depends on fluid flow and surface conditions in convection.
- Forgetting area A in heat transfer equations is wrong because total heat transfer rate increases when more surface area is available.
- Using the wrong length L in conduction is wrong because L must be the thickness in the direction heat flows, not necessarily the longest dimension.
- Assuming only one heat transfer mode occurs is often wrong because real systems can transfer heat by conduction, convection, and radiation at the same time.
Practice Questions
- 1 A 0.020 m thick wall has k = 0.80 W/(m K), area A = 5.0 m^2, T_hot = 35°C, and T_cold = 15°C. Find the conduction heat transfer rate q.
- 2 A hot metal plate has area A = 0.40 m^2, surface temperature 90°C, surrounding air temperature 25°C, and h = 18 W/(m^2 K). Find the convection heat transfer rate q.
- 3 A surface has epsilon = 0.85, area A = 1.2 m^2, T_surface = 500 K, and T_surroundings = 300 K. Using sigma = 5.67 x 10^-8 W/(m^2 K^4), find the net radiation heat transfer rate.
- 4 A hot pipe is wrapped with insulation and exposed to moving air. Identify which heat transfer modes occur from the pipe interior to the room and explain the role of each mode.
Understanding Heat Transfer Modes (Conduction, Convection, Radiation)
At the microscopic level, conduction depends on how easily energy moves through a material. In metals, mobile electrons carry energy quickly, so copper and aluminum are useful in cookware, heat sinks, and electrical equipment. In wood, plastic, foam, and still air, energy moves much more slowly.
These materials work as insulators. Thickness matters because energy has farther to travel through a thick layer. Surface area matters because a larger path allows more energy to pass at once.
Students should notice that a material can feel cold without having a low temperature. A metal desk leg feels colder than a wooden one in the same room because metal removes energy from a hand faster.
Thermal resistance gives a useful way to handle layers in a wall or device. Each layer resists energy flow by a different amount. A brick wall, insulation panel, air gap, and inside surface film can be treated as resistances in series.
The same rate of energy transfer passes through every series layer at steady conditions. The total temperature drop is shared among the layers. The largest drop occurs across the largest resistance.
This explains why a thin layer of insulation can create a larger temperature change than a much thicker layer of metal. It also explains thermal bridges. A steel stud through an insulated wall creates a low resistance path that leaks energy more easily.
Convection is strongly affected by the moving fluid near a surface. Fluid touching a hot object warms up first. If it stays in place, it forms a slow-moving boundary layer that limits further transfer.
Fans, pumps, and wind disturb this layer, bringing cooler fluid toward the surface and carrying warmer fluid away. This is forced convection. Natural convection happens when density differences cause warmer fluid to rise and cooler fluid to sink.
A radiator, a chimney, and boiling water show this effect. The convection coefficient is not a fixed material property.
It changes with fluid speed, surface shape, flow direction, and whether the flow is smooth or turbulent. This is why a fan can cool electronics far more effectively than still air.
Radiation behaves differently because it needs no material between surfaces. It can cross a vacuum, which is why the Sun warms Earth. Every surface emits radiation, though hotter surfaces emit much more.
The fourth-power temperature dependence means high-temperature equipment can lose energy rapidly by radiation. Furnace walls, hot engine parts, and spacecraft surfaces need careful radiation control. Surface finish matters.
Dark, dull coatings usually emit and absorb radiation well. Shiny metallic surfaces usually emit less and reflect more.
In a real situation, a warm mug loses energy through its walls, to surrounding air, and toward cooler objects nearby. Good problem solving starts by drawing the object, labeling all temperatures, identifying each transfer path, and checking whether the final answer has sensible units and direction.
