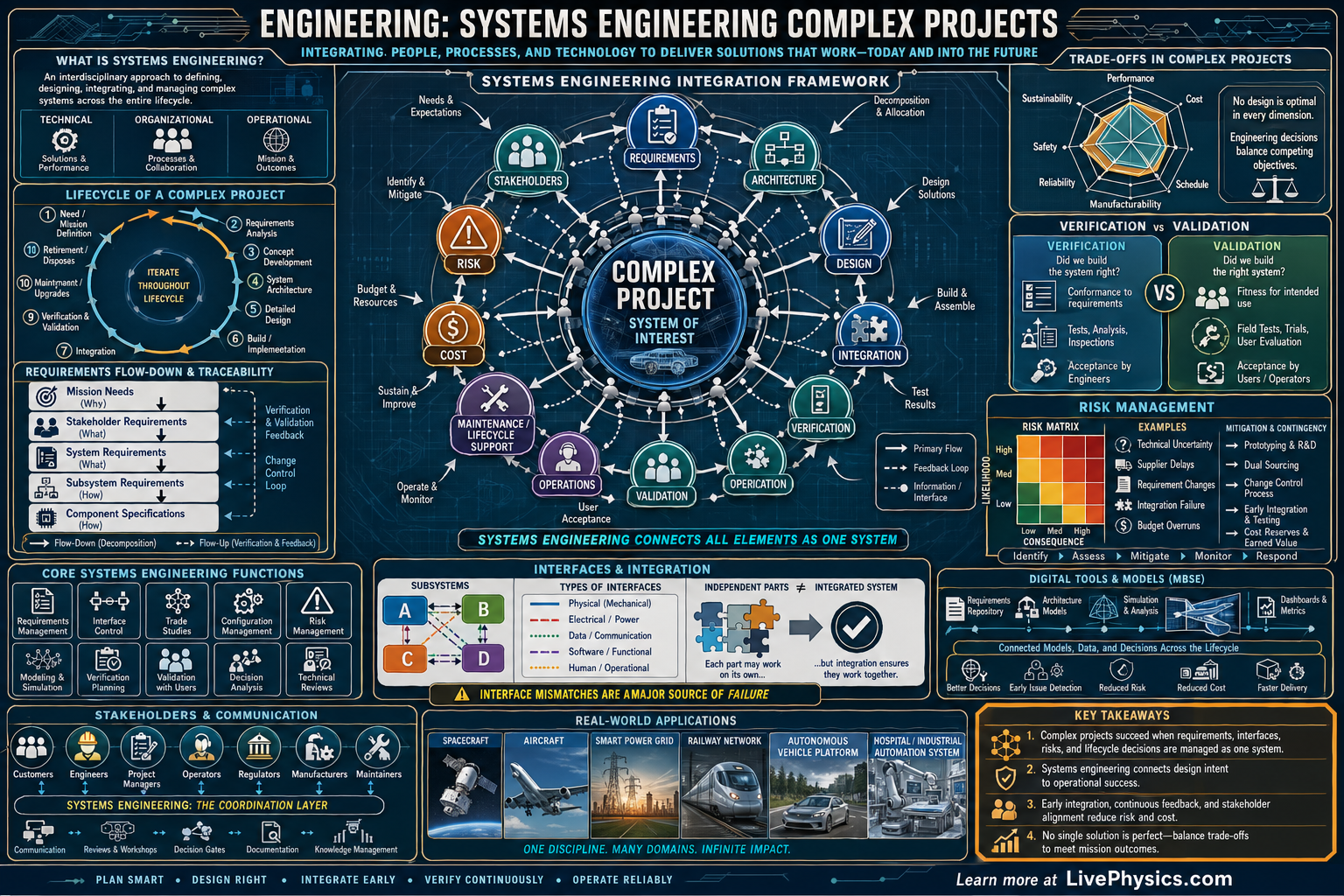

Systems Engineering: How Complex Projects Stay Organized
Requirements, Subsystems, Interfaces, and Trade-offs
Related Tools
Related Worksheets
Related Cheat Sheets
Systems engineering is the discipline of planning, designing, integrating, and managing complex projects made of many interacting parts. It matters because modern products such as aircraft, power grids, spacecraft, and transportation networks fail if teams optimize one part while ignoring the whole system. Systems engineers help define goals, track requirements, balance tradeoffs, and reduce risk across the full project life cycle. Their work connects technical design with cost, schedule, safety, and performance.
A complex project is often treated as a system-of-systems, where subsystems exchange energy, materials, information, and control signals. Systems engineering uses tools such as requirements flowdown, interface control, verification plans, and feedback loops to keep these connections consistent. Engineers compare alternatives by measuring performance, reliability, risk, and total life-cycle cost rather than focusing on a single metric. This approach improves coordination, catches problems early, and makes large projects easier to build, test, operate, and maintain.
Key Facts
- A system can be modeled as Input -> Process -> Output with feedback used to correct performance.
- Total project value is often judged by a tradeoff among performance, cost, schedule, and risk.
- Reliability for independent components in series is R_total = R1 x R2 x R3 x ...
- Availability is A = uptime / (uptime + downtime).
- A common risk measure is Risk exposure = probability x consequence.
- Verification asks whether the system was built right, while validation asks whether the right system was built.
Vocabulary
- System-of-systems
- A large project made of smaller systems that operate together to achieve a broader goal.
- Requirement
- A clear, testable statement describing what a system must do or how well it must perform.
- Interface
- The shared boundary where two subsystems exchange information, energy, materials, or forces.
- Tradeoff
- A design decision in which improving one feature may reduce another, such as lowering cost but also lowering performance.
- Verification
- The process of checking by test, analysis, inspection, or demonstration that the design meets its stated requirements.
Common Mistakes to Avoid
- Treating subsystems as independent, which is wrong because interface failures often appear where teams assume parts will automatically work together.
- Writing vague requirements, which is wrong because statements like fast or efficient cannot be tested and lead to disagreements later.
- Optimizing only one metric, which is wrong because the best technical performance may create unacceptable cost, schedule delay, or safety risk.
- Waiting until final testing to find problems, which is wrong because late fixes are usually more expensive and can force redesign of multiple connected subsystems.
Practice Questions
- 1 A project has three independent subsystems connected in series with reliabilities 0.98, 0.95, and 0.97. Calculate the total system reliability.
- 2 A machine operates for 180 hours and is down for 20 hours during a test period. Calculate its availability A = uptime / (uptime + downtime).
- 3 A design change improves performance but increases cost and adds new interface complexity between two subsystems. Explain how a systems engineer should evaluate whether the change is worth adopting.
