How Automatic Doors Detect People
Motion sensors and safety beams
Related Labs
Related Worksheets
Automatic doors use sensors and control systems to notice when a person is nearby, then open the door safely at the right time. This matters because the door must respond quickly without wasting energy or opening for every small disturbance. Engineers design the system so it can detect people, ignore many false signals, and protect anyone in the doorway. The same ideas appear in elevators, store entrances, hospitals, and transit stations.

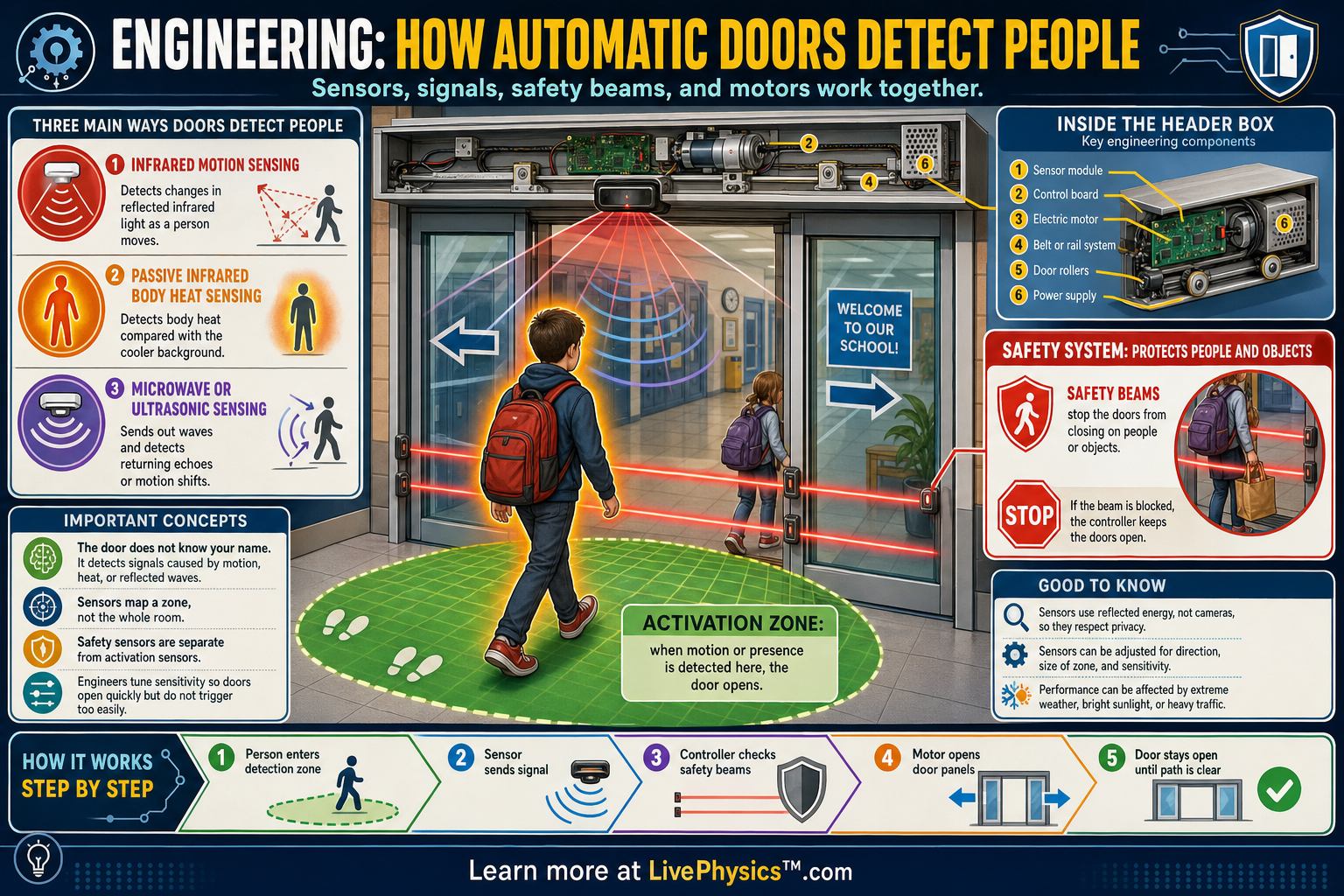

A typical sliding door has sensors above the doorway that watch an activation zone in front of the entrance. Infrared sensors may detect motion or body heat, while microwave and ultrasonic sensors send out waves and look for changes in the reflected signal. A controller reads the sensor signals, turns on an electric motor, and moves the door panels along tracks. Safety beams near the floor or doorway stop the doors from closing if a person, bag, wheelchair, or cart is in the path.
Key Facts
- Automatic doors use sensors, a controller, a motor, tracks, and safety devices to detect people and move door panels.
- Infrared motion sensors detect changes in infrared light or heat patterns from warm moving objects.
- Microwave sensors use reflected radio waves, and a change in frequency or reflection can show motion.
- Ultrasonic sensors send sound waves above human hearing and detect changes in echoes from nearby objects.
- Speed = distance / time, so a person walking 1.5 m in 1.0 s has speed = 1.5 m/s.
- Door safety systems often use beams across the doorway so the controller keeps the doors open if the beam is blocked.
Vocabulary
- Sensor
- A device that detects a physical change, such as motion, heat, light, sound, or distance, and sends a signal.
- Activation zone
- The area in front of an automatic door where a person can be detected and cause the door to open.
- Infrared radiation
- Electromagnetic radiation with wavelengths longer than visible red light that is often emitted by warm objects.
- Controller
- The electronic unit that receives sensor signals and decides when to start, stop, open, or close the door.
- Safety beam
- A light beam across the doorway that tells the controller someone or something is in the path if the beam is interrupted.
Common Mistakes to Avoid
- Thinking the sensor sees a person like a camera is wrong because many automatic doors do not form an image. They usually detect motion, heat, reflected waves, or a blocked beam.
- Assuming the door opens only when someone touches it is wrong because most automatic sliding doors detect people before contact. The activation zone is designed to give the motor time to open the panels.
- Forgetting the safety beam is a mistake because the opening sensor and the closing safety system have different jobs. The activation sensor starts the opening, while the safety beam helps prevent the door from closing on someone.
- Treating every sensor type as identical is wrong because infrared, microwave, and ultrasonic sensors detect different signals. Each type has different strengths, false triggers, and useful detection ranges.
Practice Questions
- 1 A sensor activates when a person is 2.4 m from the door. If the person walks at 1.2 m/s, how many seconds does the door system have before the person reaches the doorway?
- 2 A sliding door panel must move 0.90 m to fully open. If the motor opens it in 1.5 s, what is the average speed of the door panel?
- 3 A store door keeps opening when cars pass close to the entrance outside, even when no one is walking toward the door. Which sensor type might be causing this problem, and what design change could reduce the false openings?
