When a transversal crosses two parallel lines, it creates a set of angle relationships that appear often in geometry, algebra, and real world design. These patterns help students solve for unknown angles quickly without measuring each one directly. Learning the names and positions of the angles makes it easier to recognize which angles are equal and which add to 180 degrees.
This topic builds a foundation for proofs, coordinate geometry, and later work with polygons.
The key idea is that parallel lines force certain angle pairs to have predictable relationships when cut by the same transversal. Corresponding angles, alternate interior angles, and alternate exterior angles are congruent, while same side interior angles are supplementary. Vertical angles are also congruent at each intersection, and adjacent linear pairs always sum to 180 degrees.
By combining these facts, you can find every angle in the diagram if you know just one of them.

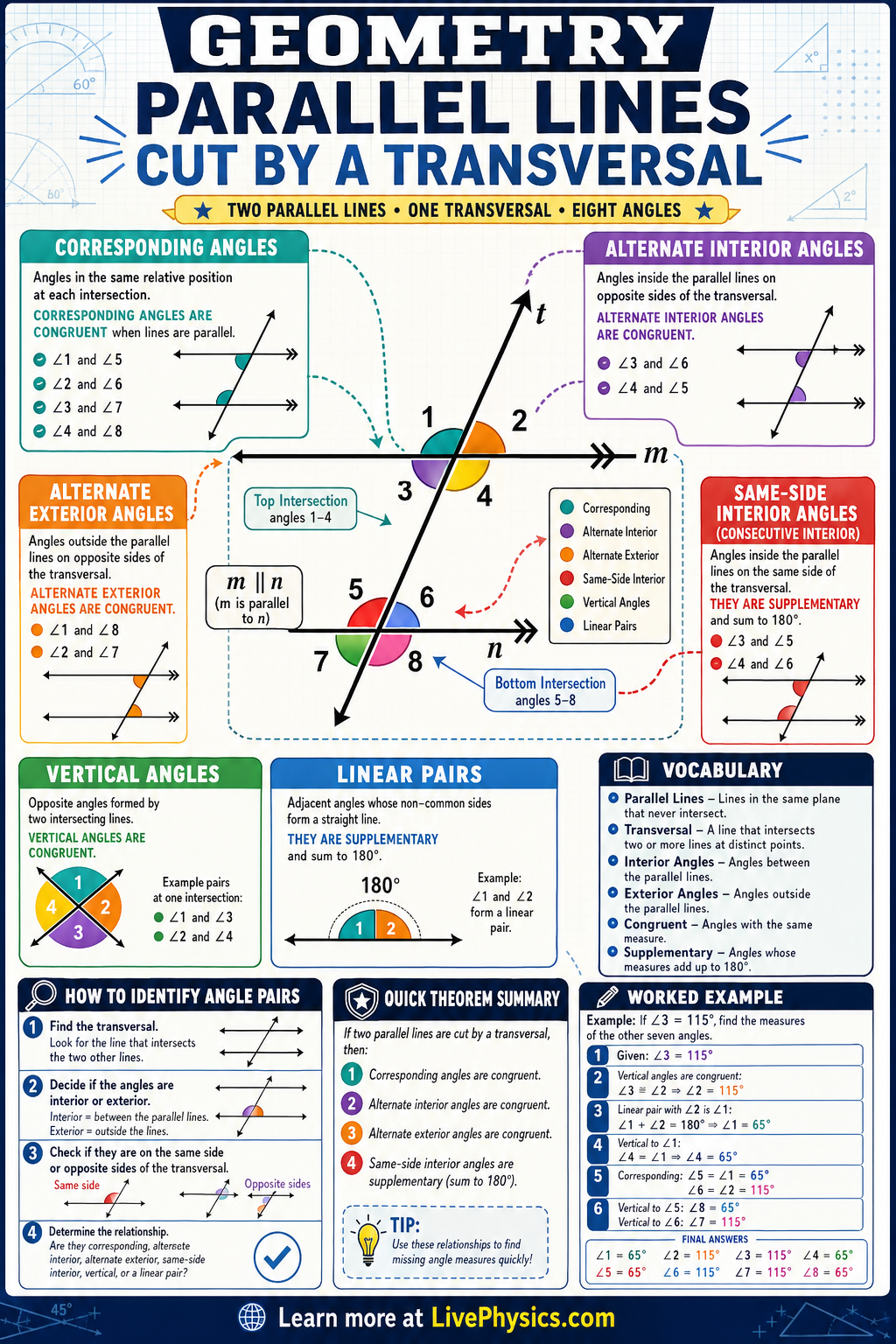

Understanding Parallel Lines Cut by a Transversal
A useful way to understand the diagram is to see it as two copies of the same crossing. A transversal meets the first parallel line, then continues to meet the second one without changing direction. Because the parallel lines never turn toward or away from each other, the openings made by the transversal match in predictable positions.
This is why a single known angle can control the whole figure. If one angle measures sixty five degrees, every angle in the matching family measures sixty five degrees. The remaining angles measure one hundred fifteen degrees because each straight line has a total angle of one hundred eighty degrees.
Students often make fewer mistakes when they sort angles by location before naming them. Interior angles lie in the strip between the two parallel lines. Exterior angles lie outside that strip.
Alternate pairs are on opposite sides of the transversal. Same side pairs sit on the same side of it. Corresponding angles occupy the same corner at each intersection.
Trace the transversal with a finger if the picture feels crowded. Then identify whether each angle is inside or outside the parallel lines, followed by its side of the transversal. This location method works even when the lines are tilted, vertical, or drawn in an unfamiliar direction.
Algebra problems use these relationships to turn geometry into an equation. An angle might be described by an expression such as three x plus ten degrees, while its matching angle is five x minus twenty degrees. If the pair is known to be equal, set the two expressions equal and solve for x.
If the pair must total one hundred eighty degrees, add the expressions and set their sum to one hundred eighty. After finding x, substitute it back into an expression to find the actual angle measure.
Always check whether the result makes sense. An angle at a sharp looking corner should be less than ninety degrees, while its neighboring obtuse angle should be greater than ninety degrees.
The parallel condition is essential. Similar looking angle positions do not guarantee equal measures when the two lines are not parallel. In fact, geometry proofs often run this idea backward.
If a transversal creates equal corresponding angles, equal alternate interior angles, or supplementary same side interior angles, then that evidence can prove the lines are parallel. These converse facts matter in construction, road layouts, window frames, rail tracks, and technical drawings. Engineers and builders use consistent directions to create level surfaces, aligned edges, and repeated shapes.
In class, pay close attention to markings that show parallel lines. Without those arrow marks or a written statement, do not assume the lines are parallel just because the drawing appears that way.
Key Facts
- Corresponding angles are congruent when parallel lines are cut by a transversal.
- Alternate interior angles are congruent when m || n.
- Alternate exterior angles are congruent when m || n.
- Same side interior angles are supplementary: angle 1 + angle 2 = 180 degrees.
- Vertical angles are congruent: if two angles are vertical, then angle .
- Linear pair angles are supplementary: angle a + angle b = 180 degrees.
Vocabulary
- Parallel lines
- Lines in the same plane that never intersect and stay the same distance apart.
- Transversal
- A line that crosses two or more other lines at different points.
- Corresponding angles
- Angles in matching positions at the two intersections formed by a transversal.
- Alternate interior angles
- Angles between the parallel lines on opposite sides of the transversal.
- Supplementary angles
- Two angles whose measures add up to 180 degrees.
Common Mistakes to Avoid
- Mixing up corresponding and alternate interior angles, because students look only at side placement and ignore whether the angles are inside or outside the parallel lines. First identify interior versus exterior, then check whether the pair is on the same side or opposite sides of the transversal.
- Assuming any two angles that look similar are congruent, which is wrong because the relationship depends on the exact position of each angle. Use the angle names and locations, not just the picture's appearance.
- Forgetting that same side interior angles are supplementary, not congruent, which leads to incorrect equations. These angles must add to 180 degrees when the lines are parallel.
- Using parallel line angle rules when the lines are not marked parallel, which is wrong because the theorems require m || n. Always confirm the parallel marking before applying corresponding or alternate angle relationships.
Practice Questions
- 1 Lines m and n are parallel and cut by transversal t. If a corresponding angle measures 68 degrees, what is the measure of its matching corresponding angle at the other intersection?
- 2 Lines m and n are parallel and cut by transversal t. One same side interior angle measures 117 degrees. What is the measure of the other same side interior angle?
- 3 Explain how you could prove that two lines are parallel if a transversal cuts them and a pair of alternate interior angles are congruent.
