Right Triangle Trigonometry cheat sheet - grade 8-11

Click image to open full size

Math Grade 8-11

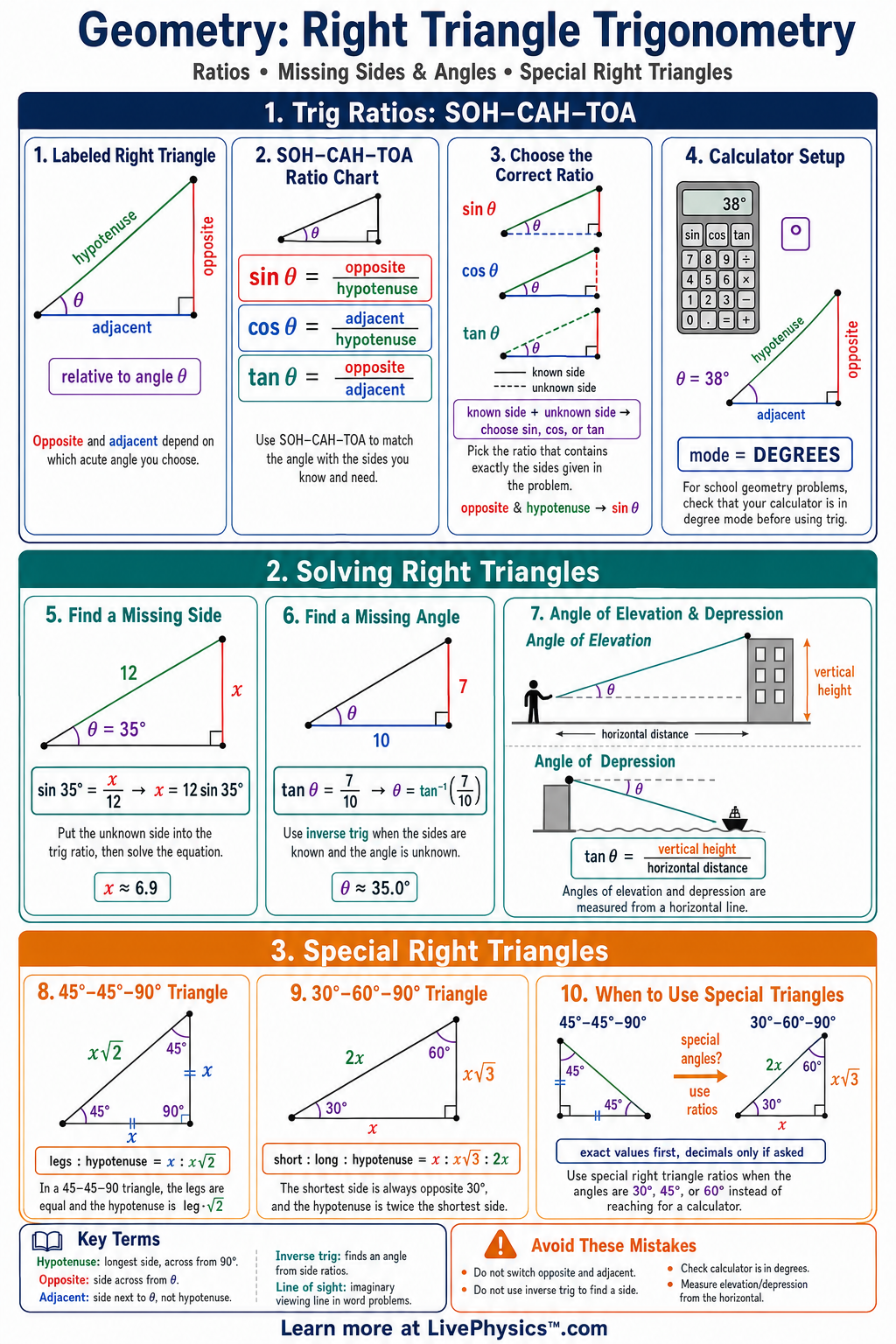

Right Triangle Trigonometry Cheat Sheet

A printable reference covering sine, cosine, tangent, inverse trigonometric ratios, special right triangles, and solving right triangles for grades 8-11.

TopicsTrigonometryRatios and ProportionsFunctionsShapesMeasurementMathematicsStudy Guide
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Right triangle trigonometry connects the angles of a right triangle to the ratios of its side lengths. This cheat sheet helps students choose the correct ratio, set up equations, and solve for missing sides or angles. It is especially useful for geometry problems involving height, distance, ladders, ramps, shadows, and navigation.

Students need these tools because many real measurements are easier to find indirectly than directly.

The core ratios are sine, cosine, and tangent, remembered with sin⁡θ=oppositehypotenuse\sin \theta = \frac{\text{opposite}}{\text{hypotenuse}}, cos⁡θ=adjacenthypotenuse\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}}, and tan⁡θ=oppositeadjacent\tan \theta = \frac{\text{opposite}}{\text{adjacent}}. Inverse trig functions such as sin⁡−1\sin^{-1}, cos⁡−1\cos^{-1}, and tan⁡−1\tan^{-1} are used to find missing angles. Special right triangles, including 45∘−45∘−90∘45^\circ-45^\circ-90^\circ and 30∘−60∘−90∘30^\circ-60^\circ-90^\circ, give exact side relationships without a calculator.

Always label the sides relative to the angle you are using before choosing a formula.

Key Facts

  • For an acute angle θ\theta in a right triangle, sin⁡θ=oppositehypotenuse\sin \theta = \frac{\text{opposite}}{\text{hypotenuse}}.
  • For an acute angle θ\theta in a right triangle, cos⁡θ=adjacenthypotenuse\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}}.
  • For an acute angle θ\theta in a right triangle, tan⁡θ=oppositeadjacent\tan \theta = \frac{\text{opposite}}{\text{adjacent}}.
  • Use θ=sin⁡−1(oppositehypotenuse)\theta = \sin^{-1}\left(\frac{\text{opposite}}{\text{hypotenuse}}\right), θ=cos⁡−1(adjacenthypotenuse)\theta = \cos^{-1}\left(\frac{\text{adjacent}}{\text{hypotenuse}}\right), or θ=tan⁡−1(oppositeadjacent)\theta = \tan^{-1}\left(\frac{\text{opposite}}{\text{adjacent}}\right) to find a missing angle.
  • The Pythagorean Theorem for every right triangle is a2+b2=c2a^2 + b^2 = c^2, where cc is the hypotenuse.
  • In a 45∘−45∘−90∘45^\circ-45^\circ-90^\circ triangle, the side ratio is x:x:x2x:x:x\sqrt{2}.
  • In a 30∘−60∘−90∘30^\circ-60^\circ-90^\circ triangle, the side ratio is x:x3:2xx:x\sqrt{3}:2x, with xx opposite 30∘30^\circ.
  • Calculator angle mode matters because degree problems require degree mode, not radian mode.

Vocabulary

Hypotenuse
The hypotenuse is the longest side of a right triangle and is always opposite the 90∘90^\circ angle.
Opposite Side
The opposite side is the side across from the acute angle θ\theta being used.
Adjacent Side
The adjacent side is the leg next to the acute angle θ\theta that is not the hypotenuse.
Sine
Sine is the trig ratio sin⁡θ=oppositehypotenuse\sin \theta = \frac{\text{opposite}}{\text{hypotenuse}}.
Cosine
Cosine is the trig ratio cos⁡θ=adjacenthypotenuse\cos \theta = \frac{\text{adjacent}}{\text{hypotenuse}}.
Tangent
Tangent is the trig ratio tan⁡θ=oppositeadjacent\tan \theta = \frac{\text{opposite}}{\text{adjacent}}.

Common Mistakes to Avoid

  • Mixing up opposite and adjacent sides is wrong because these labels depend on the chosen angle θ\theta. Relabel the triangle every time the reference angle changes.
  • Using the hypotenuse as an adjacent side is wrong because the hypotenuse is always opposite the 90∘90^\circ angle. The adjacent side must be a leg of the right triangle.
  • Using sin⁡−1\sin^{-1}, cos⁡−1\cos^{-1}, or tan⁡−1\tan^{-1} to find a side is wrong because inverse trig functions find angles. To find a side, set up a trig ratio and solve the equation.
  • Forgetting degree mode is wrong when angle measures are given in degrees. A calculator in radian mode can give completely different angle or side results.
  • Applying trig ratios to a non-right triangle is wrong because basic sine, cosine, and tangent ratios here require a 90∘90^\circ angle. First confirm the triangle is right or use another method.

Practice Questions

  1. 1 A right triangle has an angle of 35∘35^\circ and a hypotenuse of 1212 cm. Find the length of the side opposite the 35∘35^\circ angle.
  2. 2 A ladder leans against a wall and makes a 70∘70^\circ angle with the ground. If the base is 44 ft from the wall, how high up the wall does the ladder reach?
  3. 3 In a right triangle, the side opposite angle AA is 99 and the hypotenuse is 1515. Find m∠Am\angle A to the nearest degree.
  4. 4 Explain how you decide whether to use sin⁡θ\sin \theta, cos⁡θ\cos \theta, or tan⁡θ\tan \theta when solving a right triangle problem.

Understanding Right Triangle Trigonometry

A right triangle has one fixed feature that makes trigonometry reliable. Its two acute angles always add to ninety degrees, so knowing one acute angle determines the other. The longest side is always across from the right angle.

This fact does not change when the triangle is turned, flipped, or drawn at a different size. What does change is the names opposite and adjacent. Those names depend on the particular acute angle being studied.

A side can be adjacent for one angle and opposite for the other. The hypotenuse is the only side whose name never changes.

Trigonometric ratios work because all right triangles with the same acute angle are similar. They have the same shape, even if one is much larger. Their matching side lengths grow by the same scale factor.

As a result, a steep angle always has a larger vertical change compared with its horizontal change than a shallow angle. Tangent is especially useful for describing steepness.

Road grades, wheelchair ramps, roofs, and hiking trails can all be modeled this way. A grade written as a percent compares rise with horizontal run, while an angle gives the same slope information in a different form.

Many measurement problems need a clear diagram before any calculation begins. Draw the ground or horizontal distance carefully. Mark vertical objects such as a tree, building, or flagpole as perpendicular to the ground.

Then identify where the observer, measuring device, or shadow is located. A surveyor can measure a distance from a building and the angle of elevation to its top. That creates a triangle whose missing height can be calculated, often after adding the observer's eye height.

In navigation and engineering, a sloping path may be the hypotenuse, while the horizontal distance and vertical rise have different practical meanings. Mixing up these distances produces answers that can look reasonable but describe the wrong measurement.

Checking an answer is an important habit. A side opposite a larger angle should be longer than a side opposite a smaller angle. The hypotenuse should be longer than either leg.

A ratio involving the hypotenuse cannot be greater than one. For a very small angle, the vertical rise should be small compared with a long horizontal distance. Use these ideas to notice calculator errors or reversed fractions.

Keep extra decimal places during work, then round only at the end according to the units requested. Exact values from special triangles are useful because they show patterns without rounding.

They are worth memorizing as connected shapes rather than as isolated lists of numbers. Practice labeling several diagrams with different orientations, since this prevents the most common mistakes.
