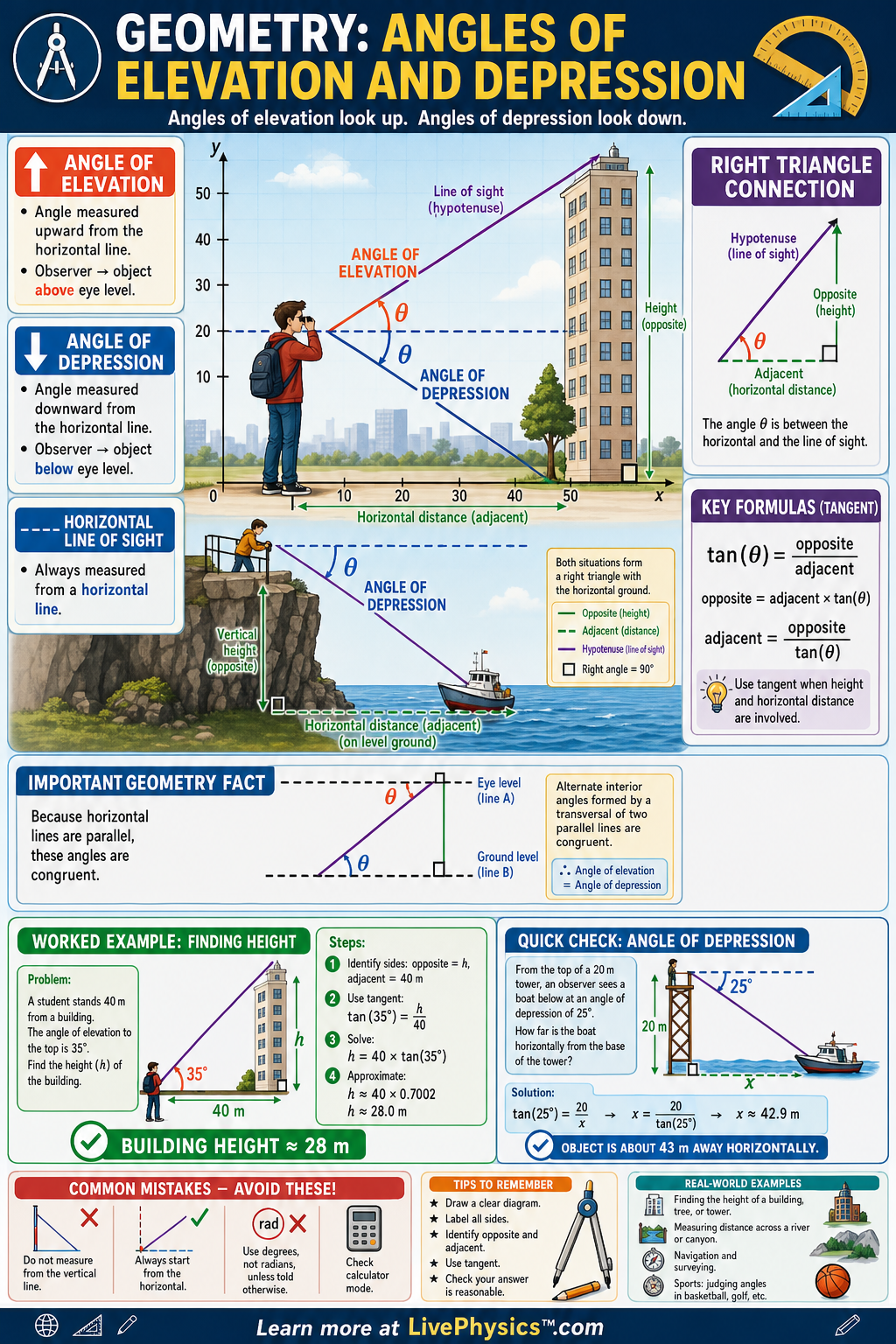

Angles of elevation and depression describe how far you look upward or downward from a horizontal line. They are used when measuring heights, distances, ramps, cliffs, buildings, and many real-world objects that are hard to measure directly. In geometry, these situations often form right triangles, which lets you use angle relationships and trigonometric ratios.
Learning this skill helps connect diagrams to actual measurements in the world.
Understanding Angles of Elevation & Depression
The hardest part of these problems is usually drawing the situation correctly. Start by marking the observer, the object, and the point directly below or above the object. That last point creates the horizontal leg of the triangle.
A tower may stand on level ground, but the observer's eye is not at ground level. If the angle is measured from eye level, the triangle gives the height from the eye to the top.
Add the observer's eye height afterward to get the full tower height. Ignoring this detail can make an otherwise correct calculation wrong.
A line of sight is an imaginary straight line from the observer's eye to the target. It becomes the sloping side only when the ground distance and vertical height form a right angle. In a problem involving a plane, drone, cliff, or lighthouse, first decide which length is horizontal, which is vertical, and which is the actual viewing distance.
Words such as away, above, below, directly, and from the top carry important information. A diagram does not need to look perfectly to scale, but it must show these relationships clearly. Label known values before choosing a trigonometric ratio.
Depression problems often confuse students because the angle may be drawn outside the triangle. The useful angle inside the triangle is found by extending a horizontal line from the lower point. Since both horizontal lines point in the same direction, the angle inside the triangle matches the angle measured at the higher position.
This is a geometry fact about parallel lines, not a special trigonometry rule. Once the matching angle is placed in the triangle, identify the sides relative to that angle. The opposite side lies across from it.
The adjacent side touches it without being the sloping side. The hypotenuse is always opposite the right angle.
These calculations appear in surveying, construction, navigation, sports, photography, and safety planning. A surveyor can estimate a tree's height without climbing it. A wheelchair ramp needs a gentle enough slope for safe use.
A pilot and an air traffic controller use vertical and horizontal separation to describe position. Real measurements include error, so rounding should make sense for the situation. Reporting a building height to many decimal places is rarely honest when the angle was measured with a handheld device.
Check the final answer against common sense. A very small upward angle over a long distance should give a moderate rise, while a steep angle should produce a much greater vertical change. Units must stay consistent throughout the work.
Key Facts
- Angle of elevation = the angle measured upward from a horizontal line to the line of sight.
- Angle of depression = the angle measured downward from a horizontal line to the line of sight.
- Horizontal lines at different heights are parallel, so angles of elevation and depression can be equal by alternate interior angles.
- tan(theta) = opposite / adjacent is often used to find height or horizontal distance.
- sin(theta) = opposite / hypotenuse and cos(theta) = adjacent / hypotenuse can be used when the line of sight distance is given.
- In a right triangle, a^2 + b^2 = c^2 and the acute angles add to 90 degrees.
Vocabulary
- Angle of Elevation
- An angle measured upward from a horizontal line to an object above the observer.
- Angle of Depression
- An angle measured downward from a horizontal line to an object below the observer.
- Line of Sight
- The straight line from the observer's eye to the object being viewed.
- Horizontal Line
- A level line parallel to the ground or horizon used as the reference for measuring these angles.
- Right Triangle
- A triangle with one 90 degree angle, often formed by height, ground distance, and line of sight.
Common Mistakes to Avoid
- Measuring the angle from the vertical side instead of the horizontal line is wrong because angles of elevation and depression are always measured from a horizontal reference line.
- Using the wrong trigonometric ratio is wrong because tangent, sine, and cosine depend on which sides are known and which side is being found.
- Forgetting the observer's eye height is wrong because the triangle often starts at eye level, not at the ground.
- Assuming the angle of depression is different from the angle of elevation is wrong when the horizontal lines are parallel, because the two angles can be equal by alternate interior angles.
Practice Questions
- 1 A student stands 30 m from a building and measures an angle of elevation of 40 degrees to the top. If the student's eye height is 1.5 m, estimate the height of the building.
- 2 From a cliff 60 m high, a person sees a boat at an angle of depression of 25 degrees. Estimate the horizontal distance from the base of the cliff to the boat.
- 3 A person on a balcony looks down at a friend on the ground, and the friend looks up at the person on the balcony. Explain why the angle of depression from the balcony equals the angle of elevation from the ground if both horizontal reference lines are parallel.
