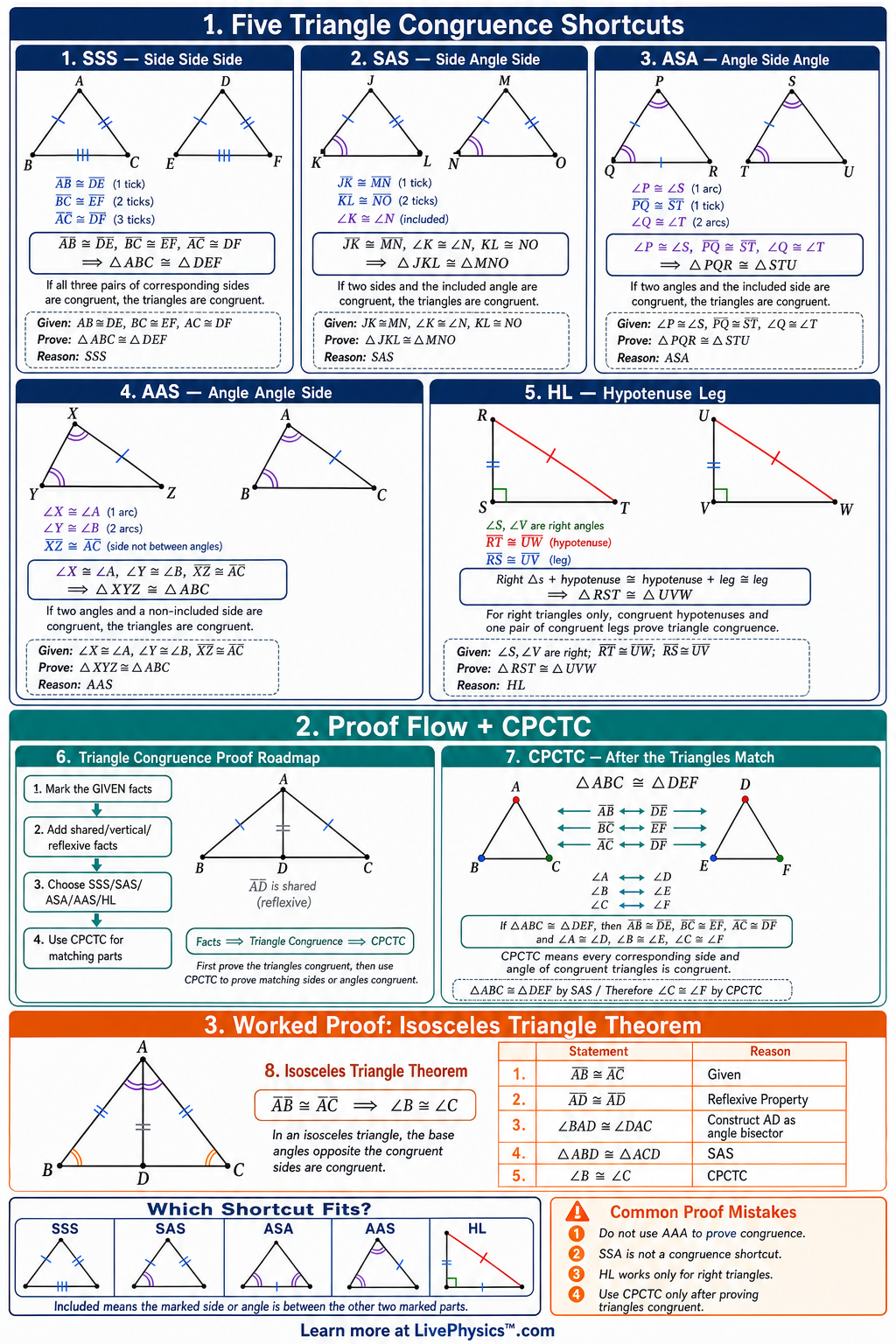

Triangle Congruence Proofs Walkthrough Cheat Sheet

Triangle congruence proofs show that two triangles are exactly the same size and shape using a short list of valid reasons. This cheat sheet helps students recognize which triangle parts are given, which parts can be proven, and which congruence shortcut applies. It also supports clear proof writing, including statements, reasons, and correct use of CPCTC.

Students need these skills to solve geometry problems and build logical arguments step by step.

The main congruence shortcuts are SSS, SAS, ASA, AAS, and HL for right triangles. Once triangles are proven congruent, CPCTC allows students to conclude that matching sides or angles are congruent. Strong proofs often use shared sides, vertical angles, angle bisectors, midpoints, perpendicular lines, and parallel lines.

A good proof always matches corresponding parts in the correct order, such as $\triangle ABC \cong \triangle DEF$ .

Key Facts

SSS proves triangle congruence when three pairs of corresponding sides are congruent, such as $AB \cong DE$ , $BC \cong EF$ , and $AC \cong DF$ .
SAS proves triangle congruence when two pairs of corresponding sides and the included angle are congruent, such as $AB \cong DE$ , $\angle B \cong \angle E$ , and $BC \cong EF$ .
ASA proves triangle congruence when two pairs of corresponding angles and the included side are congruent, such as $\angle A \cong \angle D$ , $AB \cong DE$ , and $\angle B \cong \angle E$ .
AAS proves triangle congruence when two pairs of corresponding angles and a non-included side are congruent, such as $\angle A \cong \angle D$ , $\angle C \cong \angle F$ , and $AB \cong DE$ .
HL proves right triangle congruence when the hypotenuse and one leg are congruent, such as $AC \cong DF$ and $AB \cong DE$ , with both triangles right triangles.
CPCTC means corresponding parts of congruent triangles are congruent, so if $\triangle ABC \cong \triangle DEF$ , then $AB \cong DE$ , $BC \cong EF$ , $AC \cong DF$ , $\angle A \cong \angle D$ , $\angle B \cong \angle E$ , and $\angle C \cong \angle F$ .
A shared side can be used by the reflexive property, such as $AB \cong AB$ .
Vertical angles are congruent, so if two lines intersect, then a pair such as $\angle 1 \cong \angle 2$ can be used in a proof.

Vocabulary

Congruent triangles: Congruent triangles are triangles with all corresponding sides and all corresponding angles congruent.
Corresponding parts: Corresponding parts are sides or angles that match in the same positions in two congruent figures.
Included angle: An included angle is the angle formed between two named sides, such as $\angle B$ between $AB$ and $BC$ .
Included side: An included side is the side between two named angles, such as $AB$ between $\angle A$ and $\angle B$ .
CPCTC: CPCTC stands for corresponding parts of congruent triangles are congruent.
Reflexive property: The reflexive property says a segment or angle is congruent to itself, such as $AC \cong AC$ .

Common Mistakes to Avoid

Using SSA as a congruence shortcut is wrong because two sides and a non-included angle do not always determine one unique triangle.
Using AAA to prove triangle congruence is wrong because equal angles prove only similar shape, not necessarily equal size.
Mismatching the triangle order is wrong because $\triangle ABC \cong \triangle DEF$ means $A \leftrightarrow D$ , $B \leftrightarrow E$ , and $C \leftrightarrow F$ .
Using CPCTC before proving the triangles congruent is wrong because CPCTC only applies after a valid congruence statement has been established.
Forgetting to prove a shared side is congruent is a mistake because a proof needs a reason, usually the reflexive property such as $BD \cong BD$ .

Practice Questions

1 In $\triangle ABC$ and $\triangle DEF$ , $AB \cong DE$ , $BC \cong EF$ , and $AC \cong DF$ . Which congruence shortcut proves the triangles congruent?
2 In $\triangle JKL$ and $\triangle MNO$ , $JK \cong MN$ , $\angle J \cong \angle M$ , and $\angle K \cong \angle N$ . Which shortcut applies, and what is the correct congruence statement?
3 Two right triangles have hypotenuses of length $13$ and legs of length $5$ . Which congruence theorem can prove the triangles congruent?
4 A proof shows $\triangle ABC \cong \triangle CDA$ . Explain why it is valid to conclude $AB \cong CD$ , and name the reason used.

Understanding Triangle Congruence Proofs Walkthrough

A congruence proof is really a chain of evidence. Each line must come from information in the diagram, a stated fact, a definition, or a theorem learned earlier. Do not choose a congruence rule first and hunt for facts to fit it.

Start by marking every known side and angle. Then identify the two triangles that matter. A large figure often contains several overlapping triangles, so tracing each triangle in a different color can help.

List their vertices in matching order. If one vertex is where two marked sides meet, its partner must have the same role in the other triangle. This order controls every later matching statement.

Many proof steps come from vocabulary hidden in the wording. A midpoint creates two equal segments. An angle bisector creates two equal angles.

Perpendicular lines create right angles, and all right angles are congruent. Parallel lines can create alternate interior angles or corresponding angles that are congruent when a transversal crosses them. Intersecting lines create vertical angles.

A segment used by both triangles is equal to itself through the reflexive property. These facts are often the missing third piece.

Students should write the precise reason, not just say it is obvious from the picture. Drawings can be inaccurate, but definitions and theorems do not depend on how the drawing looks.

It is important to know the patterns that do not guarantee congruence. Three matching angles can make triangles the same shape while leaving different sizes possible. This is called similarity, not congruence.

Two sides with an angle that is not between them can sometimes form two different triangles. For that reason, side side angle is not a general congruence test. Check where the given angle sits.

For two-side information, the angle must be between those sides. For right triangles, first establish that both triangles contain right angles before using the hypotenuse and leg idea. The longest side opposite a right angle is the hypotenuse, so it must be identified correctly.

Two-column proofs train a useful habit of organized reasoning. In the statements column, write one small claim at a time. In the reasons column, name the fact that supports that claim.

A later line may use earlier lines, but it cannot use a conclusion that has not been proven yet. After the triangles are established as congruent, use their matching parts only for the final target, such as an angle equality, a segment equality, or a result about parallel lines.

This kind of reasoning appears in construction, design, and surveying, where matching measurements support reliable plans. When practicing, pay close attention to the order of vertices, the location of an included angle, and whether every reason is valid without trusting the diagram.
