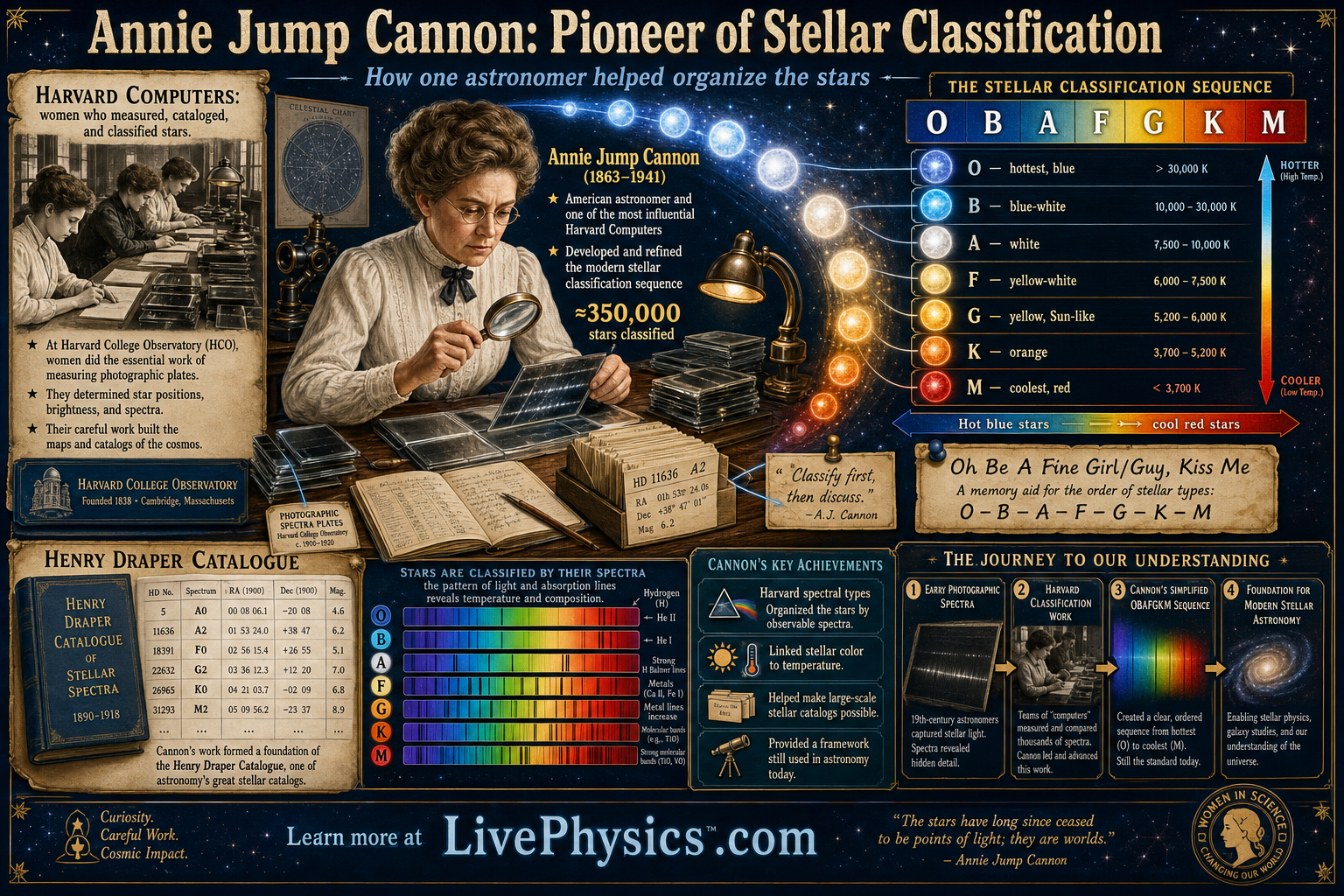

Annie Jump Cannon: Pioneer of Stellar Classification
OBAFGKM and the catalog of 350,000 stars
Related Labs
Related Worksheets
Related Cheat Sheets
Annie Jump Cannon was an American astronomer who transformed the way scientists organize and understand stars. Working at the Harvard College Observatory, she helped turn thousands of photographic spectra into a clear classification system that astronomers still use today. Her work mattered because stellar spectra reveal a star’s temperature, composition, and stage of life. By creating a practical order for stellar types, Cannon gave astronomy a shared language for comparing stars across the sky.
Cannon was one of the Harvard Computers, a group of women who analyzed astronomical data at a time when women were often excluded from telescope work and university faculty positions. She refined earlier Harvard spectral types into the sequence O, B, A, F, G, K, M, arranging stars mainly by surface temperature and spectral line patterns. Cannon personally classified about 350,000 stars and played a major role in the Henry Draper Catalogue. Her system connects historical observation with modern astrophysics, from star catalogs to the Hertzsprung-Russell diagram.
Key Facts
- Annie Jump Cannon lived from 1863 to 1941 and became one of the most influential stellar classifiers in astronomy.
- The main stellar spectral sequence is O, B, A, F, G, K, M, ordered from hottest to coolest stars.
- Cannon classified about 350,000 stars by studying their photographic spectra.
- The Henry Draper Catalogue recorded stellar spectra and positions for hundreds of thousands of stars.
- Wien’s law links temperature and peak wavelength: λmax = b/T, where b ≈ 2.9 x 10^-3 m K.
- Light frequency and wavelength are related by c = λf, where c is the speed of light.
Vocabulary
- Stellar spectrum
- A stellar spectrum is the pattern of light from a star spread by wavelength, showing absorption or emission lines that reveal physical properties.
- Spectral classification
- Spectral classification is the method of grouping stars by the patterns in their spectra, especially features linked to temperature.
- Harvard Computers
- The Harvard Computers were women at Harvard College Observatory who measured, cataloged, and classified astronomical data from photographic plates.
- Henry Draper Catalogue
- The Henry Draper Catalogue is a major star catalog that lists spectral classifications and positions for large numbers of stars.
- Absorption line
- An absorption line is a dark line in a spectrum caused when atoms in a star’s outer layers absorb specific wavelengths of light.
Common Mistakes to Avoid
- Putting the OBAFGKM sequence in alphabetical order is wrong because the sequence is ordered mainly by decreasing surface temperature, not by letters.
- Thinking spectral type tells only color is wrong because spectra also reveal temperature, chemical elements, ionization, and other physical clues.
- Assuming Cannon discovered all stars in the Henry Draper Catalogue is wrong because her major contribution was classification, not necessarily discovery of each star.
- Confusing apparent brightness with spectral class is wrong because brightness depends on distance and luminosity, while spectral class comes from wavelength patterns.
Practice Questions
- 1 A star has a peak wavelength of 4.8 x 10^-7 m. Using λmax = b/T with b = 2.9 x 10^-3 m K, estimate the star’s surface temperature.
- 2 A light wave from a stellar spectrum has wavelength 6.0 x 10^-7 m. Using c = λf and c = 3.0 x 10^8 m/s, calculate its frequency.
- 3 Two stars appear equally bright from Earth, but one is type B and the other is type K. Explain what their spectral types suggest about their temperatures and why equal apparent brightness does not mean they are physically the same.
