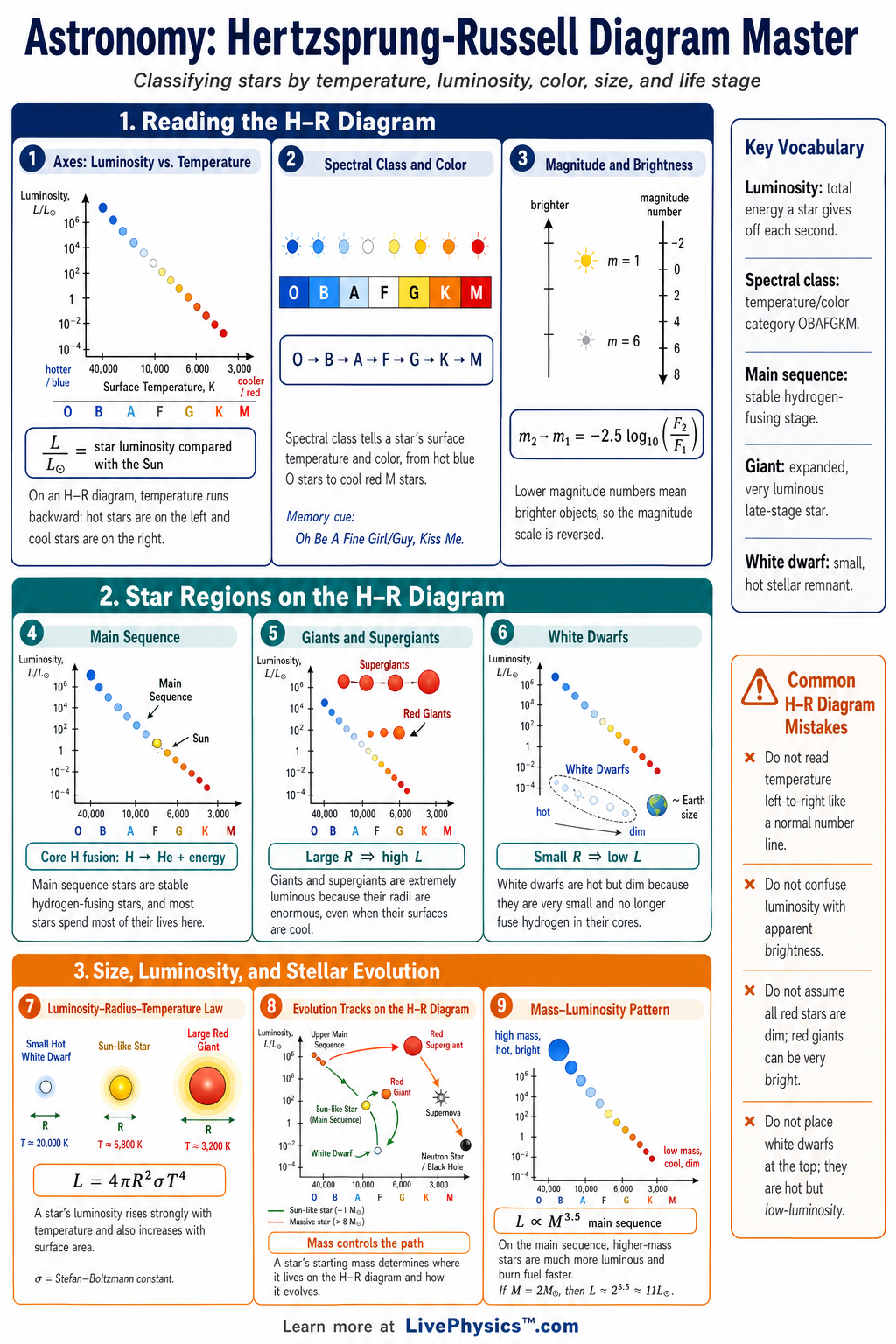

The Hertzsprung-Russell diagram is a graph that shows how stars compare by luminosity, surface temperature, color, and spectral class. Students need this cheat sheet because the H-R diagram connects many astronomy ideas in one visual tool. It helps explain how stars are classified, how they change over time, and why stars of different sizes and temperatures look different.
Key Facts
- On an H-R diagram, luminosity increases upward and surface temperature usually decreases from left to right.
- The main sequence runs from hot, bright blue stars in the upper left to cool, dim red stars in the lower right.
- Spectral classes from hottest to coolest are O, B, A, F, G, K, M.
- Star color indicates surface temperature, with blue stars hottest, white and yellow stars intermediate, and red stars coolest.
- Luminosity is the total energy a star emits per second, often compared to the Sun using L_sun.
- The Stefan-Boltzmann relationship is L = 4 pi R^2 sigma T^4, so luminosity depends on radius squared and temperature to the fourth power.
- Giants and supergiants are very luminous because they have very large radii, even when their surface temperatures are cool.
- White dwarfs are hot but dim because they have very small radii.
Vocabulary
- Hertzsprung-Russell diagram
- A graph that plots stars by luminosity and surface temperature to show patterns in star types and evolution.
- Luminosity
- The total amount of energy a star gives off each second.
- Main sequence
- The diagonal band on the H-R diagram where stars spend most of their lives fusing hydrogen into helium.
- Spectral class
- A category based on a star's temperature and absorption lines, ordered O, B, A, F, G, K, M from hottest to coolest.
- Absolute magnitude
- A measure of how bright a star would appear if it were placed at a standard distance of 10 parsecs.
- White dwarf
- A small, hot, dim stellar remnant left after some stars lose their outer layers.
Common Mistakes to Avoid
- Reading temperature left to right as increasing is wrong because most H-R diagrams place hotter stars on the left and cooler stars on the right.
- Assuming all bright stars are hot is wrong because cool giants and supergiants can be very luminous due to their large size.
- Confusing apparent brightness with luminosity is wrong because apparent brightness depends on distance, while luminosity is the star's actual energy output.
- Thinking white dwarfs are cool because they are dim is wrong because they are dim mainly due to their small radius, not low temperature.
- Placing the Sun among giants is wrong because the Sun is a G-type main sequence star with luminosity about 1 L_sun.
Practice Questions
- 1 A star is plotted in the upper left of an H-R diagram. Is it likely hot or cool, and is it likely bright or dim?
- 2 A red giant has a surface temperature of 3500 K but a luminosity of 1000 L_sun. What property mainly explains its high luminosity?
- 3 List the spectral classes from hottest to coolest.
- 4 Two stars have the same surface temperature, but one is much more luminous. Explain what this suggests about their relative sizes.
Understanding Hertzsprung-Russell Diagram Master
A point on this graph represents one star, but its position is not chosen from a photograph. Astronomers measure a star's spectrum to estimate surface temperature. They determine its distance, then use its observed brightness to calculate how much energy it truly produces.
This distinction matters. A nearby low power star can appear brighter in the night sky than a much more luminous star far away. Luminosity describes the star itself.
Apparent brightness describes what an observer receives at Earth. Dust between Earth and a star can make the star look dimmer or redder, so astronomers must correct for that effect.
The graph gives powerful clues about radius. Two stars with the same temperature can have very different luminosities. The brighter one must have a larger emitting surface.
Temperature has an especially strong effect because luminosity rises with the fourth power of temperature. If a star becomes twice as hot at its surface while its radius stays fixed, it gives off sixteen times as much energy. Radius matters too.
A star with twice the radius has four times the surface area. This is why cool red giants can shine far more strongly than the Sun. Their outer layers have expanded to an enormous size.
A star does not stay in one place forever. Most of its life is spent fusing hydrogen into helium in its core. During this stage, mass largely determines its position along the main sequence.
High mass stars have stronger gravity, higher core temperatures, and much faster fusion rates. They are bright, but they use their fuel quickly. Lower mass stars burn fuel slowly and can last for billions or even trillions of years.
After core hydrogen is used up, a star moves away from the main sequence. A Sun like star expands into a giant, loses its outer gas, then leaves behind a white dwarf. More massive stars can become supergiants before ending in a supernova.
Star clusters make these patterns easier to study because their stars formed from nearly the same cloud at nearly the same time. In a young cluster, the most massive stars still appear near the hot, bright end of the main sequence. In an older cluster, those stars have already evolved into giants or disappeared after violent deaths.
The point where stars begin leaving the main sequence is called the turnoff point. It lets astronomers estimate a cluster's age. When reading any H-R diagram, first check which quantity is on each axis.
Some diagrams use temperature, color index, absolute magnitude, or luminosity. Absolute magnitude runs in the opposite direction from luminosity, with brighter objects assigned smaller numbers. This reversal causes many student mistakes.
The Sun is a useful reference point, but it is not the center or average of every star property. It is a middle temperature main sequence star with a modest luminosity. Red dwarf stars are far more common in the Milky Way, though most are too faint to see without a telescope.
Bright blue stars stand out in distant galaxies, yet they are rare and short lived. The H-R diagram therefore helps students connect starlight to hidden physical facts. Color suggests temperature, position suggests size, and a group of stars can reveal a history of formation and change.
