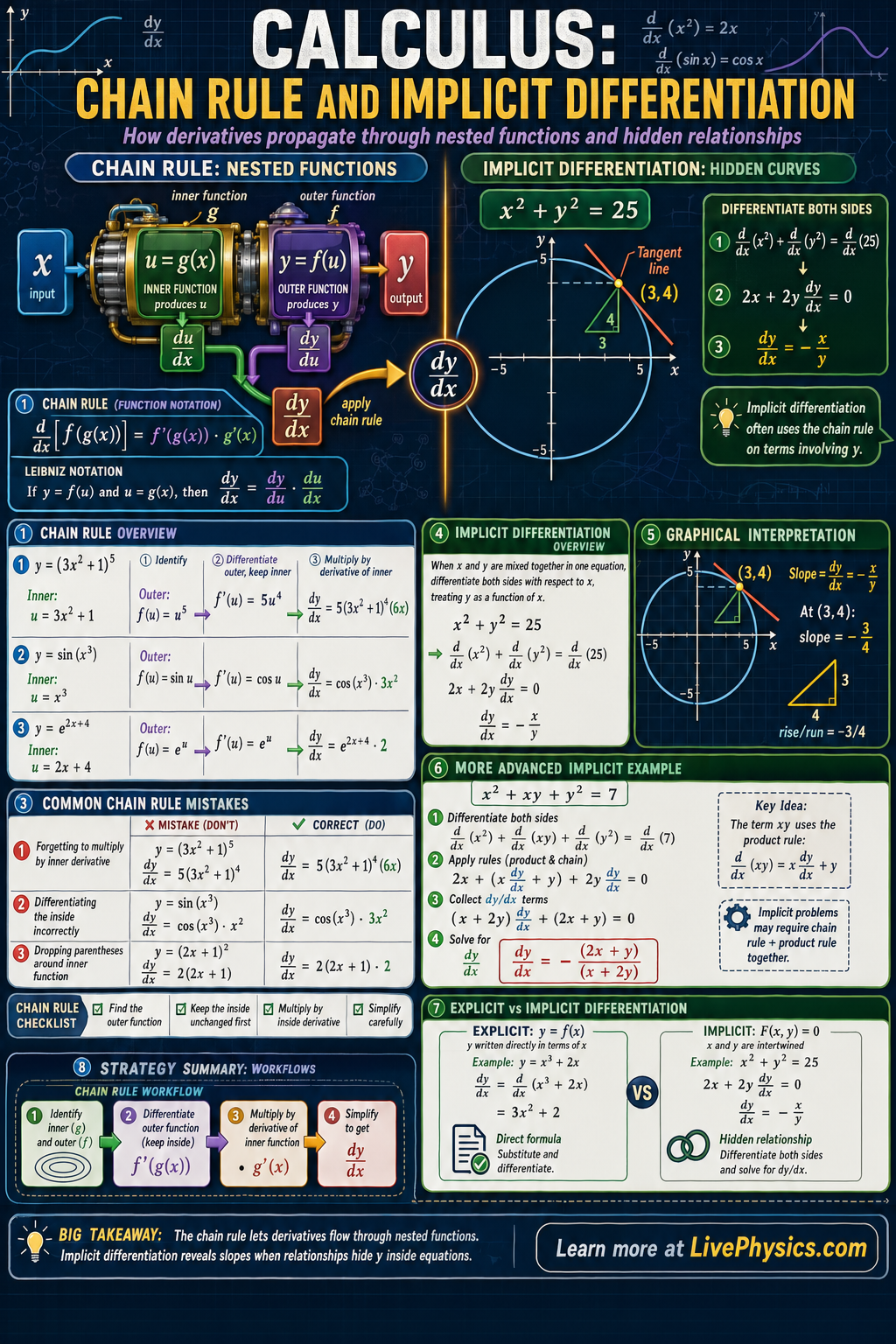

The Chain Rule infographic - Differentiating Composite Functions

Click image to open full size

Calculus

The Chain Rule

Differentiating Composite Functions

DerivativesFunctionsAlgebraCalculusStudy Guide
Download PNG Save to Pinterest

Related Tools

Related Labs

Related Worksheets

Related Cheat Sheets

Study as Flashcards

The chain rule and implicit differentiation are two core tools for finding derivatives when functions are not written in the simplest direct form. The chain rule helps when one quantity depends on another quantity that itself depends on a third variable. Implicit differentiation helps when x and y are mixed together in one equation instead of y being isolated.

These ideas matter because many real models in physics, biology, and engineering involve layered relationships or curves that cannot be solved neatly for y.

The chain rule works by tracking how a change moves through each layer of a composite function. If y=f(g(x))y = f(g(x)), then the derivative multiplies the rate of change of the outer function by the rate of change of the inner function. Implicit differentiation works by differentiating both sides of an equation with respect to xx and treating yy as a function of xx.

Whenever a yy term is differentiated, a factor of dydx\frac{dy}{dx} appears, and then algebra is used to solve for dydx\frac{dy}{dx}.

Understanding The Chain Rule

A composite function is easiest to understand as a sequence of operations. Start with an input, change it once, then use that result in a second operation. For example, take the quantity three times x plus one, then square the whole result.

The outside operation is squaring. The inside operation is multiplying by three then adding one. When finding the derivative, keep the inside expression unchanged while differentiating the outside layer.

Then multiply by the derivative of the inside layer. This order prevents a common error, where students square first but forget that the base was changing too. A useful habit is to name the inside quantity u before doing any differentiation.

The extra factor from the inner derivative has a physical meaning. It adjusts the rate from the outer rule to account for how quickly the input of that outer rule is moving. Suppose the area of a circle depends on its radius, while the radius changes with time.

The area changes because a larger radius produces more area, but its rate of change also depends on how fast the radius grows. This same layered reasoning appears in motion.

Position may depend on temperature, temperature may depend on time, so a change in time affects position through temperature. The chain rule connects these linked rates without requiring a new formula for every situation.

Some expressions contain several layers, not just two. For the sine of the square of five x, work from the outside inward. First differentiate sine, leaving the squared expression in place.

Next differentiate the square, leaving five x in place. Finally differentiate five x. Multiply all three results.

Writing the layers in order before starting makes the work more reliable. Parentheses matter because they show which operation is acting on the entire inner expression.

Students often lose a factor when they treat a power, a trig function, or an exponential as if its input were only x. Check every nonconstant expression inside parentheses, since each one may contribute a derivative factor.

Implicit differentiation requires careful bookkeeping because y is not a fixed number. It changes as x changes along the curve. Therefore, differentiating a term involving y must include the rate at which y changes with x.

For a product containing x and y, use the product rule before solving for the y derivative. For a term such as the square of y, use the power rule followed by the derivative of y. After differentiating every term, collect all terms containing the y derivative on one side.

Then factor it out and divide. The final derivative can depend on both x and y, which is normal.

It gives the slope at points on the curve. Before trusting an answer, substitute a known point from the original equation if one is available and check whether the slope sign matches the curve's local direction.

Key Facts

  • Chain rule: if y=f(g(x))y = f(g(x)), then dydx=f′(g(x))⋅g′(x)\frac{dy}{dx} = f'(g(x)) \cdot g'(x)
  • Power chain rule: ddx[(u(x))n]=n(u(x))n−1⋅u′(x)\frac{d}{dx}[(u(x))^n] = n(u(x))^{n-1} \cdot u'(x)
  • Trig chain rule example: ddx[sin⁡(u)]=cos⁡(u)⋅u′\frac{d}{dx}[\sin(u)] = \cos(u) \cdot u'
  • Exponential chain rule example: ddx[e(u)]=e(u)⋅u′\frac{d}{dx}[e^{(u)}] = e^{(u)} \cdot u'
  • Implicit differentiation rule: ddx[y]=dydx\frac{d}{dx}[y] = \frac{dy}{dx} because yy depends on xx
  • For x2+y2=r2x^2 + y^2 = r^2, implicit differentiation gives 2x+2y(dydx)=02x + 2y\left(\frac{dy}{dx}\right) = 0, so dydx=−xy\frac{dy}{dx} = -\frac{x}{y}

Vocabulary

Composite function
A function formed by putting one function inside another, such as f(g(x))f(g(x)).
Chain rule
A differentiation rule used to find the derivative of a composite function by multiplying derivatives of the layers.
Implicit function
A relationship between xx and yy given by an equation like x2+y2=25x^2 + y^2 = 25, where yy is not isolated.
Implicit differentiation
A method of differentiating an equation with x and y together by treating y as a function of x.
dydx\frac{dy}{dx}
The derivative of y with respect to x, representing the slope or rate of change of y as x changes.

Common Mistakes to Avoid

  • Forgetting to multiply by the derivative of the inside function, which makes a chain rule answer incomplete and too small. Every time a function is nested inside another, the inner derivative must appear.
  • Differentiating yy as if it were a constant in an implicit equation, which is wrong because yy usually depends on xx. Terms like ddx[y2]\frac{d}{dx}[y^2] must become 2y(dydx)2y\left(\frac{dy}{dx}\right), not just 2y2y.
  • Solving for dydx\frac{dy}{dx} before differentiating the whole equation, which often creates harder algebra or loses the structure of the problem. Differentiate both sides first, then collect dydx\frac{dy}{dx} terms and solve.
  • Applying the chain rule to a sum that is not actually nested, which mixes up composition with ordinary addition. In x2+sin⁡xx^2 + \sin x, each term is differentiated separately because one function is not inside the other.

Practice Questions

  1. 1 Find dydx\frac{dy}{dx} if y=(3x2+1)5y = (3x^2 + 1)^5.
  2. 2 Use implicit differentiation to find dydx\frac{dy}{dx} for the curve x2+xy+y2=7x^2 + xy + y^2 = 7.
  3. 3 Explain why differentiating y3y^3 with respect to xx in an implicit equation gives 3y2dydx3y^2\frac{dy}{dx} instead of just 3y23y^2.
