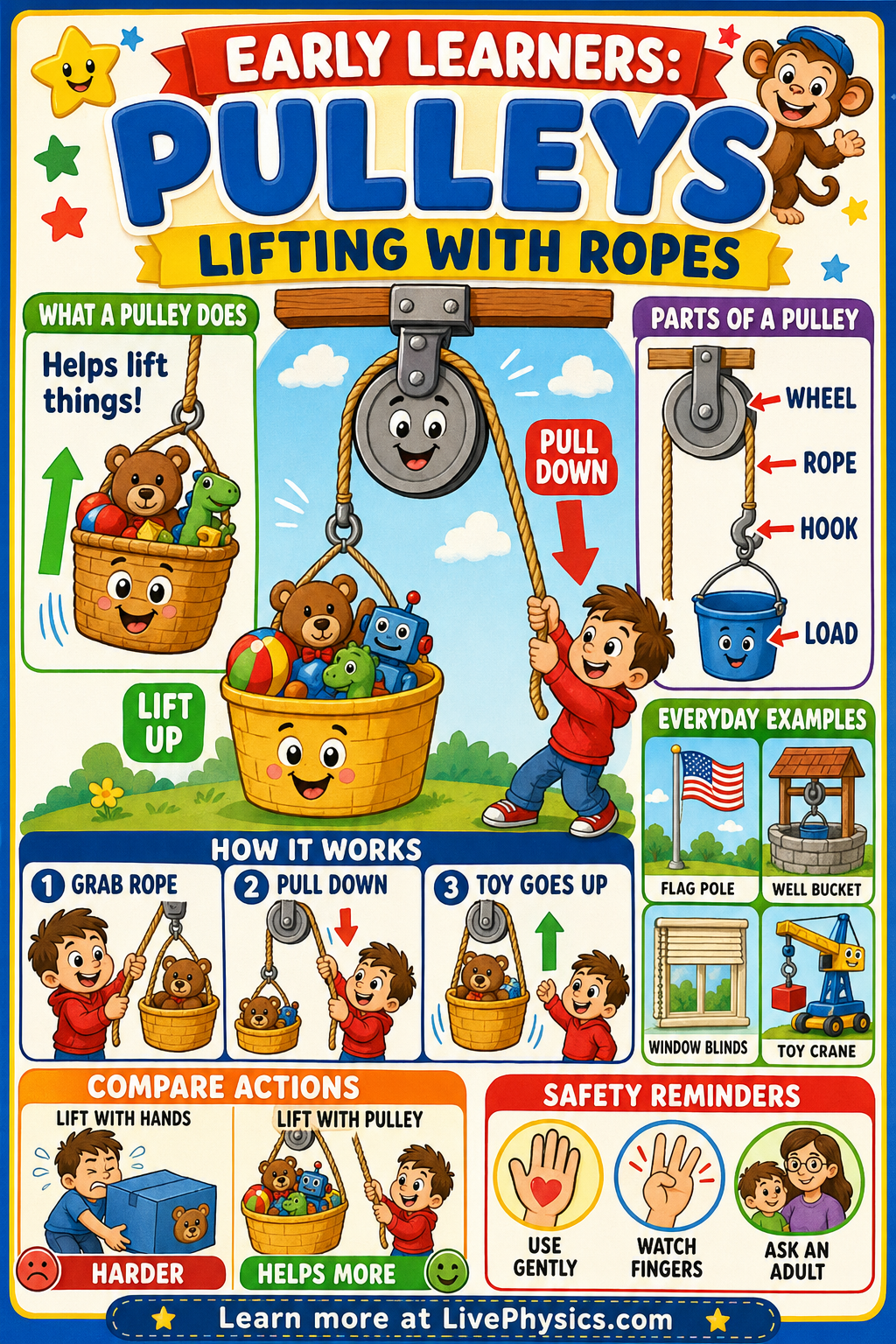

A pulley is a simple wheel with a rope that helps lift things. Young students can see pulleys on flagpoles, wells, and playground equipment. Learning about pulleys builds early ideas about how tools make work easier.
It also helps children connect science to objects they see every day.
When you pull down on one end of the rope, the other end can lift a bucket, toy, or box. The wheel helps the rope move smoothly around it. Some pulleys mainly change the direction of the pull, while others can make lifting feel easier.
Looking at pictures and real examples helps children understand how ropes, wheels, and loads work together.
Understanding Pulleys
A pulley system works by sharing the load between parts of a rope. In a fixed pulley, the wheel stays in one place. It is useful when a person needs to pull in a safer or more comfortable direction.
A flag can rise while the person stands on the ground. The amount of force needed is still close to the weight of the load, apart from friction. The main benefit is control, not extra lifting power.
A movable pulley travels upward with the load. Part of the load is supported by two stretches of rope instead of one. Each stretch carries part of the pulling force.
This means a person can use less force to raise the object. A system with several supporting rope sections can reduce the needed force further. The tradeoff is distance.
If the load is supported by two rope sections, the person must pull about twice as much rope to lift the load a certain height. Pulleys do not create energy. They exchange a larger pulling distance for a smaller pulling force.
Real pulley systems are not perfectly efficient. The rope bends around wheels, and rubbing occurs where surfaces touch. The wheels may have bearings that reduce rubbing, but some energy still becomes heat.
A rough wheel, a twisted rope, or a rope that scrapes against a frame makes lifting harder. The weight of the pulley parts matters too, especially for small loads.
In real work, people choose strong ropes and wheels that can safely hold more than the expected load. A damaged rope can snap, and a falling load can cause serious injury.
When studying pulleys, identify where the load is attached and count the rope sections directly holding it up. Do not simply count the wheels, because a wheel may only change the rope direction. Notice whether a pulley is fixed to a support or moves with the object.
Then compare the force used with the length of rope pulled. A classroom test can use a small mass, string, and a spring scale. Measure how hard the pull feels and how far the mass rises.
These observations show the central idea of machines. They can make a task more manageable, but they cannot give more work back than is put in.
Key Facts
- A pulley is a wheel with a rope.
- Pulleys help lift objects upward.
- Pulling down can lift something up.
- The rope moves around the wheel.
- Pulleys are used on flagpoles and wells.
- More than one pulley can make lifting easier.
Vocabulary
- Pulley
- A pulley is a wheel that a rope goes around to help lift things.
- Rope
- A rope is the long line you pull to move or lift something.
- Lift
- Lift means to move something up.
- Load
- A load is the thing being lifted, like a bucket or box.
- Wheel
- The wheel is the round part that helps the rope turn smoothly.
Common Mistakes to Avoid
- Thinking the pulley lifts by itself, but a person still needs to pull the rope to move the load.
- Calling the rope the pulley, which is wrong because the pulley is the wheel and the rope is a separate part.
- Believing every pulley makes lifting easier, but some pulleys mostly change the direction you pull.
- Ignoring what is being lifted, which is wrong because the load is an important part of the pulley system.
Practice Questions
- 1 A flag is at the bottom of a flagpole. You pull the rope down. What happens to the flag?
- 2 A bucket is tied to a rope over a pulley. If you pull the rope, does the bucket move up, down, or stay still?
- 3 Why might a pulley on a flagpole be easier to use than trying to push the flag straight up with your hands?
