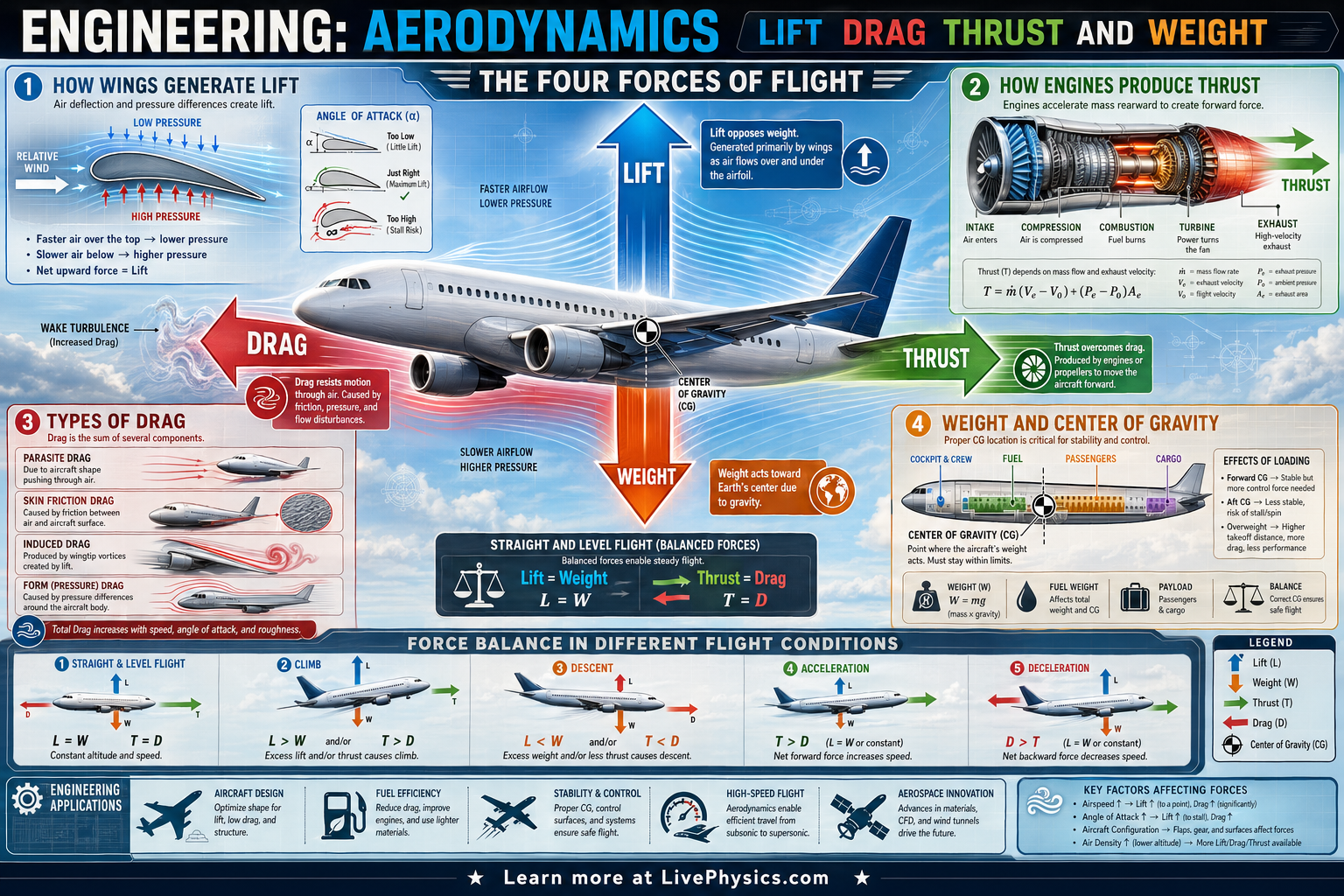

Aerodynamics: Lift, Drag, Thrust, and Weight
Airflow, Wing Shape, and the Four Forces of Flight
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
An airplane in steady flight is controlled by four main forces: lift, drag, thrust, and weight. These forces determine whether the aircraft climbs, descends, speeds up, or slows down. Understanding how they interact is a core idea in engineering because it connects physics, design, and real flight performance. Pilots and aerospace engineers both rely on these ideas to predict and control motion through the air.
Lift is produced when air moves around a wing and creates a pressure difference, while drag resists motion through the air. Thrust comes from engines pushing the airplane forward, and weight is the downward force due to gravity acting on the aircraft's mass. In straight and level flight, lift balances weight and thrust balances drag. When one force becomes larger than its opposing force, the airplane accelerates or changes altitude.
Key Facts
- Weight = mg, where m is mass and g is gravitational field strength
- In straight and level constant speed flight: Lift = Weight and Thrust = Drag
- Net force = ma, so unbalanced forces cause acceleration
- Lift equation: L = 0.5 rho v^2 S CL
- Drag equation: D = 0.5 rho v^2 S CD
- Increasing speed usually increases both lift and drag because both depend on v^2
Vocabulary
- Lift
- Lift is the upward aerodynamic force produced mainly by the wings as air flows around them.
- Drag
- Drag is the air resistance force that acts opposite the direction of motion.
- Thrust
- Thrust is the forward force generated by an engine or propeller that pushes the aircraft through the air.
- Weight
- Weight is the downward force of gravity acting on the mass of the airplane.
- Angle of attack
- Angle of attack is the angle between the wing's chord line and the oncoming airflow.
Common Mistakes to Avoid
- Assuming lift always points straight up, which is wrong because lift acts perpendicular to the relative airflow and can tilt during maneuvers. This changes how much of lift supports the airplane's weight.
- Thinking thrust makes an airplane rise, which is wrong because thrust mainly acts forward. Climbing usually happens when lift and the aircraft's flight path change along with engine power.
- Believing heavier airplanes cannot fly, which is wrong because wings can produce more lift if speed, wing area, or angle of attack are adjusted within safe limits. Weight changes the required lift, not the possibility of flight.
- Ignoring drag at high speed, which is wrong because drag increases strongly with speed and can become large enough to limit acceleration. Engineers must design shapes that reduce unnecessary drag.
Practice Questions
- 1 An airplane has a mass of 1200 kg. Calculate its weight on Earth using g = 9.8 m/s^2.
- 2 In straight and level flight, an airplane experiences 18000 N of drag. What thrust is needed to maintain constant speed, and what is the net horizontal force?
- 3 An airplane increases engine power and begins to speed up while staying at the same altitude. Explain what this tells you about the balance between thrust and drag, and about lift and weight.
