Aerodynamics explains how air moves around objects and how wings create lift. This cheat sheet focuses on airfoils, lift, angle of attack, drag, and the engineering quantities used to estimate flight performance. Students need these ideas to connect physics principles with aircraft design, wind tunnels, drones, turbines, and vehicle testing.
It is meant as a quick reference for solving problems and interpreting airfoil diagrams.
Key Facts
- The lift equation is L = 0.5 rho V^2 S CL, where L is lift, rho is air density, V is airspeed, S is wing area, and CL is coefficient of lift.
- Dynamic pressure is q = 0.5 rho V^2, so lift can also be written as L = q S CL.
- Angle of attack is the angle between the chord line of an airfoil and the incoming airflow direction.
- For many airfoils before stall, increasing angle of attack increases CL approximately linearly.
- Stall occurs when airflow separates significantly from the upper surface and lift decreases even if angle of attack increases.
- The drag equation is D = 0.5 rho V^2 S CD, where CD is coefficient of drag.
- Lift-to-drag ratio is L/D, and a higher L/D usually means a more aerodynamically efficient wing.
- Reynolds number is Re = rho V c / mu, where c is chord length and mu is dynamic viscosity.
Vocabulary
- Airfoil
- A cross-sectional shape designed to produce useful aerodynamic forces when air flows around it.
- Chord line
- The straight reference line from the leading edge to the trailing edge of an airfoil.
- Angle of attack
- The angle between the airfoil chord line and the direction of the oncoming airflow.
- Coefficient of lift
- A dimensionless number, CL, that describes how effectively a shape produces lift under given flow conditions.
- Stall
- A flow condition where separated airflow causes a major loss of lift and increased drag.
- Camber
- The curvature of an airfoil's mean line, which strongly affects lift at a given angle of attack.
Common Mistakes to Avoid
- Confusing angle of attack with flight path angle is wrong because angle of attack is measured relative to the incoming airflow, not the horizon.
- Using speed without squaring it in the lift equation is wrong because lift depends on V^2 through dynamic pressure.
- Assuming more angle of attack always means more lift is wrong because after stall, separated flow reduces lift and increases drag.
- Forgetting units in air density, area, and speed is wrong because L = 0.5 rho V^2 S CL gives newtons only when SI units are used consistently.
- Treating CL as a fixed constant is wrong because CL changes with airfoil shape, angle of attack, Reynolds number, and flow conditions.
Practice Questions
- 1 An aircraft wing has rho = 1.20 kg/m^3, V = 40 m/s, S = 16 m^2, and CL = 0.80. Calculate the lift force.
- 2 A small drone wing has S = 0.50 m^2, V = 18 m/s, rho = 1.18 kg/m^3, and CL = 0.65. Find its lift in newtons.
- 3 For an airfoil with rho = 1.225 kg/m^3, V = 30 m/s, chord c = 0.40 m, and mu = 1.8 x 10^-5 Pa s, calculate the Reynolds number.
- 4 Explain why an airfoil can lose lift when the angle of attack becomes too large, even though the wing is tilted more into the airflow.

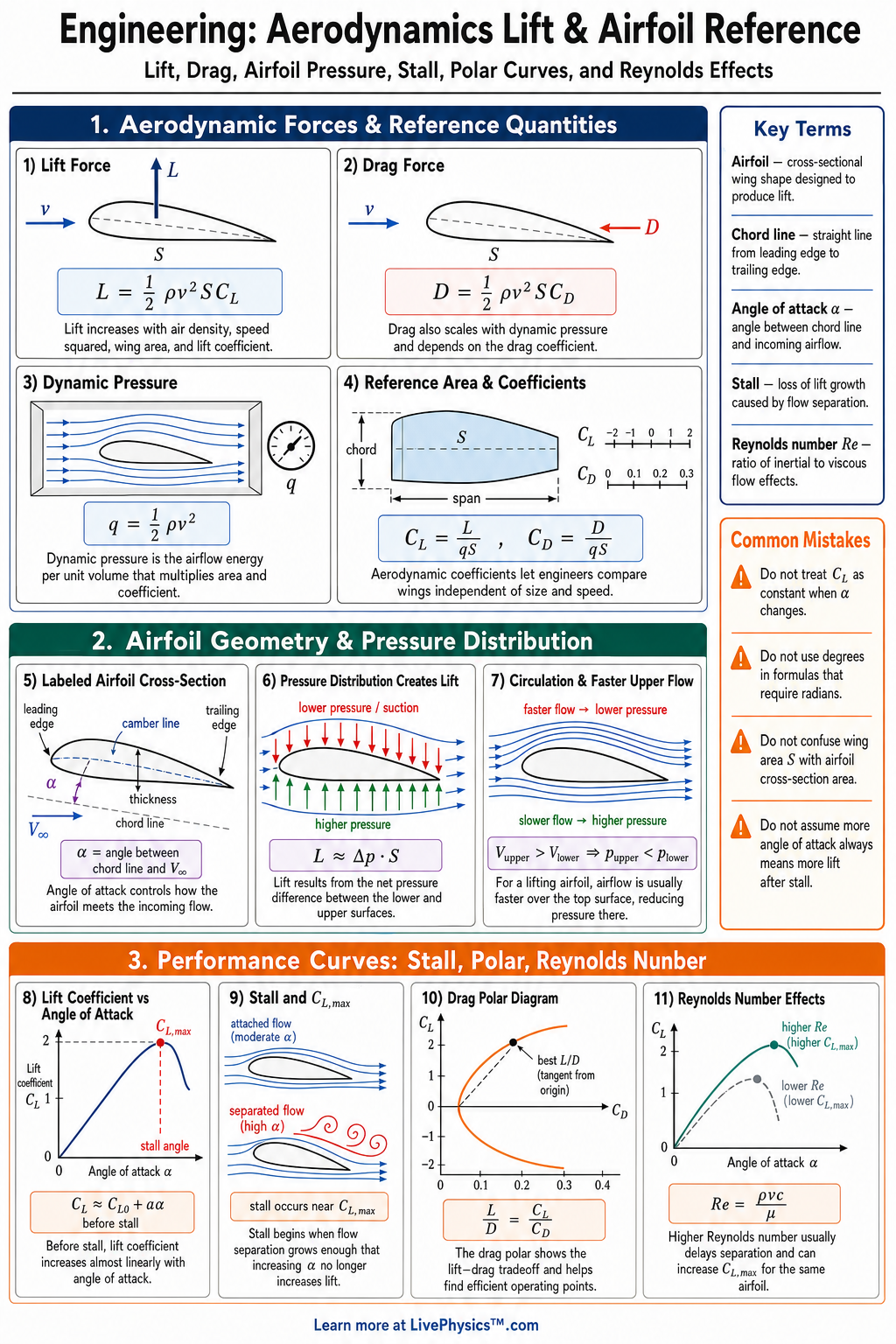

Understanding Aerodynamics Lift & Airfoil Reference
Lift is best understood by tracking the total change in the air's motion. A wing set at a useful angle turns nearby air downward. The air gains downward momentum, so the wing receives an upward force.
Pressure differences around the surface are the local way this force appears. Pressure is often lower over much of the upper surface and higher below the wing, but the full pressure pattern matters more than one simple statement. Engineers add the pressure forces over every small part of the airfoil to find the net lift and the pitching moment.
The pitching moment tends to rotate the wing nose up or nose down. Aircraft need a tail or another control surface to balance this rotation.
The smooth flow next to a wing is not equally smooth everywhere. A very thin region called the boundary layer forms along the surface because air sticks to the material. Friction slows this air.
As the flow moves toward the rear of the airfoil, it may have to move into a region of rising pressure. Slower boundary layer air can lose enough energy that it reverses direction near the surface. This creates separation, a disturbed wake, and much more drag.
Stall is therefore not simply a fixed angle written on a chart. Its onset changes with surface roughness, rain, ice, turbulence, flap position, and the Reynolds number. A small model tested in air may not behave exactly like a full size wing because its chord length and flow conditions differ.
Airfoil shape sets important tradeoffs. More camber can produce useful lift at a smaller angle, which helps during slow flight. A thicker airfoil can provide room and strength for internal structure, though it may create more drag at high speed.
A rounded leading edge usually allows a wider range of angles before separation begins. A sharp leading edge can give a more sudden stall. Flaps change the effective shape of the rear section of a wing.
They increase camber and often increase the wing area, allowing greater lift for takeoff and landing. The cost is higher drag. Slats near the leading edge help keep flow attached at larger angles by energizing the boundary layer.
In calculations, keep the reference area and the flow condition consistent. A lift coefficient or drag coefficient is not a permanent property of a wing. It changes with angle, Reynolds number, surface condition, and sometimes compressibility effects.
At low speeds, a larger wing area or greater lift coefficient can support weight. At higher speeds, the airspeed term grows very quickly because speed is squared. This is why a modest increase in speed can greatly change the load on a drone wing or a car spoiler.
When reading graphs, pay close attention to axes, units, and the point where the lift curve stops being nearly straight. That point often reveals the practical operating limit more clearly than an ideal equation does.
