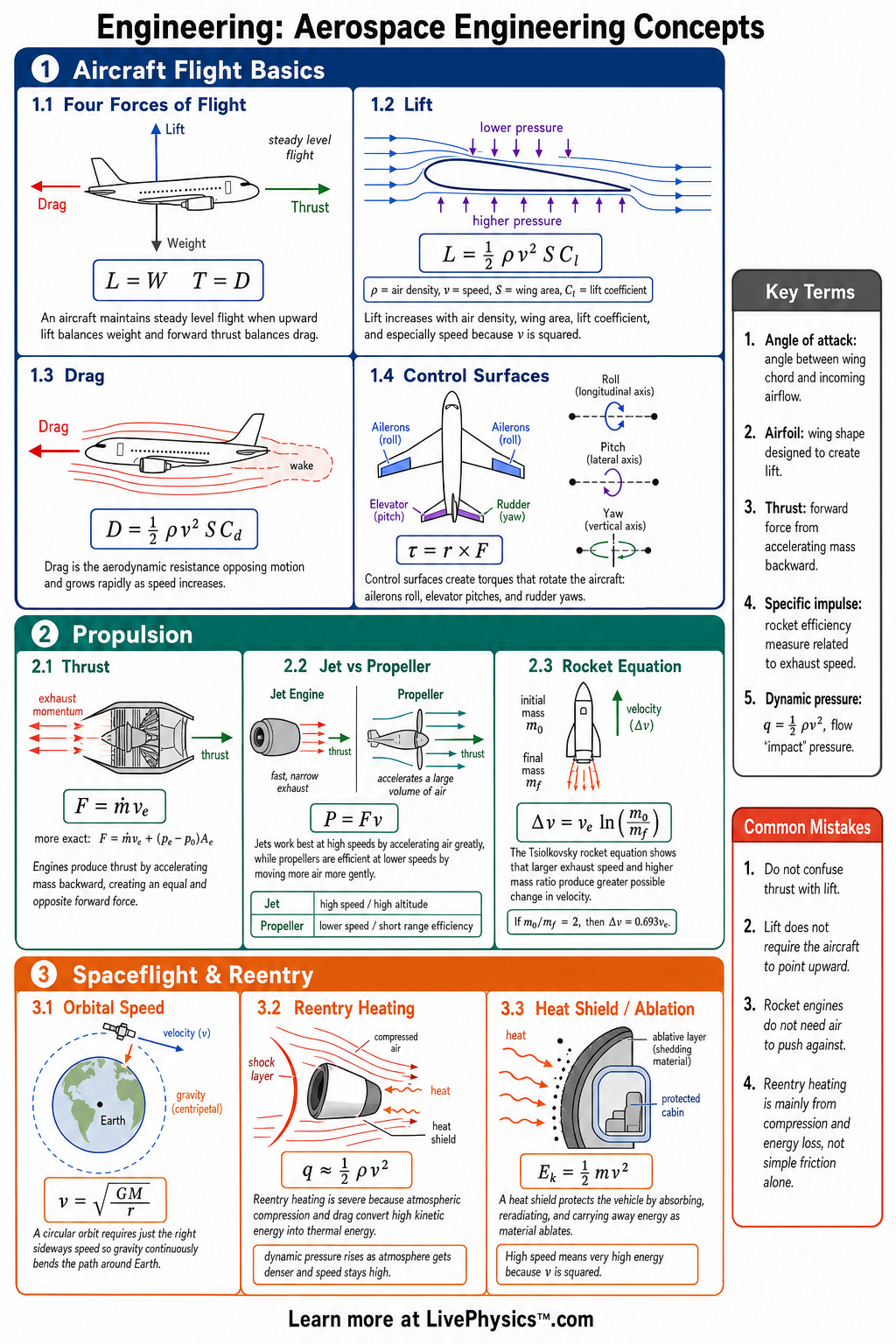

Click image to open full size
Aerospace Engineering Concepts Cheat Sheet
A printable reference covering lift, drag, thrust, weight, Bernoulli's principle, Newton's laws, stability, and orbital motion for grades 9-12.
Related Tools
Related Labs
Related Worksheets
Aerospace engineering studies how aircraft, rockets, satellites, and spacecraft are designed to move safely through air and space. This cheat sheet helps students connect physics ideas such as forces, pressure, motion, and energy to real engineering systems. It is useful for reviewing the main equations and design tradeoffs used in flight, propulsion, and orbital motion. Students can use it as a quick reference when solving problems or comparing aircraft and spacecraft designs. The most important concepts are the four forces of flight, aerodynamic lift and drag, propulsion, stability, and basic orbital mechanics. Lift and drag depend on air density, speed, surface area, and shape, while thrust depends on how quickly a vehicle accelerates mass backward. Rockets are different from airplanes because they carry both fuel and oxidizer and can work in space. Aerospace engineers use these formulas with safety margins, testing, and iteration to design vehicles that meet mission goals.
Key Facts
- The four main forces on an aircraft are lift upward, weight downward, thrust forward, and drag backward.
- Lift is modeled by L = 0.5 rho v^2 S CL, where rho is air density, v is speed, S is wing area, and CL is the lift coefficient.
- Drag is modeled by D = 0.5 rho v^2 S CD, where CD is the drag coefficient and higher speed greatly increases drag.
- Dynamic pressure is q = 0.5 rho v^2, which shows how airflow pressure effects grow with the square of speed.
- Thrust can be modeled by F = m_dot delta v, where m_dot is mass flow rate and delta v is the change in exhaust velocity.
- A rocket's ideal velocity change is delta v = Isp g0 ln(m0 / mf), where Isp is specific impulse and m0 / mf is the mass ratio.
- For a circular orbit, orbital speed is v = sqrt(GM / r), where G is the gravitational constant, M is the central body's mass, and r is orbital radius.
- Static stability means a vehicle naturally tends to return toward its original attitude after a small disturbance.
Vocabulary
- Lift
- Lift is the aerodynamic force that acts mostly perpendicular to the airflow and helps support an aircraft's weight.
- Drag
- Drag is the aerodynamic force that opposes motion through air or another fluid.
- Thrust
- Thrust is the forward force produced by a propeller, jet engine, or rocket engine.
- Angle of Attack
- Angle of attack is the angle between a wing's chord line and the oncoming airflow.
- Specific Impulse
- Specific impulse is a measure of rocket or engine efficiency that describes thrust produced per unit weight flow of propellant.
- Orbit
- An orbit is the curved path of an object moving around a planet, moon, star, or other body under gravity.
Common Mistakes to Avoid
- Confusing mass and weight is wrong because mass measures how much matter an object has, while weight is the gravitational force W = mg.
- Assuming lift only comes from Bernoulli's principle is incomplete because lift also depends on Newton's laws, airflow deflection, wing shape, and angle of attack.
- Forgetting that drag increases with v^2 is wrong because doubling speed makes the drag force about four times larger if other factors stay constant.
- Using rocket equations for airplanes is wrong because airplanes use oxygen from the atmosphere, while rockets must carry oxidizer and work by expelling mass.
- Ignoring units in aerospace formulas leads to incorrect answers because quantities such as density, area, speed, and force must be in compatible units.
Practice Questions
- 1 An aircraft flies at 70 m/s through air with density 1.2 kg/m^3. If its wing area is 16 m^2 and CL = 0.80, calculate the lift using L = 0.5 rho v^2 S CL.
- 2 A model rocket engine expels gas at a mass flow rate of 0.40 kg/s with an exhaust speed change of 900 m/s. Calculate the thrust using F = m_dot delta v.
- 3 A satellite is in a circular orbit where GM = 3.99 x 10^14 m^3/s^2 and r = 6.77 x 10^6 m. Calculate the orbital speed using v = sqrt(GM / r).
- 4 Explain why a spacecraft designed for orbit does not need wings for lift, but an airplane flying in Earth's atmosphere does.
