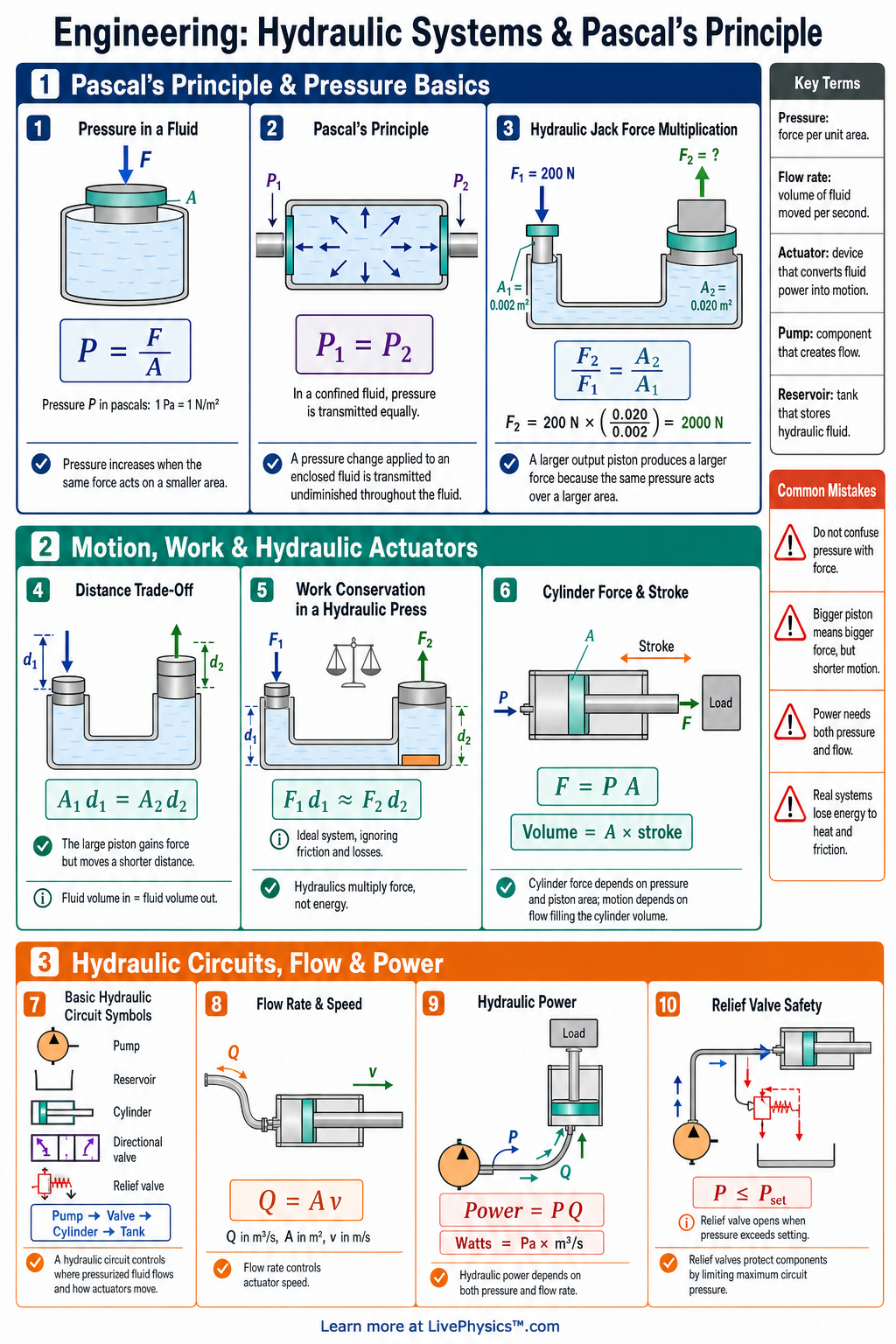

Hydraulic systems use trapped liquids to transfer force and motion in machines such as car brakes, lifts, excavators, and aircraft controls. This cheat sheet covers Pascal's principle, pressure basics, and the engineering calculations used to predict hydraulic force. Students need it because hydraulic systems connect physics formulas to real design problems involving safety, load capacity, and efficiency.
The most important idea is that pressure applied to an enclosed fluid is transmitted equally throughout the fluid. Since pressure equals force divided by area, a small force on a small piston can create a larger force on a larger piston. Engineers use formulas such as P = F/A and F2/F1 = A2/A1 to design systems that lift heavy loads while controlling motion and energy losses.
Key Facts
- Pressure is force spread over area, so P = F/A, where pressure is in pascals, force is in newtons, and area is in square meters.
- Pascal's principle states that a pressure change applied to an enclosed fluid is transmitted equally in all directions throughout the fluid.
- In an ideal hydraulic system, the pressure is the same at connected pistons, so F1/A1 = F2/A2.
- Hydraulic force multiplication follows F2 = F1 x A2/A1, so a larger output piston creates a larger output force.
- For circular pistons, area is A = pi r^2 or A = pi d^2/4, where r is radius and d is diameter.
- Ideal hydraulic systems conserve work, so F1 x d1 = F2 x d2 when friction and fluid losses are ignored.
- Increasing output force reduces output distance, so a hydraulic lift trades distance moved for force gained.
- Real hydraulic systems lose energy because of friction, leaks, fluid viscosity, heat, and deformation of parts.
Vocabulary
- Pascal's principle
- The rule that pressure applied to an enclosed fluid is transmitted equally throughout the fluid in all directions.
- Pressure
- Force per unit area, calculated with P = F/A and measured in pascals.
- Hydraulic system
- A machine that uses an enclosed liquid to transfer pressure and produce force or motion.
- Piston
- A moving cylinder or disk that applies force to a fluid or receives force from a fluid.
- Mechanical advantage
- The factor by which a machine multiplies input force, calculated in hydraulics as MA = Fout/Fin = Aout/Ain for an ideal system.
- Incompressible fluid
- A fluid whose volume changes very little under pressure, making it useful for transmitting force in hydraulic systems.
Common Mistakes to Avoid
- Using diameter as area is wrong because piston area depends on the square of radius or diameter. Use A = pi r^2 or A = pi d^2/4 before applying hydraulic formulas.
- Assuming the larger piston has larger pressure is wrong in an ideal connected hydraulic fluid. The pressure is equal, but the force changes because the piston areas are different.
- Forgetting to convert square centimeters to square meters gives pressure or force values that are off by large factors. Use 1 cm^2 = 0.0001 m^2 when working in SI units.
- Ignoring the tradeoff between force and distance is wrong because hydraulics do not create energy. If output force increases, output distance decreases in an ideal system.
- Treating real systems as perfectly efficient can lead to unsafe designs. Friction, leaks, heat, and fluid resistance reduce output force and must be considered in engineering.
Practice Questions
- 1 A student pushes on a 0.002 m^2 input piston with a force of 80 N. What pressure is applied to the hydraulic fluid?
- 2 A hydraulic lift has an input piston area of 0.004 m^2 and an output piston area of 0.12 m^2. If the input force is 150 N, what is the ideal output force?
- 3 A circular piston has a diameter of 0.10 m. What is its area, using A = pi d^2/4 and pi = 3.14?
- 4 Explain why a hydraulic jack can lift a car with a small input force but cannot lift it through the same distance that the handle moves.
Understanding Hydraulic Systems & Pascal's Principle
Liquids work well in hydraulic machines because they are very hard to compress. When a piston pushes oil in a sealed line, most of the input motion becomes a pressure change rather than a squeezing of the liquid itself. This gives the system a firm response.
The liquid does not create energy or force from nothing. It carries pressure to another place. The larger piston can push harder because pressure acts over more surface area.
Its movement must be smaller by the matching ratio. A piston with four times the area needs to move only one quarter as far to balance the work. This distance trade is the central limit behind every hydraulic force multiplier.
The layout of the circuit affects how a machine behaves. A pump moves fluid volume through pipes. A control valve directs that flow into one side of a cylinder or the other.
Fluid entering one chamber extends the piston rod, while fluid entering the opposite chamber retracts it. The two sides of a cylinder often have different effective areas because the rod takes up space on one side. Extension and retraction can therefore have different speeds and forces even with the same pump flow.
A narrow pipe or partly closed valve restricts flow. This can slow an actuator, yet it can waste energy as heat if the restriction is too large.
Car brakes show why hydraulic design needs care. Pressing the brake pedal moves a small amount of brake fluid from the master cylinder. The pressure reaches calipers at the wheels, where pistons clamp pads onto spinning discs.
The pedal linkage and piston sizes are chosen to give the driver useful control, not simply the greatest possible force. Air bubbles are a serious problem because air compresses easily. Some pedal travel then goes into squeezing the bubbles, producing a soft pedal and delayed braking.
Water contamination, damaged seals, or a fluid leak can create safety risks. Engineers choose fluids that remain stable across hot and cold conditions and that protect moving parts from wear.
When solving hydraulic problems, keep force, pressure, area, distance, and volume separate in your thinking. Force tells how strongly a piston pushes. Pressure tells how concentrated that push is.
Volume links the motion of the pistons because the volume displaced by one piston must enter the other chamber, apart from small losses. Convert all lengths into metres before finding area if the answer is needed in standard units. For a circular piston, use its radius carefully, since the diameter is twice the radius.
In real equipment, the calculated ideal result is an upper limit. Friction at seals, bending hoses, internal leakage, and heating reduce the useful output. A design must include a safety margin so it can lift its rated load reliably rather than only under perfect conditions.
