Embedded systems are tiny computers built into larger devices to control specific tasks. They appear in everyday products like microwaves, cars, fitness trackers, washing machines, and traffic lights. Unlike a general purpose laptop, an embedded system is usually designed for one main job and must do it reliably.
Engineers study embedded systems because they connect software, electronics, sensors, and real world machines.

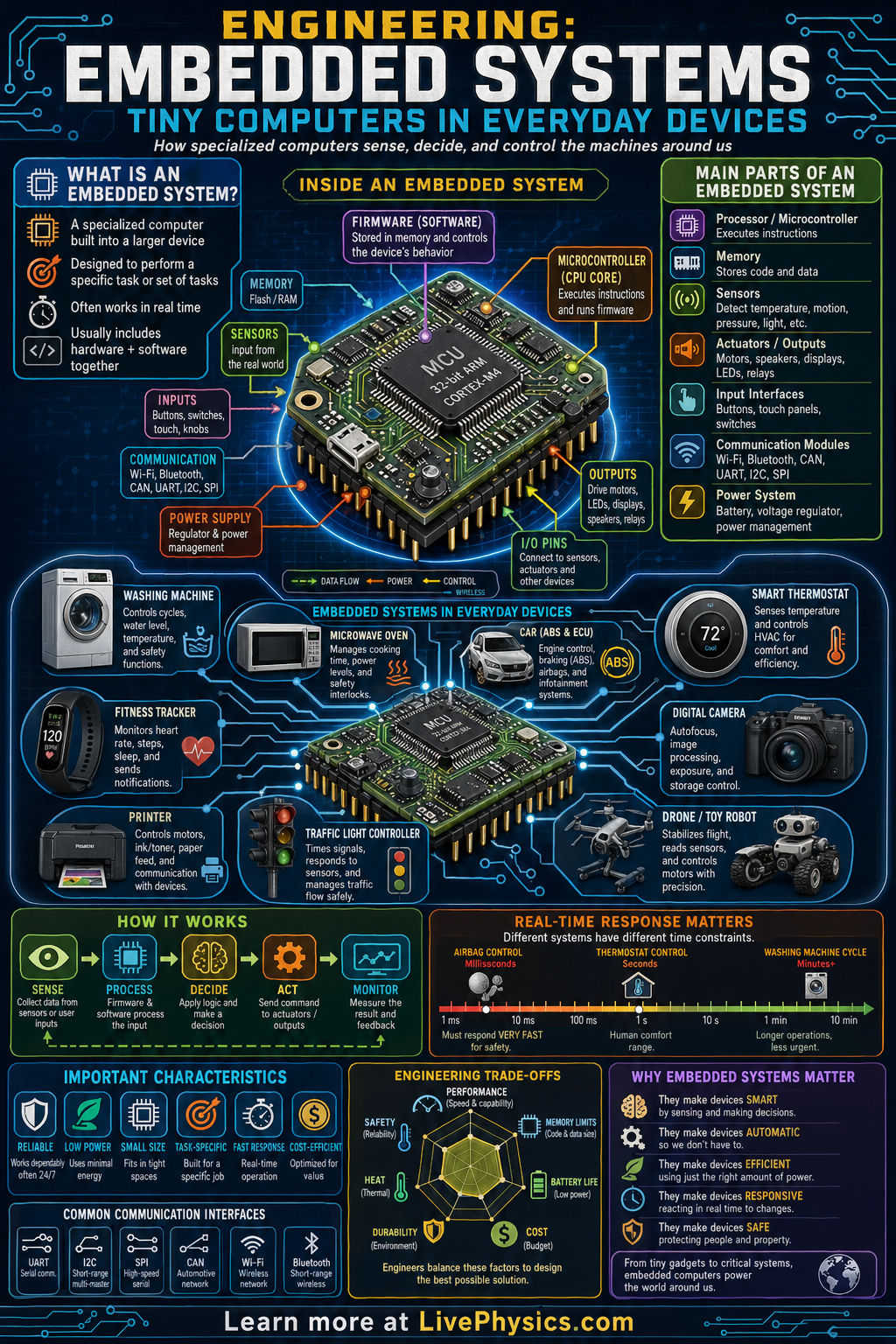

A typical embedded system includes a microcontroller, memory, input and output circuits, and software called firmware. The microcontroller reads inputs from buttons or sensors, processes the information, and sends outputs to motors, displays, speakers, or communication modules. Many embedded systems must respond in real time, meaning they have to react within a strict time limit.
Good embedded design balances speed, power use, cost, size, and safety.
Understanding Embedded Systems: Tiny Computers Inside Everyday Devices
Sensors do not usually give a microcontroller neat, ready-to-use answers. A temperature sensor may produce a changing voltage. A light sensor may change its resistance as the room gets darker.
The microcontroller uses an analogue to digital converter to turn a voltage into a number it can compare with a stored limit. Digital sensors send patterns of high and low signals instead.
Engineers must consider noise, loose connections, heat, and imperfect sensor readings. A program often takes several readings and averages them so one bad measurement does not cause a false action.
Buttons create a common problem called bounce. When a button is pressed, its metal contacts can touch and separate many times in a few milliseconds. Without protection, one press might look like several presses.
Firmware can wait briefly before accepting the signal, or the circuit can smooth the signal with electronic parts. Timers are important for this job. They measure short delays, create regular pulses, and schedule repeated tasks.
In a digital clock, a timer helps count seconds. In a motor controller, it can create pulse width modulation, where a signal switches on and off quickly to control the average power sent to the motor.
Real time behaviour depends on more than a fast processor. The system must give urgent events priority. A car airbag controller cannot wait while it updates a dashboard display.
An interrupt is a signal that briefly pauses normal code so the processor can deal with an important event. Engineers keep interrupt routines short because long routines can delay other work. They may use a simple repeating program loop for a toy, while a medical monitor or vehicle controller may use a real time operating system to organise many tasks with deadlines.
Firmware is written, tested, and placed in non-volatile memory so it remains when power is removed. It needs careful testing because updating a device after it is sold can be difficult. A safe design plans for faults.
A battery monitor can shut down before the voltage becomes too low. A watchdog timer can restart the processor if the program stops responding. A microwave should turn off heating if its door switch reports that the door is open.
These choices show that embedded engineering is not only about making a device work. It is about deciding how it should fail when a wire breaks, a sensor gives an impossible value, or power is interrupted.
Students often meet these ideas with small boards such as Arduino style microcontrollers. A useful first project reads a button, controls an LED, then adds a sensor or motor. Pay attention to the difference between program logic and electrical limits.
An LED needs a resistor to limit current. A motor can draw far more current than a microcontroller pin can supply, so it needs a driver circuit. Check the voltage, current, and power before connecting parts.
Power equals voltage times current, while voltage equals current times resistance. Good habits include reading data sheets, testing one feature at a time, and using serial messages or indicator lights to find where a program is failing.
Key Facts
- An embedded system is a computer system designed to perform a dedicated function inside a larger device.
- A microcontroller often combines CPU + memory + input/output peripherals on one chip.
- Digital power relation: P = V x I
- Ohm's law is used often in embedded circuits: V = I x R
- Clock frequency helps set processing speed: T = 1/f
- Many embedded systems follow the loop sense -> process -> act, where sensors provide input and actuators produce output.
Vocabulary
- Embedded system
- A small computer built into a device to control a specific function or set of functions.
- Microcontroller
- A compact integrated circuit that contains a processor, memory, and input output hardware for control tasks.
- Sensor
- A component that detects a physical quantity such as temperature, light, or motion and converts it into an electrical signal.
- Actuator
- A device that takes an electrical signal and produces a physical action such as movement, sound, or switching.
- Firmware
- The low level software stored in an embedded system that tells the hardware how to operate.
Common Mistakes to Avoid
- Assuming an embedded system is just any small computer, which is wrong because embedded systems are usually designed for dedicated tasks inside larger products.
- Ignoring real time requirements, which is wrong because some devices must respond within strict deadlines to stay safe and function correctly.
- Forgetting that sensors and actuators are part of the system, which is wrong because embedded design includes interaction with the physical world, not just code on a chip.
- Treating lower power use as unimportant, which is wrong because many embedded devices run on batteries or must limit heat and energy consumption.
Practice Questions
- 1 A sensor module in an embedded device operates at 5 V and draws 0.20 A. Calculate its power using P = V x I.
- 2 A microcontroller clock runs at 8.0 MHz. Find the clock period using T = 1/f.
- 3 A washing machine controller and a laptop both contain processors. Explain why the washing machine controller is considered an embedded system and describe one design priority that is more important for it than for a general purpose computer.
