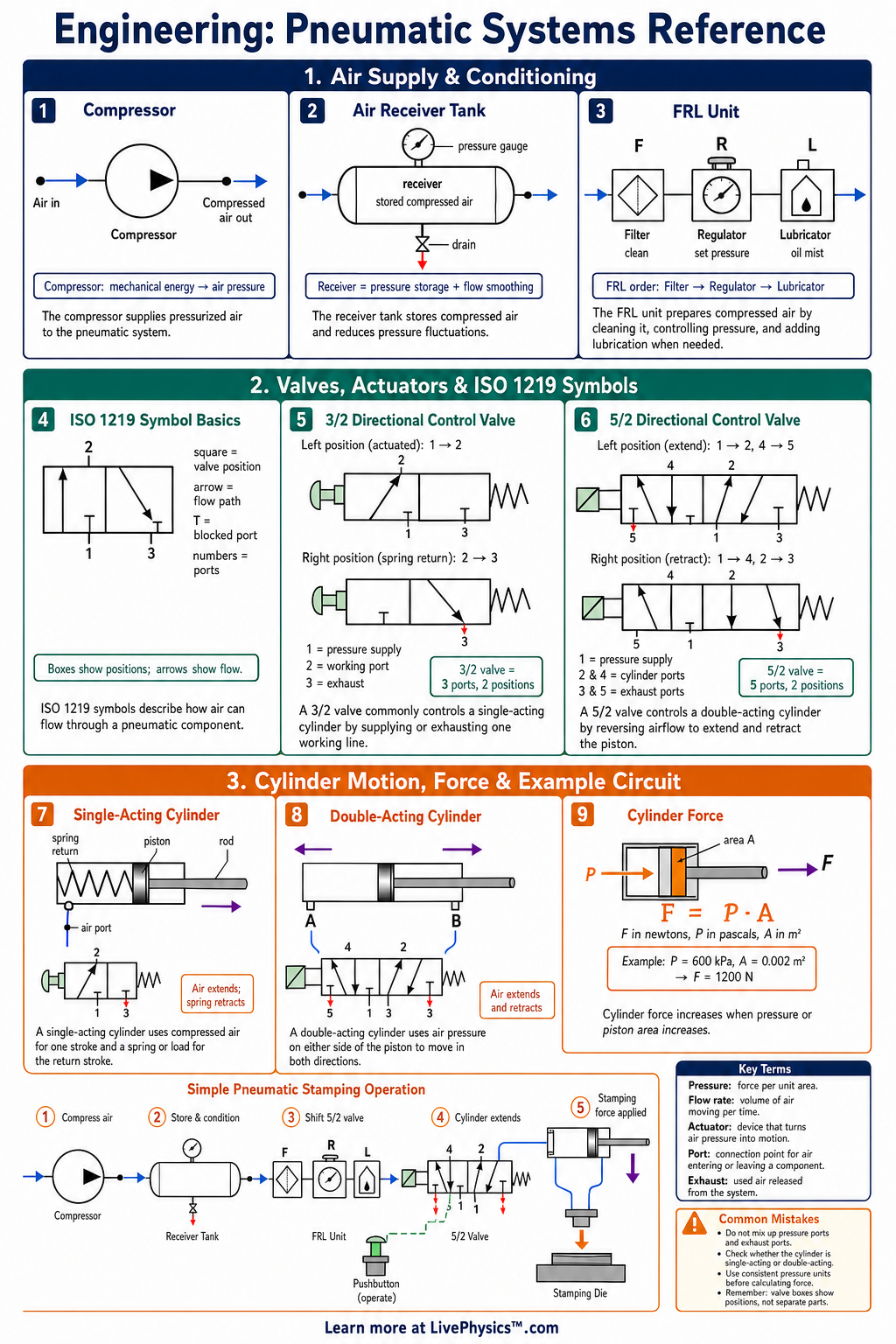

Pneumatic systems use compressed air to move, clamp, lift, push, and control machines. This cheat sheet helps students connect engineering symbols, formulas, and component functions in one quick reference. It is useful for reading circuit diagrams, sizing cylinders, and checking safe operating pressure.
Students in grades 9-12 can use it during design work, labs, and technical drawing practice.
The most important ideas are pressure, force, area, flow, and control direction. A cylinder produces force when compressed air acts on the piston area, using F = P x A. Valves control where air flows, while compressors, regulators, filters, and lubricators prepare the air supply.
Good pneumatic design also includes safe pressure limits, exhaust paths, and clear circuit labeling.
Key Facts
- Pressure is force divided by area, so P = F / A and force is F = P x A.
- For a round piston, area is A = pi x d^2 / 4, where d is the piston diameter.
- A single-acting cylinder uses air pressure for motion in one direction and a spring or load to return.
- A double-acting cylinder uses air pressure to move in both extension and retraction directions.
- A 3/2 valve has 3 ports and 2 positions and is commonly used to control a single-acting cylinder.
- A 5/2 valve has 5 ports and 2 positions and is commonly used to control a double-acting cylinder.
- Flow rate can be estimated with Q = V / t, where Q is flow, V is air volume, and t is time.
- Mechanical power in a moving actuator can be estimated with Power = Force x velocity.
Vocabulary
- Pneumatics
- Pneumatics is the use of compressed air to transmit energy and control motion.
- Pressure
- Pressure is the amount of force applied over a unit area, often measured in pascals, bar, or psi.
- Actuator
- An actuator is a device, such as a cylinder or air motor, that converts compressed air energy into motion.
- Directional Control Valve
- A directional control valve is a component that routes compressed air to different paths in a circuit.
- FRL Unit
- An FRL unit is a filter, regulator, and lubricator assembly used to clean, control, and condition compressed air.
- Exhaust Port
- An exhaust port is an opening where used compressed air leaves a valve or actuator.
Common Mistakes to Avoid
- Using diameter instead of area in F = P x A is wrong because pressure acts over the piston area, not just across its width.
- Ignoring units is wrong because psi, pascals, bar, square inches, and square meters cannot be mixed without conversion.
- Confusing a 3/2 valve with a 5/2 valve is wrong because they have different port counts and are used for different actuator types.
- Forgetting the exhaust path is wrong because cylinders and valves need used air to leave the circuit for motion to occur.
- Assuming more pressure is always better is wrong because excessive pressure can damage components, waste energy, and create safety hazards.
Practice Questions
- 1 A cylinder has a piston area of 0.003 m^2 and air pressure of 600,000 Pa. What output force does it produce?
- 2 A pneumatic actuator moves 0.25 m in 0.5 s while producing 120 N of force. What is its approximate mechanical power?
- 3 A round piston has a diameter of 40 mm. Find its piston area in mm^2 using A = pi x d^2 / 4.
- 4 Explain why a double-acting cylinder usually needs a 5/2 directional control valve instead of a 3/2 valve.
Understanding Pneumatic Systems Reference
Compressed air behaves differently from a solid push rod because air can be compressed. When a valve opens, pressure does not become equal everywhere at once. Air must travel through pipe, fittings, valves, and cylinder ports.
Each restriction causes a pressure drop, especially when the actuator moves quickly. Long narrow tubing can make a cylinder seem weak or slow even when the compressor gauge shows the correct supply pressure.
Students should separate supply pressure from the pressure actually reaching the cylinder while it is moving. The working pressure can fall because the system cannot deliver air fast enough.
Cylinder force is not constant in every direction. In a double acting cylinder, the extending side uses the full piston face. During retraction, the piston rod takes up part of that face, leaving less area for air to act on.
Retraction force is therefore lower at the same pressure. Friction from seals, the rod, and the load reduces the useful force further.
Engineers include a safety margin instead of selecting a cylinder that only just meets the calculated load. A vertical lift needs extra allowance for gravity, sticking at the start of motion, and changes in supply pressure.
Valve diagrams show the resting condition of a circuit, not always the condition during operation. A spring symbol usually shows which position the valve returns to when no control signal is present. A solenoid, push button, roller, or air pilot shifts the valve to another position.
Port connections must be traced carefully. One port supplies air, one or more ports go to the actuator, and exhaust ports release used air. Exhaust air can be noisy and may carry oil mist or dust.
Silencers reduce noise, but a blocked silencer restricts exhaust flow and slows the actuator. In workshop circuits, students should check that exhaust ports are never plugged accidentally.
Pneumatics appear in factory pick and place machines, bus doors, packaging equipment, dentist tools, and automatic gates. Their speed is useful, but compressed air stores energy. A hose can whip if it comes loose, and a cylinder can move suddenly when pressure is restored after maintenance.
Isolation valves, pressure relief devices, guards, and lockout procedures reduce these risks. Water in compressed air causes corrosion, sticky valves, and damaged seals, so filters and drain points matter. When drawing or building a circuit, label the normal valve position, airflow paths, actuator direction, and intended sequence.
Then test at low pressure first. Watching the real motion often reveals timing, friction, and tubing problems that a neat circuit diagram cannot show.
