How Airplanes Fly
Lift, drag, thrust, and weight
Related Tools
Related Labs
Related Worksheets

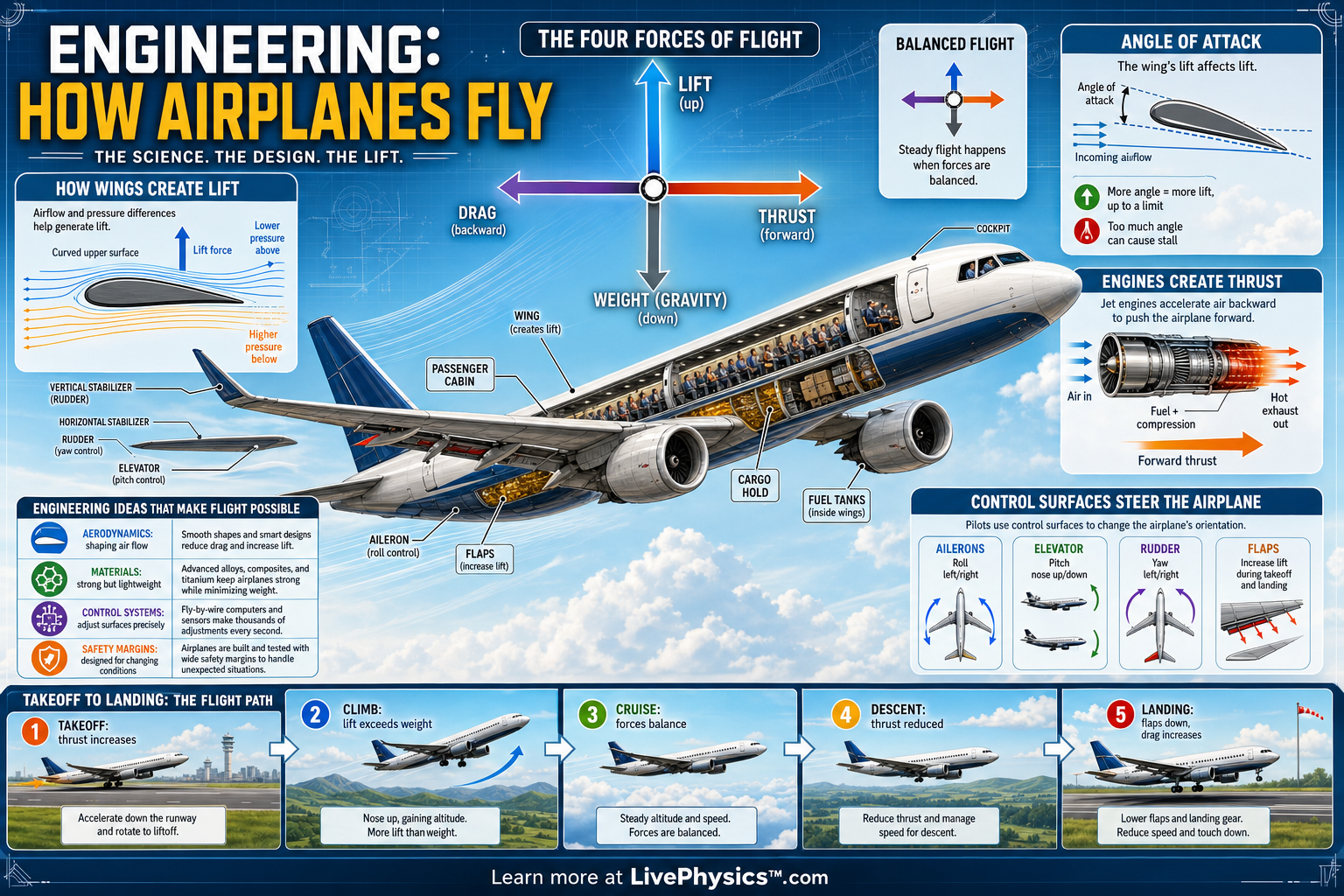

Airplanes fly because their wings, engines, and control surfaces work together to manage forces in the air. The four main forces are lift, weight, thrust, and drag, and steady flight happens when these forces balance. Engineers shape wings and airplane bodies to move air smoothly, reduce wasted energy, and keep the aircraft stable. Understanding flight connects physics, design, weather, materials, and safety in one real-world system.
A wing produces lift by deflecting air downward and creating pressure differences around its airfoil shape. Engines provide thrust to overcome drag, while the tail and movable surfaces help the pilot control pitch, roll, and yaw. During takeoff, flaps increase wing curvature and area so the airplane can produce enough lift at lower speeds. In cruise, the aircraft is trimmed for efficiency, with small control adjustments keeping it on course.
Key Facts
- Lift equation: L = 1/2 rho v^2 S CL, where rho is air density, v is airspeed, S is wing area, and CL is lift coefficient.
- Weight is the gravitational force on the airplane: W = mg.
- Thrust must overcome drag for steady level flight: T = D.
- In steady level flight, lift equals weight: L = W.
- Drag increases strongly with speed because many drag forces depend on v^2.
- Angle of attack is the angle between the wing chord line and the oncoming airflow, and too large an angle can cause a stall.
Vocabulary
- Lift
- Lift is the upward aerodynamic force produced mainly by the wings as they move through air.
- Thrust
- Thrust is the forward force produced by engines or propellers that pushes an airplane through the air.
- Drag
- Drag is the aerodynamic force that opposes an airplane's motion through the air.
- Airfoil
- An airfoil is a curved wing shape designed to create useful pressure differences and direct airflow.
- Stall
- A stall occurs when airflow separates from the wing and lift drops sharply, usually because the angle of attack is too high.
Common Mistakes to Avoid
- Thinking lift comes only from air moving faster over the top of the wing. This is incomplete because lift also depends on the wing pushing air downward and on the pressure pattern around the whole wing.
- Confusing airspeed with ground speed. Airspeed is the speed of the airplane relative to the surrounding air, while ground speed is its speed relative to the ground.
- Assuming a heavier airplane cannot fly. A heavier airplane can fly if its wings and speed produce enough lift to equal its weight.
- Using the lift equation without consistent units. Values such as area in square meters, speed in meters per second, and density in kilograms per cubic meter must match for the force to come out in newtons.
Practice Questions
- 1 An airplane has a mass of 12,000 kg. What lift force is needed for steady level flight? Use g = 9.8 m/s^2.
- 2 A wing has S = 30 m^2, CL = 1.2, air density rho = 1.2 kg/m^3, and airspeed v = 50 m/s. Use L = 1/2 rho v^2 S CL to find the lift.
- 3 During takeoff, why do pilots extend flaps instead of simply using the same wing shape as in cruise flight?
