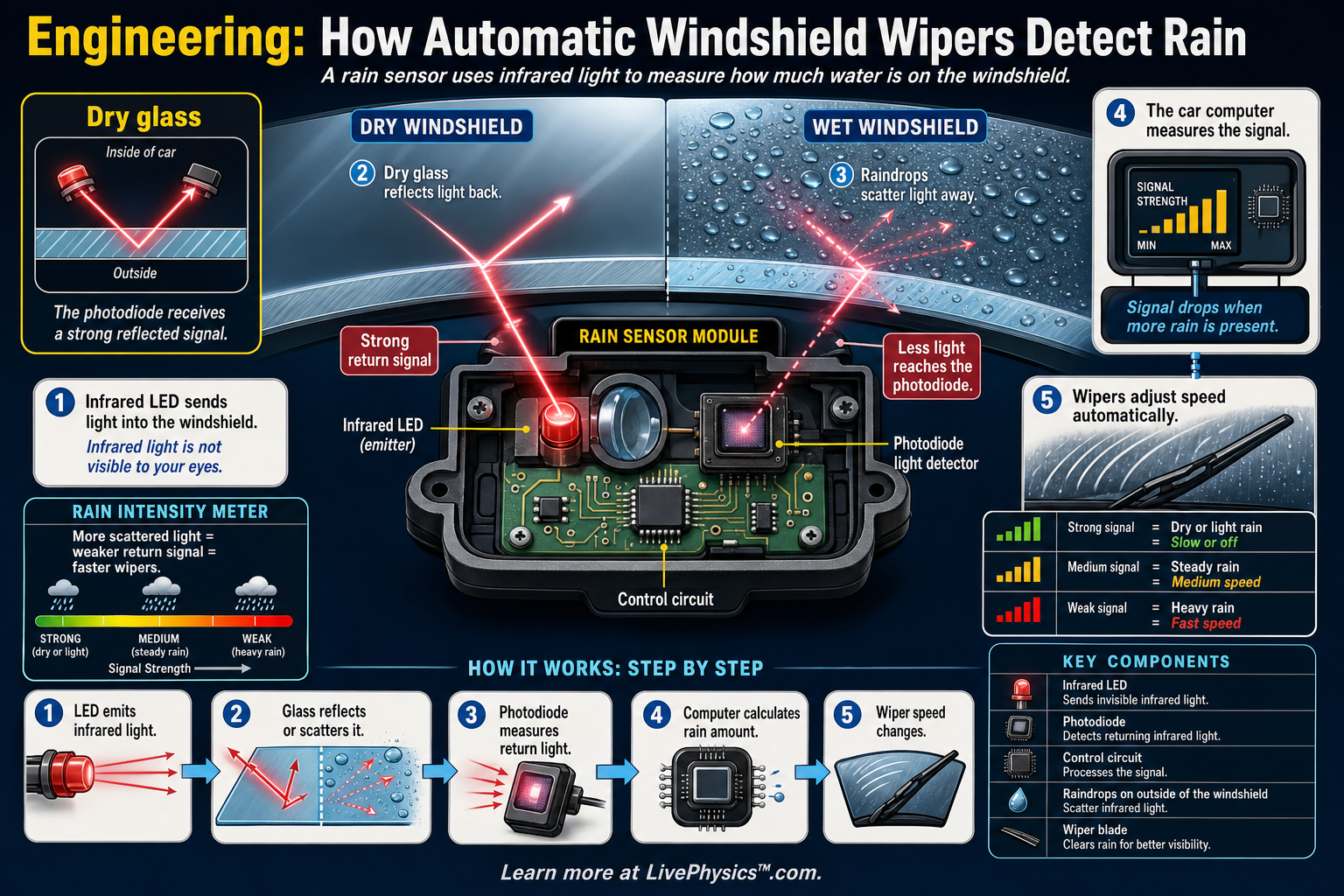

Automatic windshield wipers use a small optical sensor to detect rain before the driver has to react. The sensor is usually mounted on the inside of the windshield near the rearview mirror. It sends invisible infrared light into the glass and measures how much light comes back.
This matters because the system can adjust wiper speed quickly, improving visibility and safety in changing weather.
The key idea is reflection inside the windshield. When the glass is dry, infrared light reflects strongly within the glass and returns to a photodiode sensor. When raindrops land on the outside surface, they change how light bends and reflects, so more light scatters away and less returns.
The control computer reads the weaker signal as more rain and commands the wiper motor to wipe faster.
Understanding How Automatic Windshield Wipers Detect Rain
The important physics is the difference between the optical properties of glass, air, and water. Light changes direction when it crosses from one material into another. This bending depends on a material property called refractive index.
Glass has a higher refractive index than air. At the shallow angle used by the sensor, the light can undergo total internal reflection at a dry glass-air surface. Water has a refractive index closer to that of glass than air does.
A wet surface therefore weakens this internal reflection. Some light leaves the glass, while curved drops send some light in many directions. The sensor responds to the combined effect of many drops in its viewing area.
The electronics must turn a changing light level into a useful command. A car usually records a reference level when the windshield is known to be dry. It then compares later readings with that reference.
Signal loss can be found by subtracting the wet reading from the dry reading, dividing by the dry reading, then converting the result to a percentage. The controller does not usually change wiper speed after every tiny measurement. It averages readings over a short time and uses thresholds.
It may require the signal to stay low for a moment before increasing the wiping rate. This prevents rapid switching when a few drops pass over the sensor area.
The sensor needs good contact with the windshield to work reliably. It is commonly pressed against the glass with a clear gel pad or optical adhesive. This material helps light enter the windshield instead of reflecting at an air gap.
A dark plastic holder blocks unwanted room light and sunlight. If the gel pad is damaged during windshield replacement, the system can give poor results. Dirt, wax, road salt, ice, and dried washer fluid can affect the small outside area that the sensor observes.
The sensor only measures one patch of glass. It assumes that this patch represents the rain across the whole windshield. Wiping clears that patch, so the detected light level rises again until more water arrives.
It helps to separate rain detection from wiper control. The optical sensor does not directly measure the number of drops falling from the sky. It measures a change in returned light, which the car treats as evidence of wetness.
Different windshield types, coatings, drop sizes, and vehicle speed can change that relationship. Many cars therefore provide a driver sensitivity setting. This changes how much signal loss is needed before the wipers respond strongly.
When studying the system, trace the path of the light and identify every boundary it crosses. Then consider what changes at each boundary when air is replaced by water. That approach explains both the normal operation and the common sources of error.
Key Facts
- An infrared LED sends invisible light into the windshield at an angle.
- A photodiode measures the amount of infrared light that returns to the sensor.
- Dry windshield: strong internal reflection sends more light back to the photodiode.
- Wet windshield: water changes the boundary, causing light to scatter or leave the glass.
- Less return signal means more rain is detected, so the wiper speed increases.
- Sensor response can be modeled as signal loss: percent loss = ((dry signal - wet signal) / dry signal) x 100%.
Vocabulary
- Infrared light
- Infrared light is electromagnetic radiation with wavelengths longer than visible red light, so people cannot see it.
- Photodiode
- A photodiode is an electronic sensor that produces an electrical signal when light hits it.
- Reflection
- Reflection is the bouncing of light off a surface or boundary.
- Refraction
- Refraction is the bending of light when it moves between materials where it travels at different speeds.
- Control module
- A control module is a small computer that reads sensor signals and sends commands to a device such as a wiper motor.
Common Mistakes to Avoid
- Thinking the sensor sees raindrops like a camera, which is wrong because most automatic wipers measure changes in reflected infrared light rather than forming an image.
- Assuming more returned light means heavier rain, which is wrong because water usually reduces the return signal by scattering light away from the photodiode.
- Forgetting that the sensor is inside the car, which is wrong because the system can detect rain through the windshield without needing electronics exposed to the weather.
- Treating wiper speed as directly equal to rainfall depth, which is wrong because the control module uses signal changes, timing, and programmed thresholds to choose a wiper setting.
Practice Questions
- 1 A dry windshield gives a sensor signal of 4.0 V. During rain the signal drops to 2.8 V. What is the percent signal loss?
- 2 A rain sensor checks the photodiode signal 20 times per second. How many measurements does it make in 3 minutes?
- 3 Explain why a thin film of water on the windshield can make the sensor report rain even if individual drops are hard to see.
