A gravity-flush toilet is a simple machine that uses stored water, air pressure, and pipe shape to move waste safely into the sewer line. The tank stores potential energy because its water level is higher than the bowl. When the handle is pushed, that stored water quickly flows downward and creates the fast motion needed for a clean flush.
Understanding this system shows how engineering can solve an everyday problem with very few moving parts.

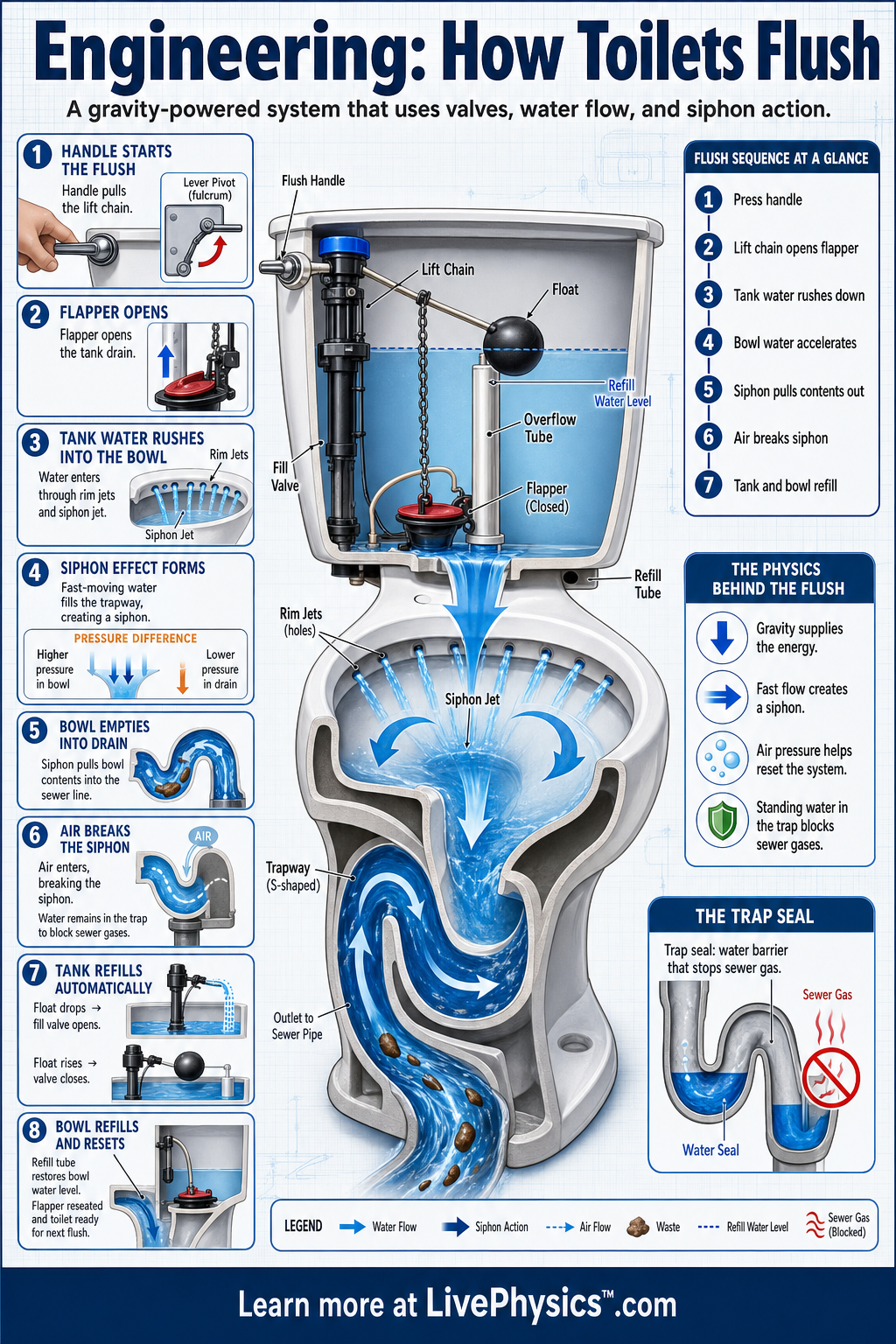

The main trick is the siphon trap, an S-shaped path molded into the toilet bowl. During a flush, water from the tank enters the bowl fast enough to fill the trap and start a siphon, which pulls bowl water and waste over the bend and into the drainpipe. After the tank empties, the siphon breaks when air enters the trap, leaving a small amount of water behind as a seal against sewer gases.
The refill valve then restores water in both the tank and bowl for the next flush.
Understanding How Toilets Flush
The handle does not directly push water through the toilet. It lifts a chain connected to a rubber flapper or a canister valve at the base of the tank. Once this valve opens, the water has a wide path out of the tank.
The valve usually stays open because the moving water and the valve's shape keep it floating or lifted for a short time. This timing matters. A valve that closes too early gives a weak flush.
One that stays open too long wastes water. Engineers choose the tank volume, outlet size, and valve design so enough water arrives in a few seconds.
Water enters the bowl through small rim holes and often through a larger jet near the bottom of the bowl. The rim holes wash the bowl surface. The larger jet directs water into the trapway and helps create the rapid flow needed to clear it.
These two jobs are different. A toilet may rinse the bowl well but still have poor waste removal if its jet flow is weak.
Mineral deposits can clog rim holes over time, especially in areas with hard water. This can make a flush look uneven or leave parts of the bowl unwashed.
Air has an important job in the plumbing system. Drain pipes need a vent that connects upward to open air, usually through the roof. As water moves down a pipe, it can pull or push air with it.
Without a vent, pressure changes could remove water from nearby traps or slow the flow. The trapped water in sinks, showers, and toilets is not just leftover water. It is a barrier between the building and the sewer.
If a bathroom has sewer smells, a dry trap, a blocked vent, or a damaged seal may be the cause. This is why plumbing codes specify pipe sizes, slopes, and vent connections.
The refill stage uses a separate control system. A float moves down as the tank empties. It opens the fill valve, which admits fresh water from the supply line.
Part of that water enters the tank. A small refill tube sends part into the overflow pipe so the bowl regains its correct water level. When the float rises to its set height, the fill valve shuts off.
If the flapper does not seal, water slowly leaks from the tank into the bowl and the fill valve runs again from time to time. Students can spot this with food coloring placed in the tank. Color appearing in the bowl without flushing shows a leak.
Modern toilets show how engineering balances performance with resource use. Older models often used much more water per flush than newer designs. Low flow toilets compensate by shaping the bowl, jets, trapway, and valve to use water more effectively.
Dual flush models release a smaller amount for liquid waste and a larger amount for solid waste. When studying this system, pay attention to the difference between pressure in a supply pipe and gravity driven flow from a tank. Notice too that reliable design depends on seals, air paths, water speed, and carefully chosen shapes rather than on many complicated parts.
Key Facts
- Gravitational potential energy in the tank is E = mgh, where h is the height of the water above the bowl outlet.
- Water pressure from a tank increases with depth: P = rho g h.
- The flush valve opens a large hole at the bottom of the tank so water can rush into the bowl quickly.
- A siphon starts when the trapway fills with moving water and pressure differences help pull water over the trap bend.
- Flow rate is Q = V/t, where Q is volume per time, V is volume of water, and t is flush time.
- The water left in the bowl after a flush forms a trap seal that blocks sewer gases from entering the room.
Vocabulary
- Tank
- The tank is the upper reservoir that stores water before a flush.
- Flush valve
- The flush valve is the opening at the bottom of the tank that releases water into the bowl.
- Flapper
- The flapper is a hinged rubber seal that lifts during a flush and then closes the flush valve.
- Siphon trap
- The siphon trap is the curved passage in the toilet that pulls bowl water into the drain when filled and flowing.
- Refill valve
- The refill valve is the mechanism that lets fresh water back into the tank and bowl after a flush.
Common Mistakes to Avoid
- Thinking the handle pushes waste directly down the pipe is wrong because the handle only lifts the flapper and starts water flow from the tank.
- Ignoring the siphon trap is wrong because the curved trapway is what creates the strong pulling action that empties the bowl.
- Assuming more tank water always means a better flush is wrong because bowl shape, trapway size, and flow speed also control flushing performance.
- Forgetting the water seal after the flush is wrong because that remaining bowl water is necessary to block sewer gases from coming back indoors.
Practice Questions
- 1 A toilet tank releases 6.0 L of water in 3.0 s. What is the average flow rate in L/s?
- 2 A tank holds 5.0 kg of water with its center of mass 0.45 m above the bowl inlet. Using g = 9.8 m/s^2, calculate the gravitational potential energy available.
- 3 Explain why a toilet bowl does not empty completely after a normal flush, even though the siphon pulls most of the water into the drain.
